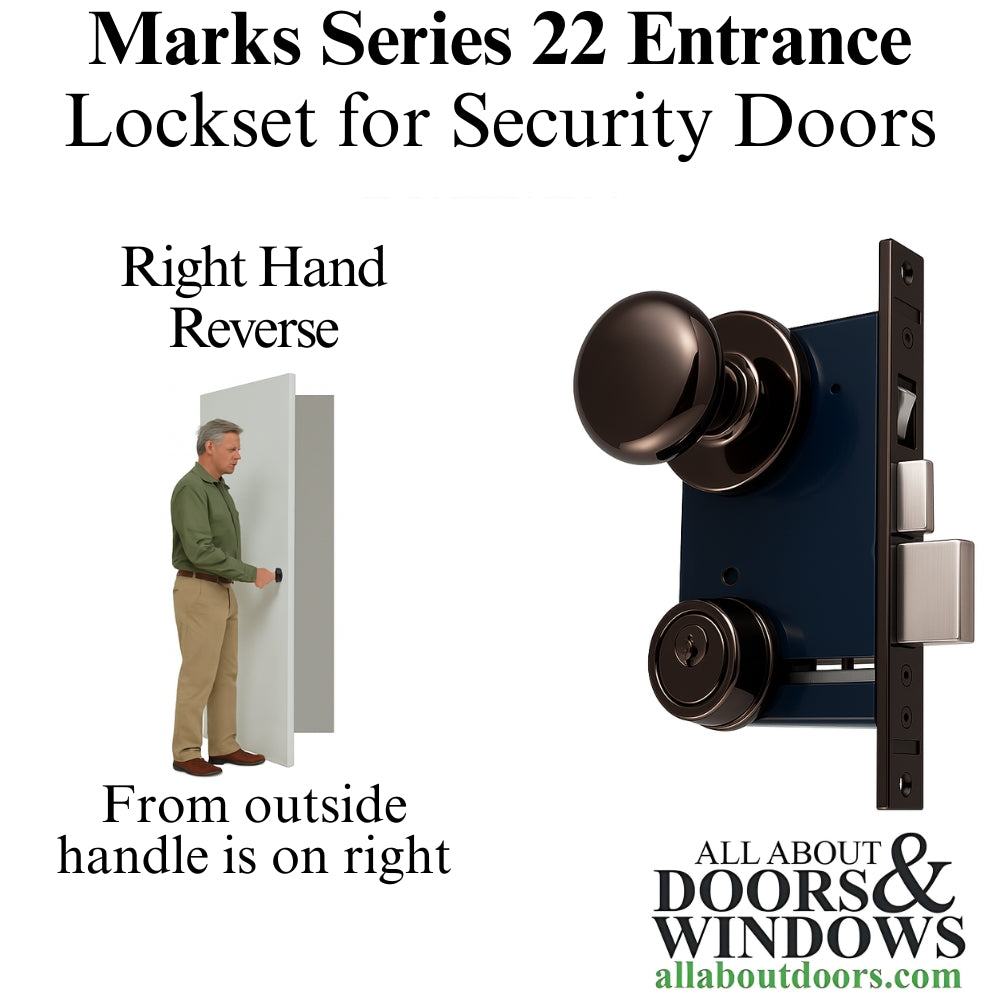

Blemished Oil Rubbed Bronze Marks Series 22 Entrance Lockset - 1" x 7-1/8" Lock Face - Right Hand Reverse

Part Number: 301077-175-ORB-BLEM-MC1RS Price: $94.99
BLEMISHED ITEM: - Missing Cylinder / Missing 1 Plastic Ring / Scuffs

This item is considered blemished and may include but is not limited to slight scuffs, scratches and/or missing components such as screws.
Blemished items are priced accordingly and are sold as is.
No returns, refunds or exchanges.

Marks 22 Series ornamental iron door mortise lock set.
Used primarily with steel security doors.

Important Keyway Information:
1 inch thick door option comes with a Marks "A" Keyway (Kwikset KW1)
1-¾ inch thick door option comes with a Marks "C" Keyway (Schlage SC1)

Faceplate: 1 inch x 7-1/8 inch
Blue Lock Box: 5-1/2 inch x 3-3/8 inch.
Backset: 2-1/2 inches (from faceplate to center of holes for lock or handles).
Spindle: 1/4 inch (7 mm) Square
Door Thickness: standard for 1" doors; 1-3/4" optional (may take 4-8 weeks special order)
Locks: Double Cylinder Mortise lock with 2 keys (keyed on both sides)
Handles: Round inside and outside knobs.
Colors/Finishes: Polished Brass, Satin Chrome, Antique Brass, Oil-Rubbed Bronze
Handing: Right hand reverse (if key is below handle, handleset is on the right side of the door when viewed from outside the house)

Handing Information:
The key can be installed ABOVE or BELOW the handle on OUTSWING security doors.
When the lock is inverted, it changes the locking function.
Please see images for a visual reference.

Key Below:
Viewed from outside, hinges on the left, handle on the right = right hand reverse (RHR)
Viewed from outside, hinges on the right, handle on the left = left hand reverse (LHR) - see 301078

Key Above:
Viewed from outside, hinges on the left, handle on the right = left hand reverse (LHR) - see 301078
Viewed from outside, hinges on the right, handle on the left = right hand reverse (RHR)

Handing CAN be changed, but it is easier to order correctly.

Note: Door can be opened from both sides when deadbolt is not engaged, except when stop-button on face of lock is engaged. Then door can only be opened from inside but is locked from outside and can only be opened with a key. Deadbolt can be engaged or disengaged with key from either side. The deadbolt deadlocks the latch.

Please see additional pictures for more information.
Priced and sold each.

Resources:
How to change a right handed reverse lock to a left handed reverse lock (and vice versa)
