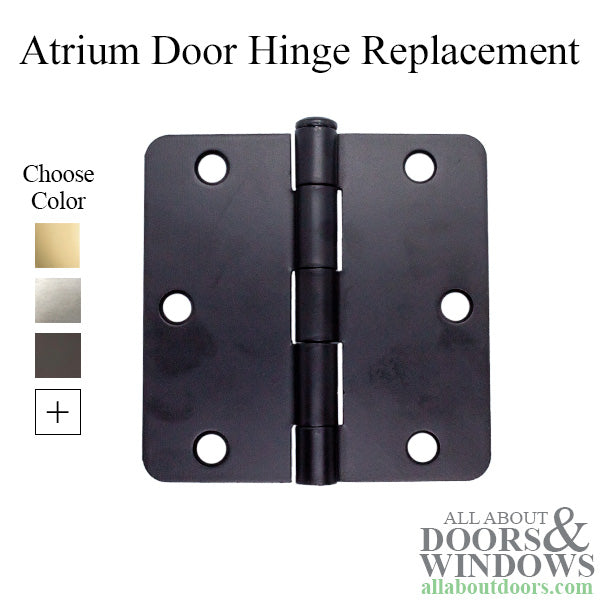

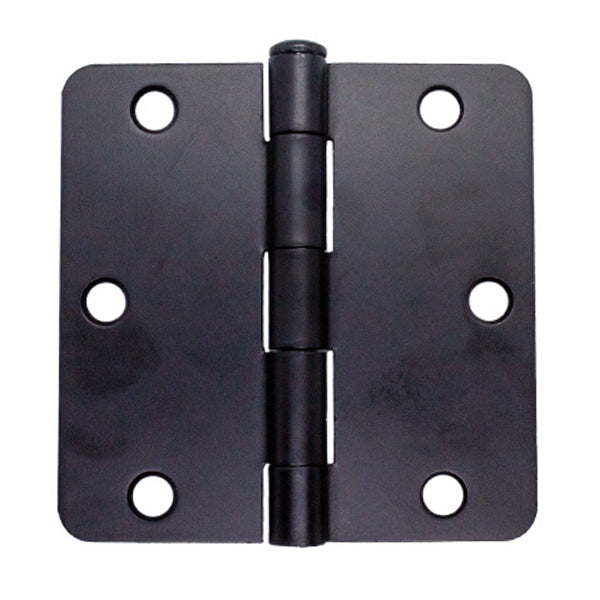

Atrium Door Hinge 3.5 x 3.5 inch, 1/4 Radius Corners, Residential, Steel

Part Number: 363207-BC Price: $9.61
COLOR: - Brushed Chrome

Replaces Atrium Brand door hinge;
Size: 3.5 x 3.5
Material: steel base
Hinge Type: Plain Bearing
Color/ Finish: Polished Brass finish

Corner: 1/4 radius corner, includes screws.
Note: The knuckle and pin are smaller than the original, but works well.
Note For Thicker, Heavy Duty Hinge See:

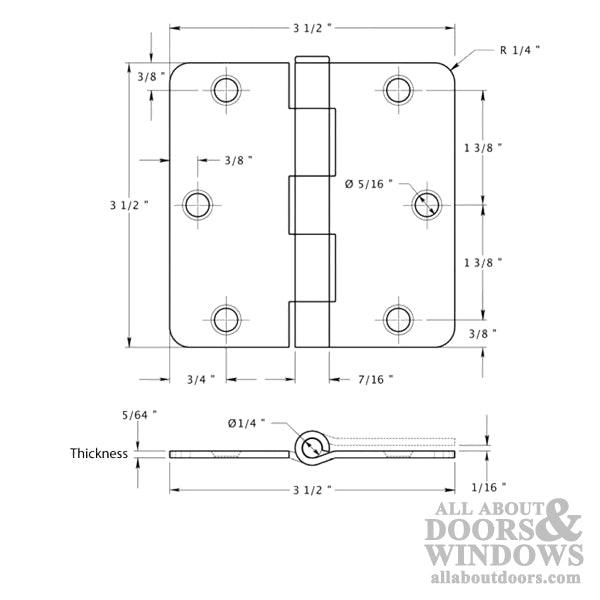

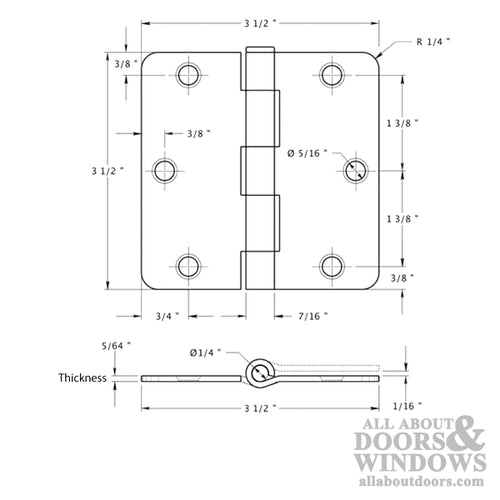

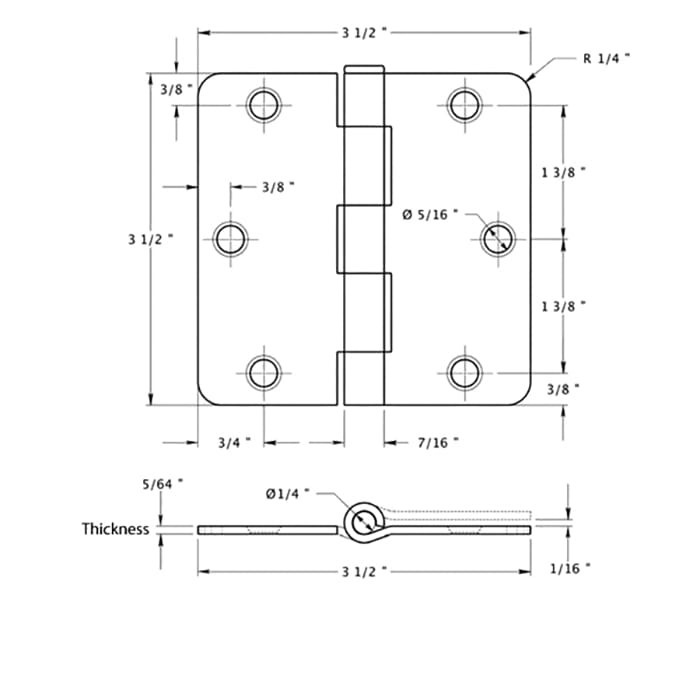

1/4 Radius Residential Hinge 3-1/2 X 3-1/2 inch
Size - 3-1/2 X 3-1/2 inch (89mm x 89mm)
Base Metal - Steel
Hinge Corners - 1/4 Radius
Thickness - 0.085 inch - approximately 5/64 inch
Note: For a Thicker, Heavy Duty Hinge see 363210-PB

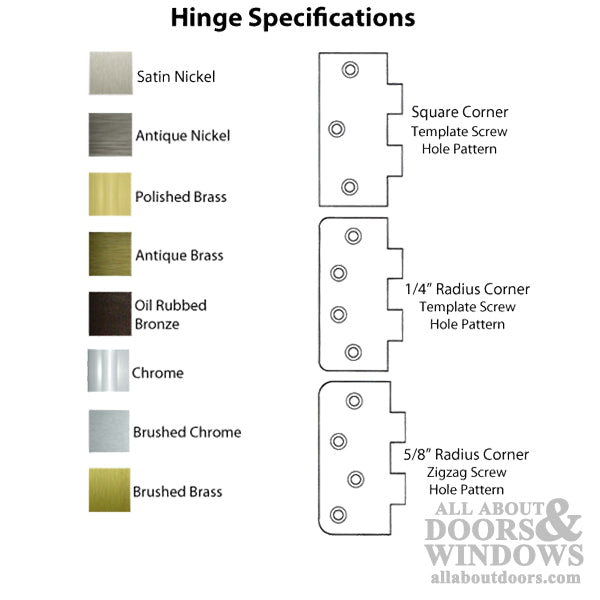

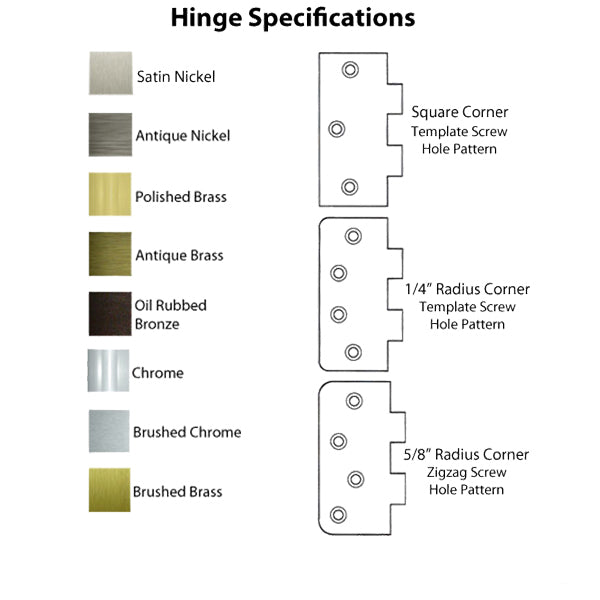

Available Colors:
Antique Brass
Polished Brass
Oil Rubbed Bronze
Brushed/Satin Nickel
Polished Chrome
Brushed/Satin Chrome

Priced and sold as a pair
