Andersen Multipoint Lock for A-Series Hinged Doors, 79-5/16", 2008-Present
Part Number: 9014688 Price: $221.11A-Series Hinged, Inswing & Outswing, Door Active Panel 3-Point Lock Mechanism 9014688
Active Lock Mechanism FWHID611 Unit Number (2008 to present)

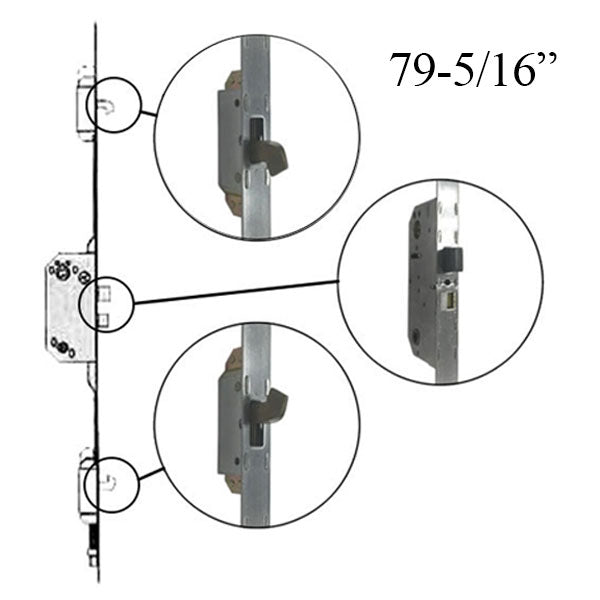

Andersen® lock mechanism for A-Series Hinged Patio Doors
Manufactured for doors from 2008 to present
For door unit number FWHID611 - lock is 79-5/16 inches long

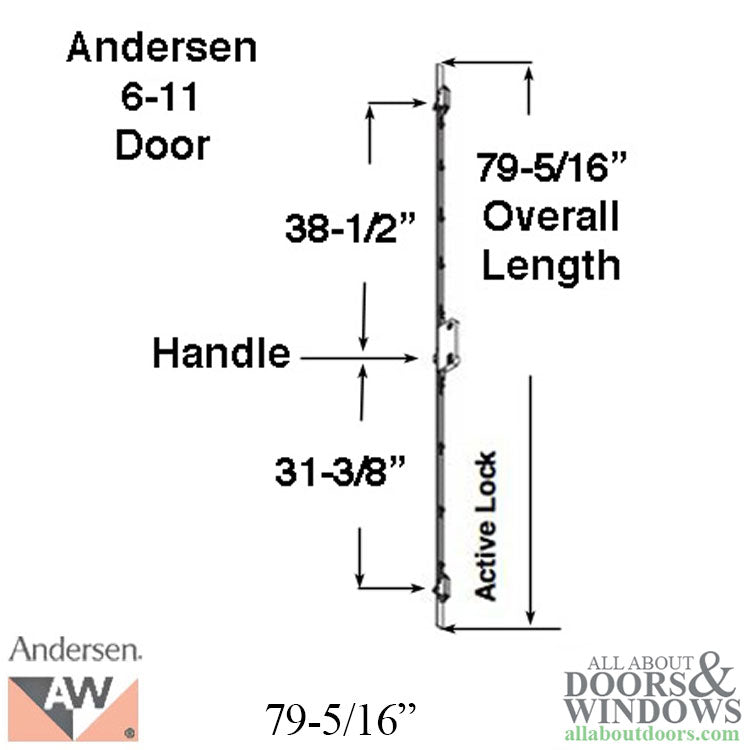

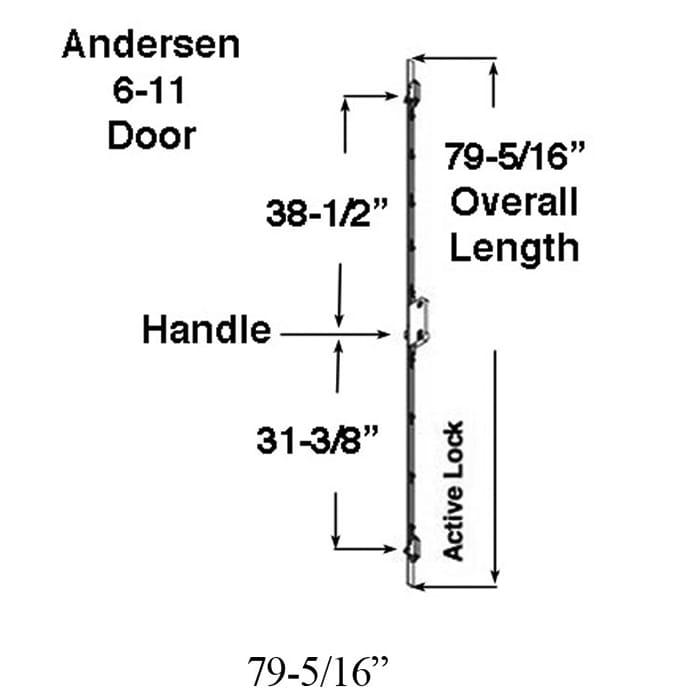

Faceplate Length: 79-5/16 Inches
Faceplate Width: 7/8 Inch.
Backset: 2 inch
Center of handle to center of Lock: 4-1/8
Handle Height: 36-1/8 inch
Bottom Hook: 31-3/8 Inches (center of Handle to center of hook)
Top Hook: 38-1/2 inches (center of Handle to center of hook)
Related Parts
9014687 - FWHID68, Active Lock Mechanism 3 point
9014688 - FWHID611, Active Lock Mechanism 3 point
9014689 - FWHID80, Active Lock Mechanism 3 point
2579777 - FWHID68, Passive Lock Mechanism, Shootbolts
2579778 - FWHID611, Passive Lock Mechanism, Shootbolts
2579779 - FWHID80, Passive Lock Mechanism, Shootbolts
