A-Series Hinged, Inswing & Outswing, Door Active Panel 3-Point Lock Mechanism 9014687

Active Lock Mechanism FWHID68 or FWHOD68 Unit Number (2008 to present)

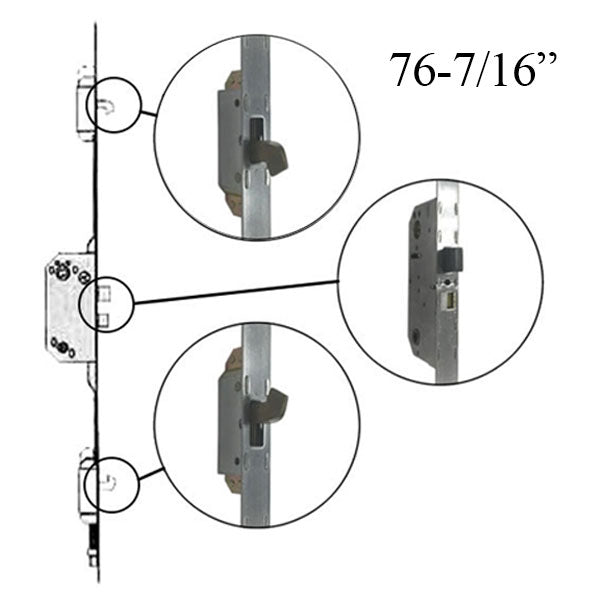

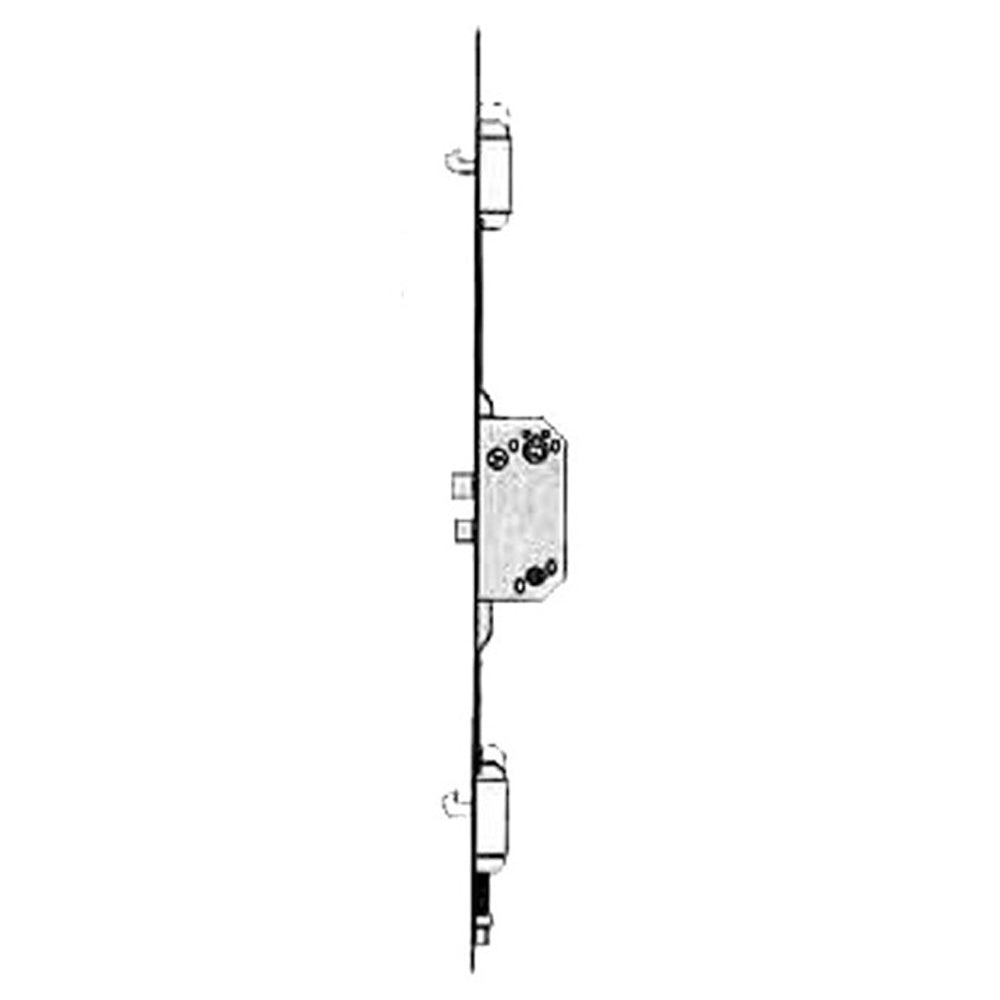

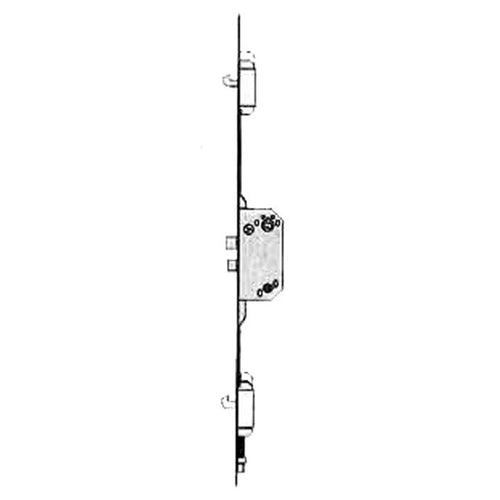

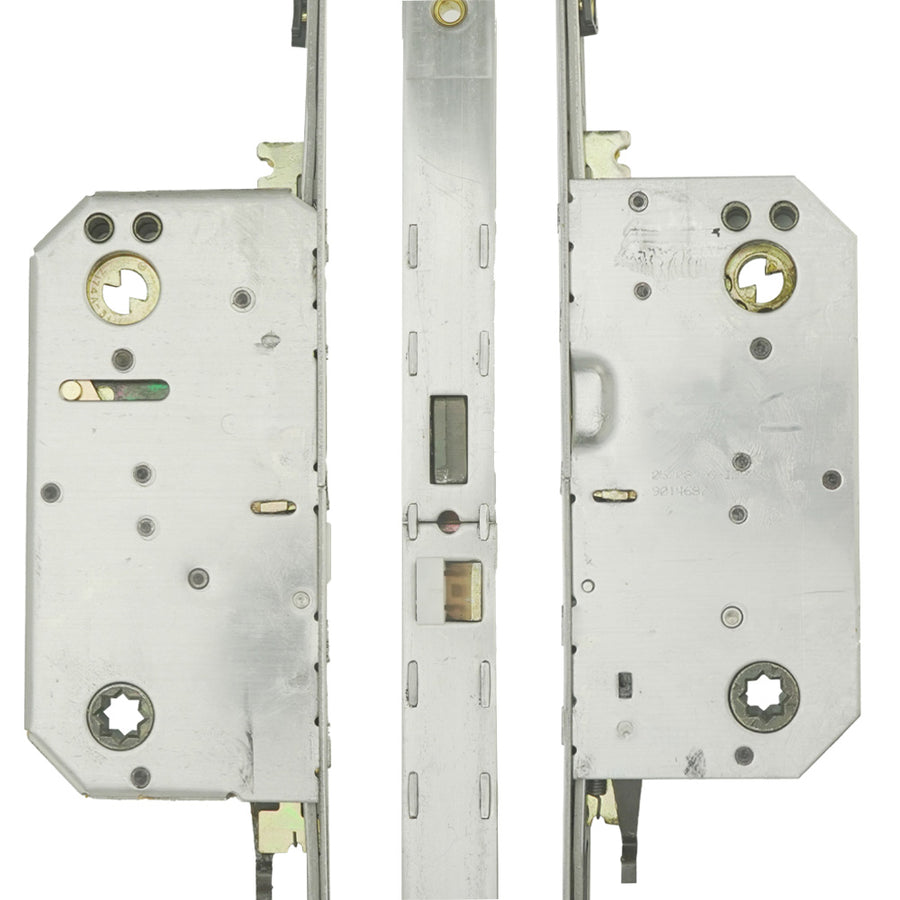

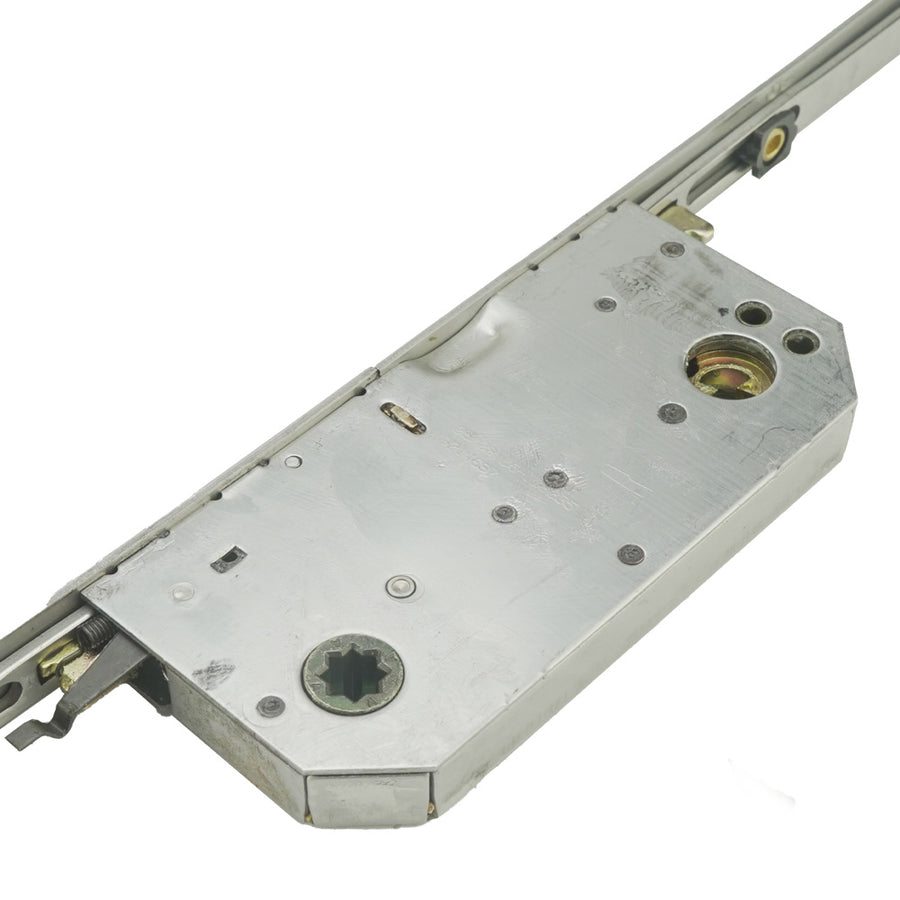

Andersen® lock mechanism for A-Series Hinged Patio Doors
Manufactured for doors from 2008 to present

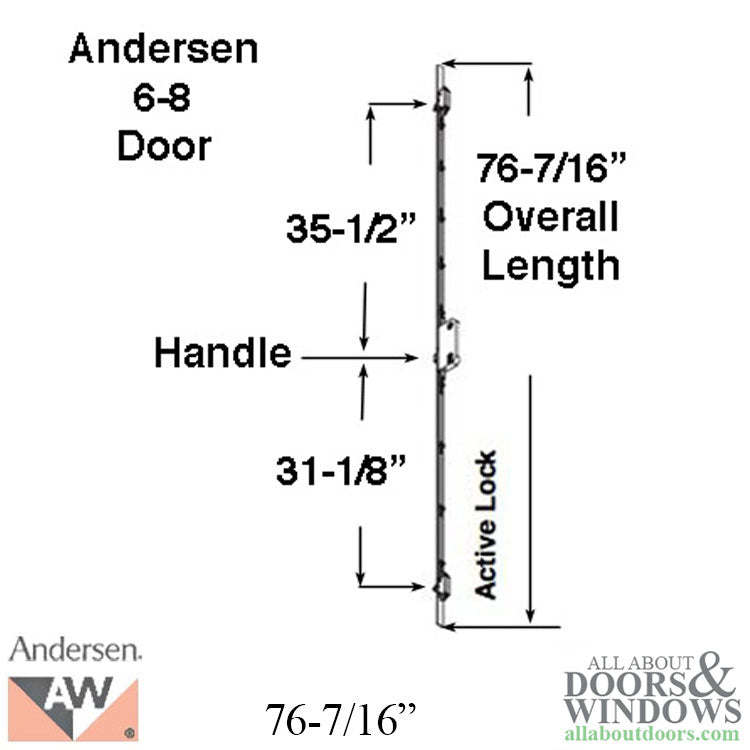

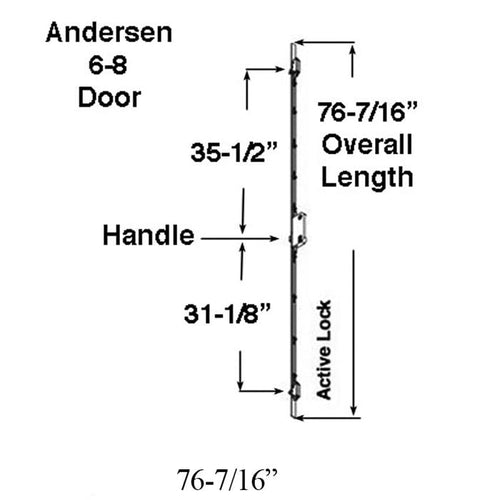

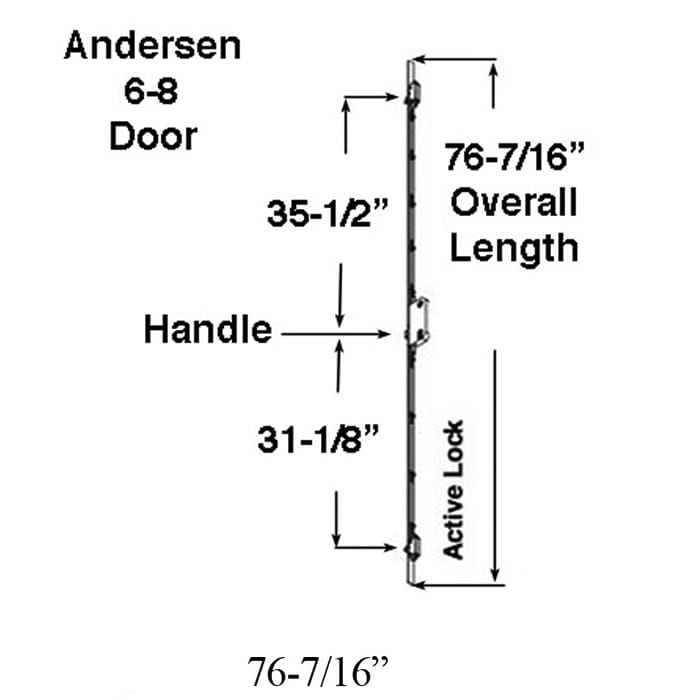

For door unit number FWHID68 / FWHOD68 - lock is 76 7/16 inches long

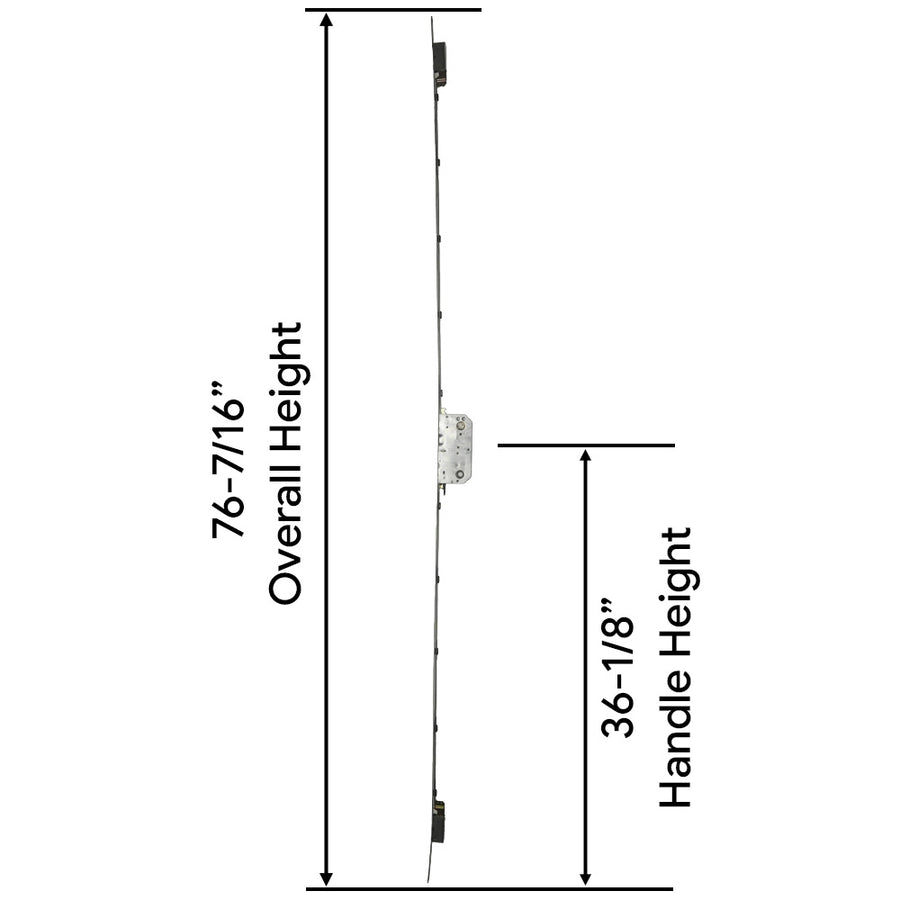

Overall Length: 76-7/16 Inches
Faceplate Width: 7/8 Inch, Stainless Steel
Backset: 2 inch (50mm)
Center of handle to center of lock: 4-3/16 inch
Center of Deadbolt to Center of Spring latch: 1-3/8 inch
Handle Height: 36-1/8 inch

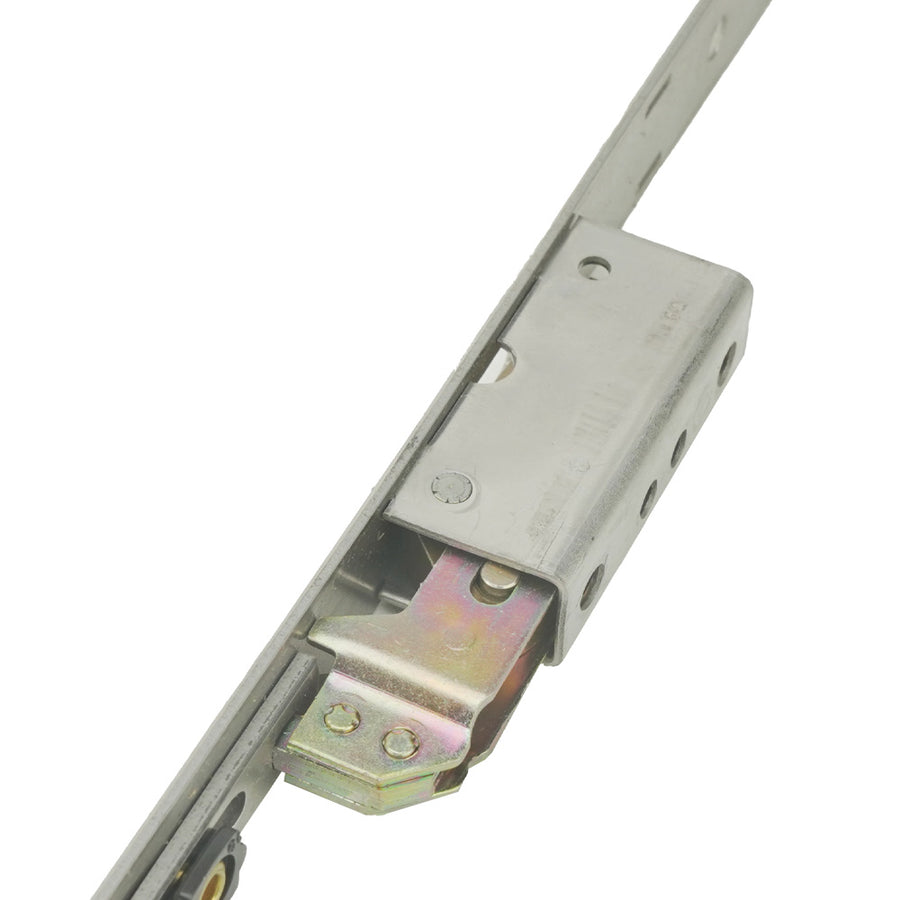

Bottom Hook: 31-1/8 Inches (center of Handle to center of hook).
Top Hook:  35-1/2 inches (center of Handle to center of hook).

Related Parts
9014687 - FWHID68, Active Lock Mechanism 3 point
9014688 - FWHID611, Active Lock Mechanism 3 point
9014689 - FWHID80, Active Lock Mechanism 3 point
2579777 - FWHID68, Passive Lock Mechanism, Shootbolts
2579778 - FWHID611, Passive Lock Mechanism, Shootbolts
2579779 - FWHID80, Passive Lock Mechanism, Shootbolts
