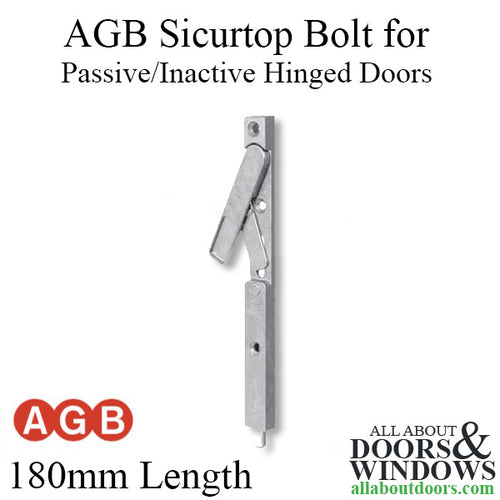

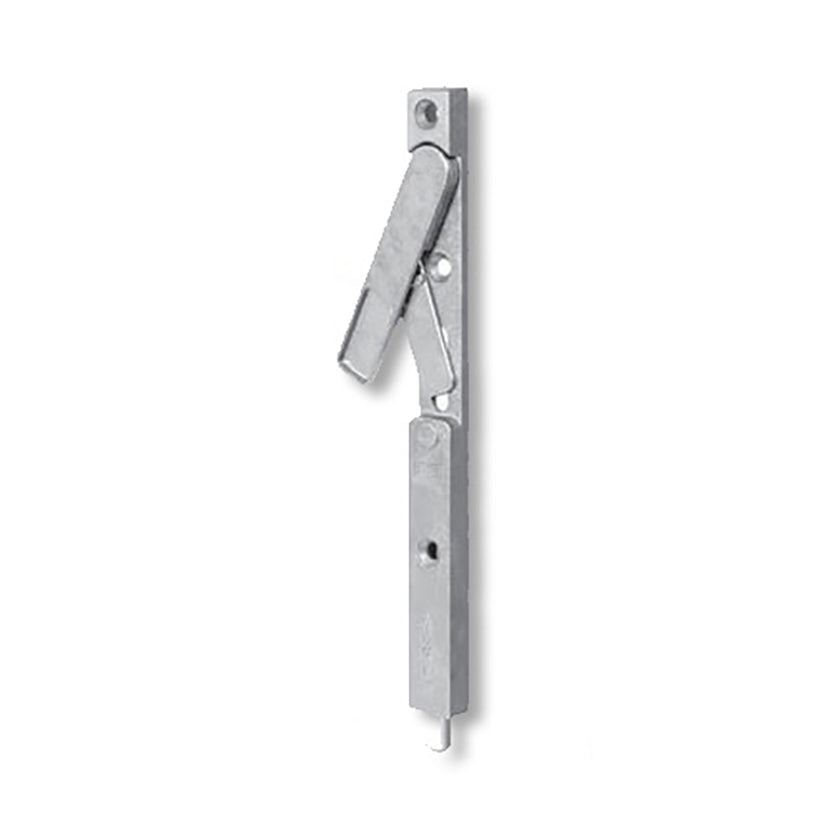

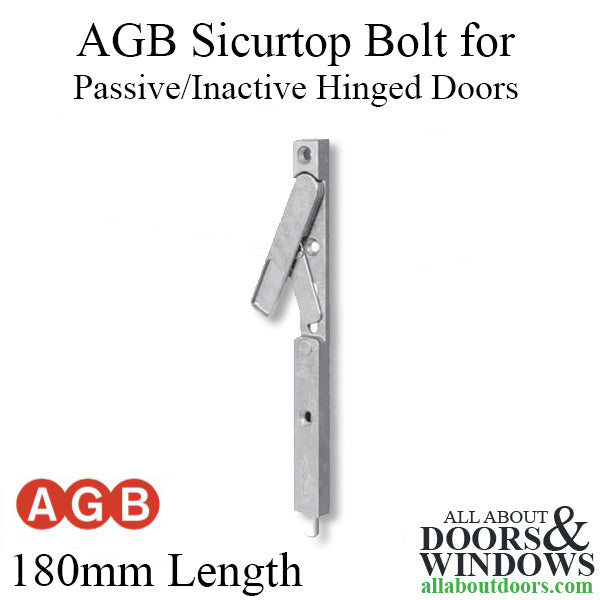

AGB Sicurtop Bolt for Passive or Inactive hinged doors, 180mm Length, 4mm gap

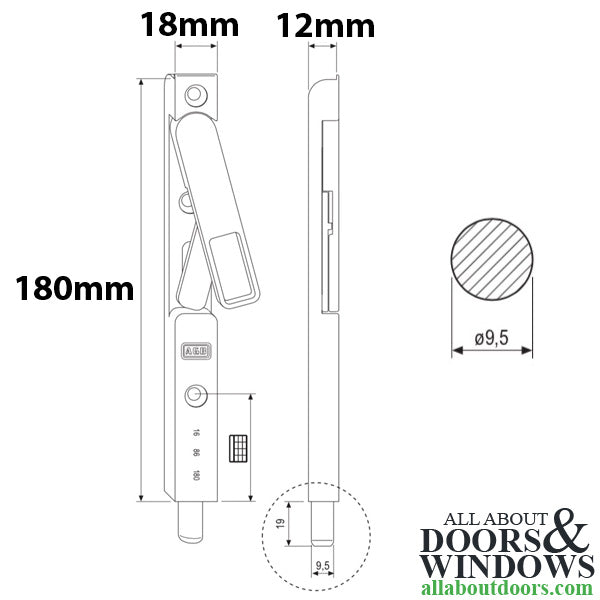

Part Number: W01691.01.01 Price: $63.44Upper and lower bolts with 9.5mm diameter push rod and 19mm throw, for 4mm timber profiles.

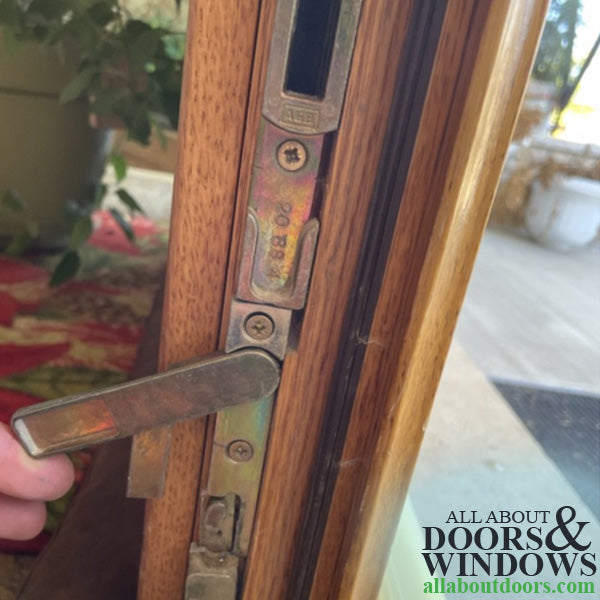

Used in combination with Sicurtop locks and suitable for double-sash entrance doors. They are used to secure the semi-stationary sash to the floor (180 mm bolt) and to the head jamb (180, 300 and 400 mm).
Fastening:
Use three, four or five 4.5x30 mm screws respectively for each size (180, 300 and 400 mm).
Note: Use jig art A20030.01.32 to execute the milling for the 180 mm bolt.
Used in combination with Sicurtop locks and suitable for double-sash entrance doors. They are used to secure the semi-stationary sash to the floor (180 mm bolt) and to the head jamb (180, 300 and 400 mm).
Fastening:
Use three, four or five 4.5x30 mm screws respectively for each size (180, 300 and 400 mm).
Note: Use jig art A20030.01.32 to execute the milling for the 180 mm bolt.
