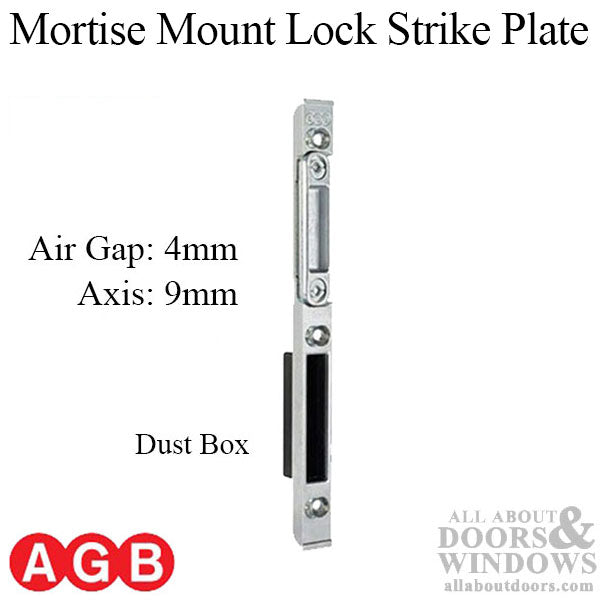

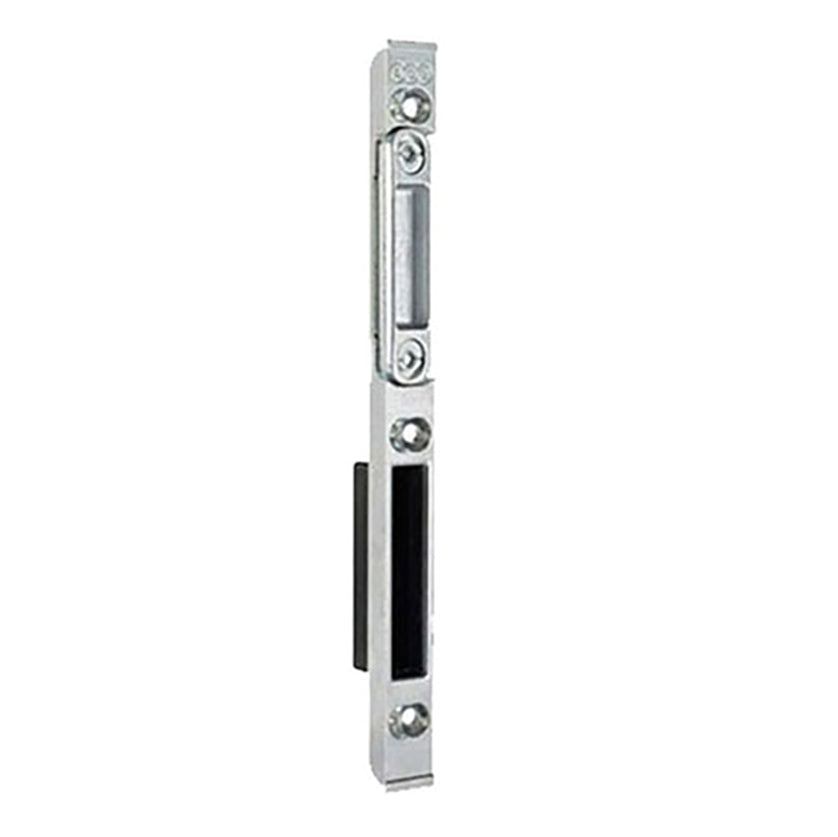

AGB Mortise Mount Lock Strike Plate w/ Dust box

Part Number: W11692.01.01 Price: $35.00

AGB  Non-Handed Surface Mount Lock Strike Plate w/ Dust box

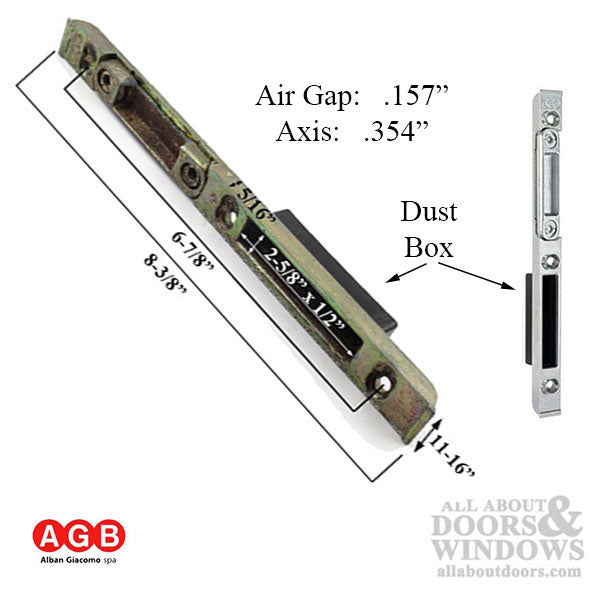

Air Gap:  4mm,  .157 inch
Axis: 9mm, .354 inch
Material: Steel
Color: Silver

Thickness: 5/16 inch (8mm)
Width: 11/16
Length: 8-3/8 inch
Screw holes: 6-7/8 inch
Dust Cover - Black , part number 0 040 9543

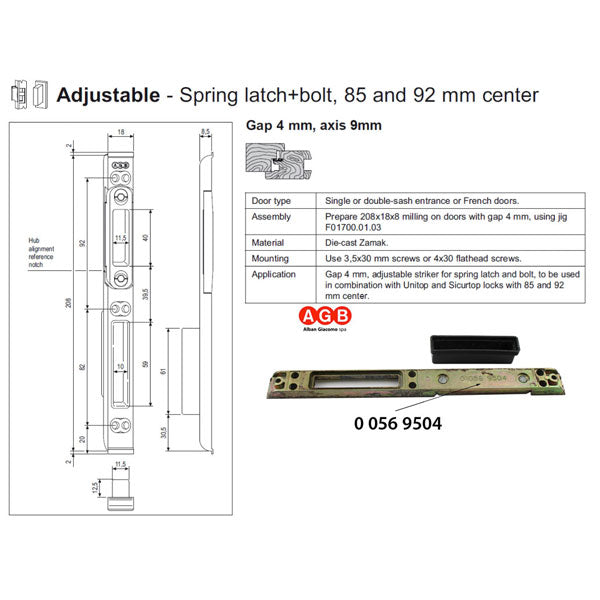

Strike Plate, Part Number: 0 056 9504
The Hex / Allen adjustment screw with allow horizontal strike adjustment

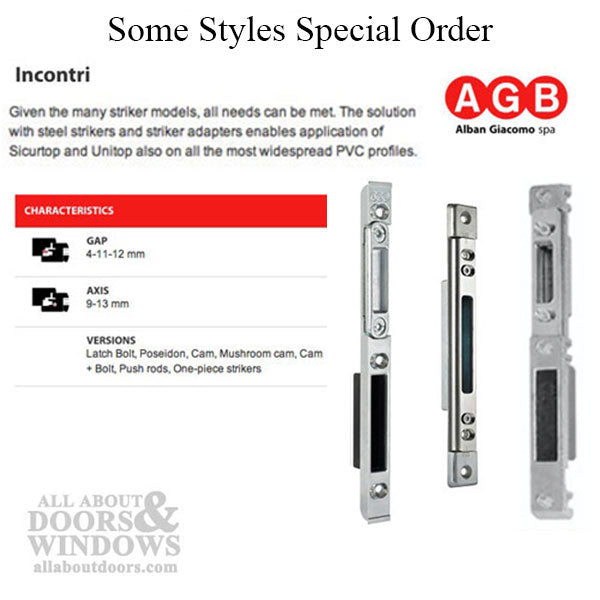

NOTE: other sizes available
Gap: 4 mm
Axis: 9 mm

NOTE:
GAP is the space between the door and the jamb.
AXIS is the depth of the euro grove so you know if a dust box will fit.
