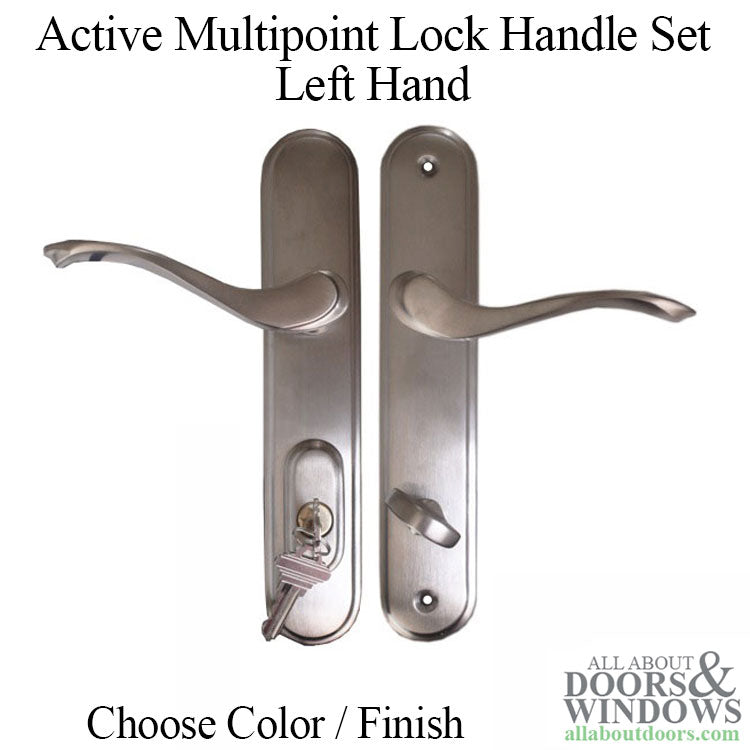

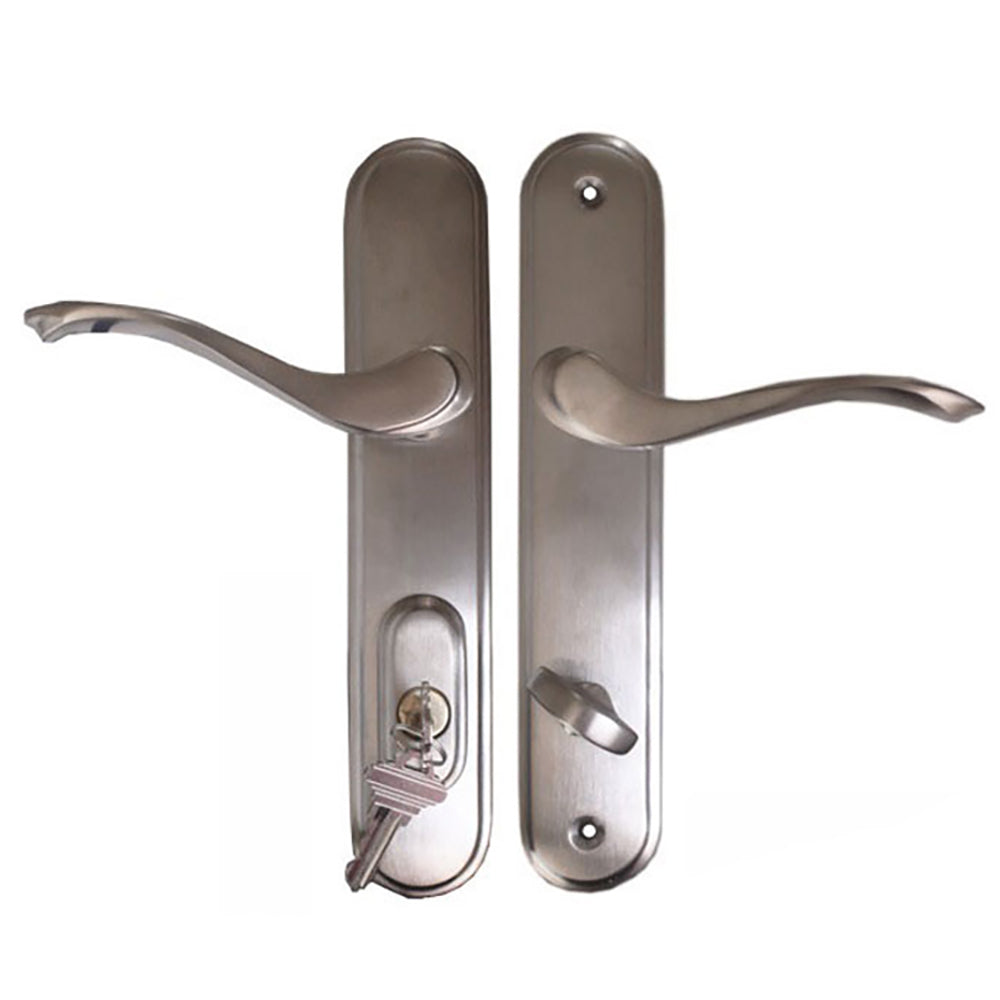

Amesbury keyed Hardware for primary active door with multipoint lock
This Lock Trim replaces Integrity by Marvin Cambridge series, Milgard, G-U / Ferco, and other American version multi-point locks
Application: Primary door, keyed with inside thumb turn, works with most Multipoint Locks
Amesbury 400B Series curved lever with rounded radius top escutcheon plate
Color / Finish: Choose from Drop down box
Base Material: Zinc
Door thickness: 1-3/4 inch

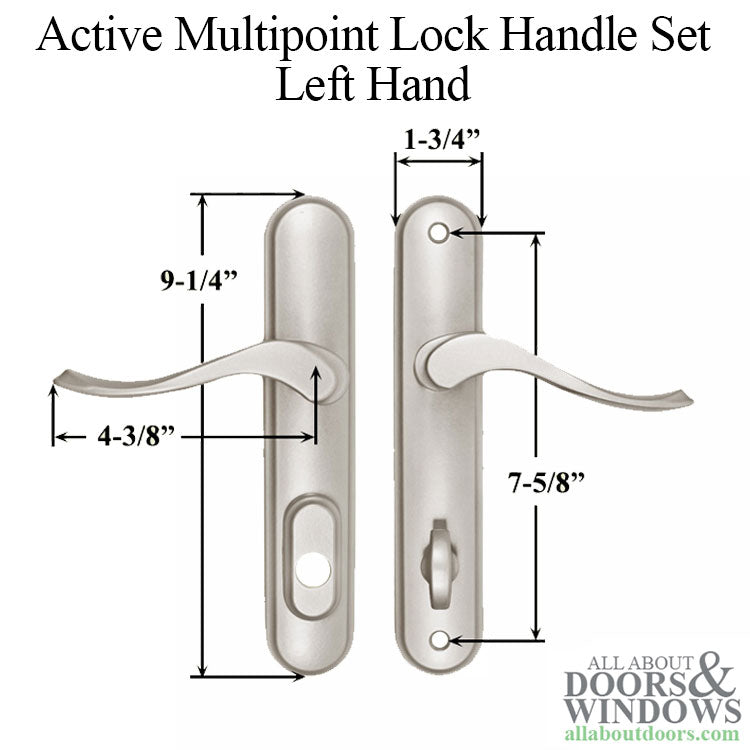

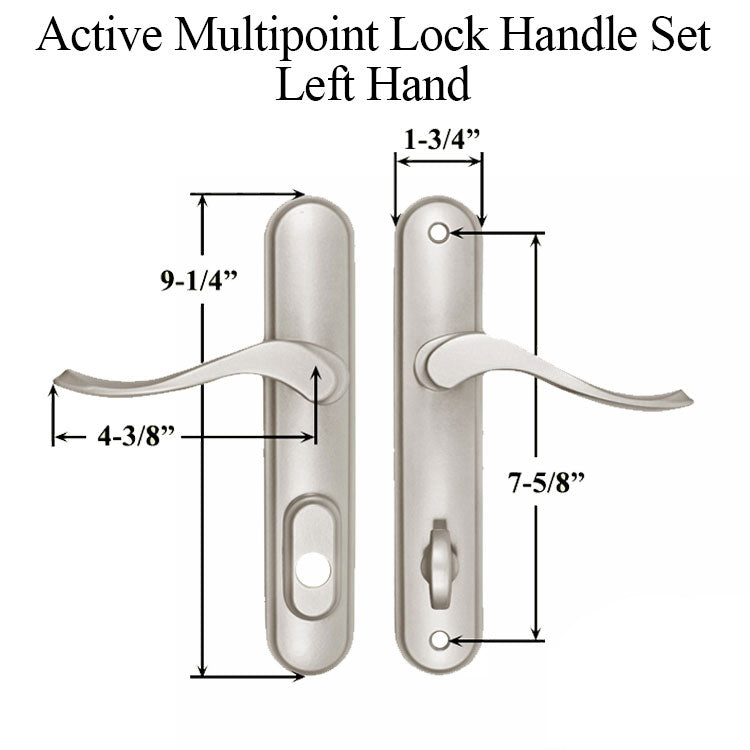

Escutcheon Plate: "B" 1.80" x 9.25"
Escutcheon Plate Screw hole spacing: 7.665 inches

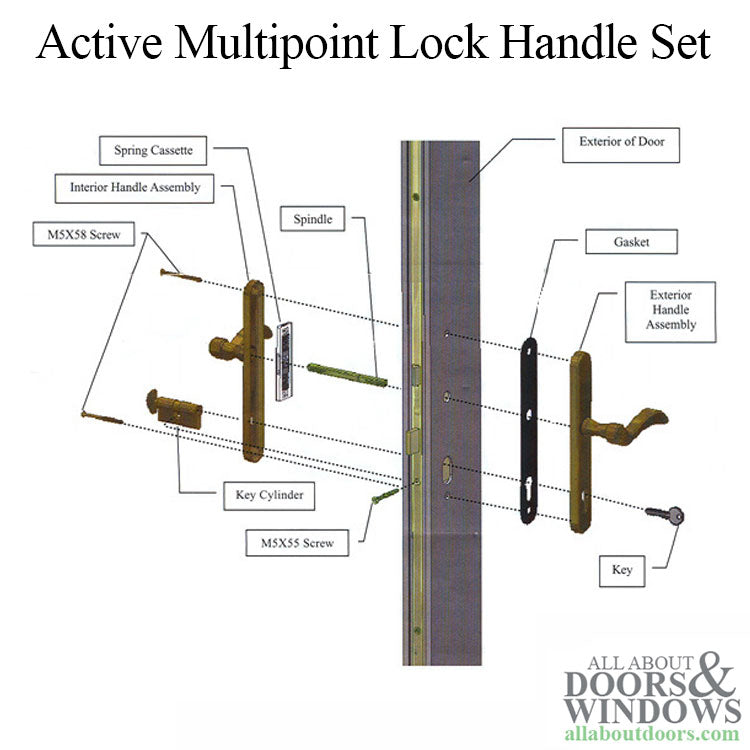

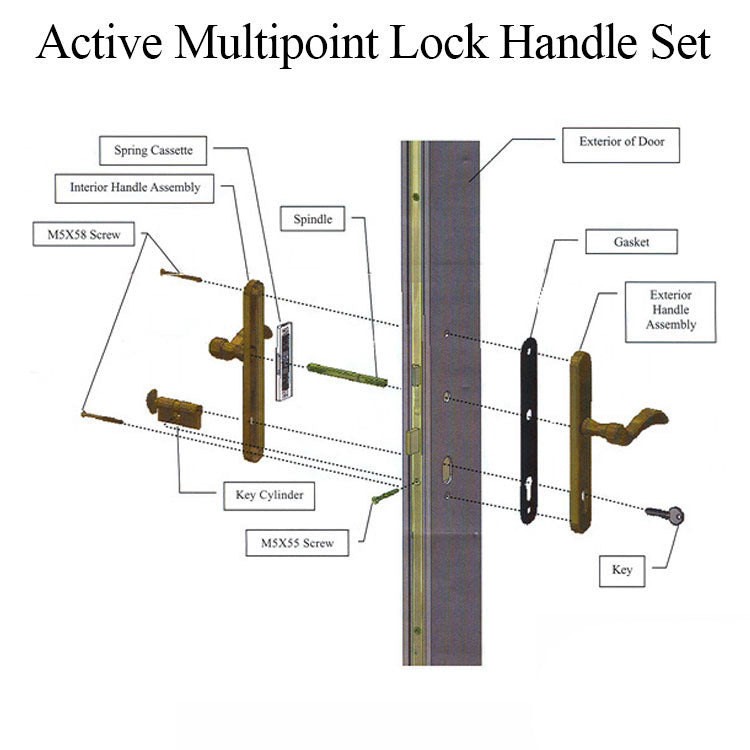

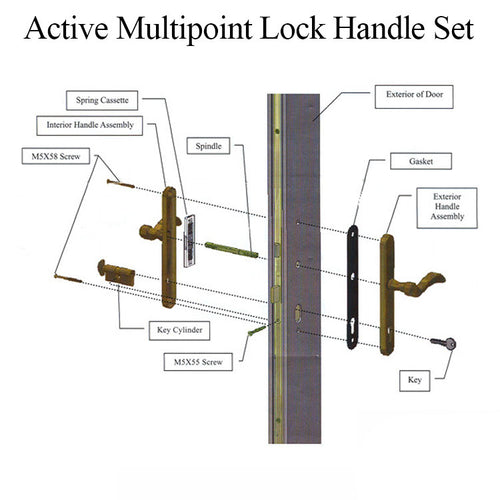

Installation screws: M5 x 58mm
Spindle Diameter: 5/16 inch (8mm) Square
Cylinder to Handle spacing: 3-5/8 inches ( 92mm)
Keyed Cylinder: American 5 pin rekeyable cylinder
Standard Keyway: Schlage 5 pin, SC1
Optional Keyway: Kwikset - Weiser composite keyway
Handed: Yes, But handles can be removed and reattached.
Levers do not have handle set screws. It uses a snap ring to hold handles to the escutcheon plate.
This handle set uses a spring loaded cassette for added lever action.
Available in 3 Functions:
Active: Key cylinder and inside thumb turn
Inactive / Passive: levers move, no key, no inside thumb turn
Dummy: Fixed / rigid levers, no key, no thumb turns
Single Door = 1 Active Keyed
Double French Door = 1 Active Keyed and 1 Inactive or Dummy Set
NOTE:
Some colors / finishes are available with a zinc or forged brass substrate to provide economical and performance options.
Zinc material: Painted Colors, White, Tan, Dark Oil Rubbed Bronze, Polished Brass or Satin Nickel
Brass material: Premium Finishes, Dark Oil Rubbed Bronze , PVD Polished Brass or PVD Satin Nickel
Brass is a better material for coastal areas, PVD is a No Tarnish Finish
