9 Inch Magnum Flush Slide Bolt 1/4" Medium Profile, 5/8" width tip
Part Number: 362032 Price: $14.42Magnum 9 inch flush slide bolt for wood door astragals.

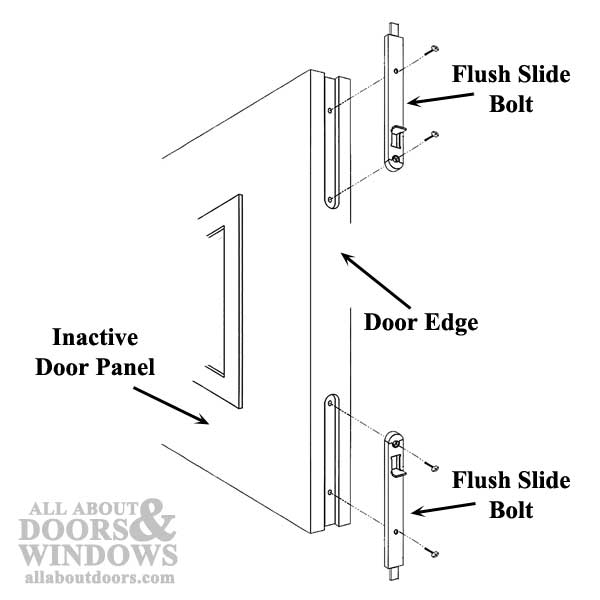

This slide bolt is used primarily with Trilennium multipoint locks.

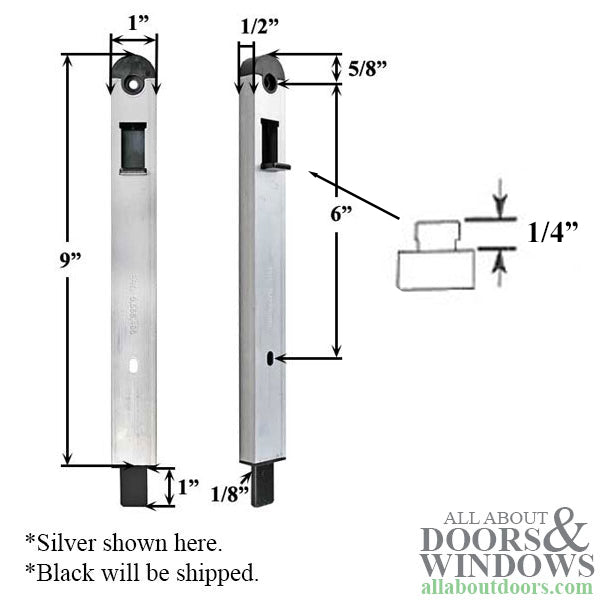

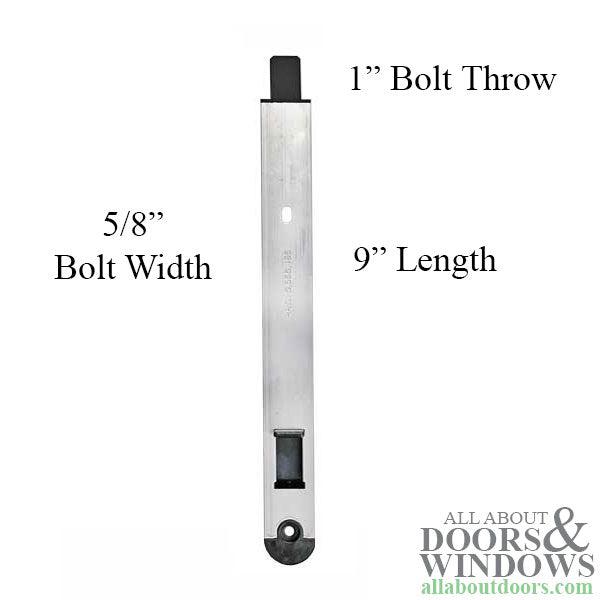

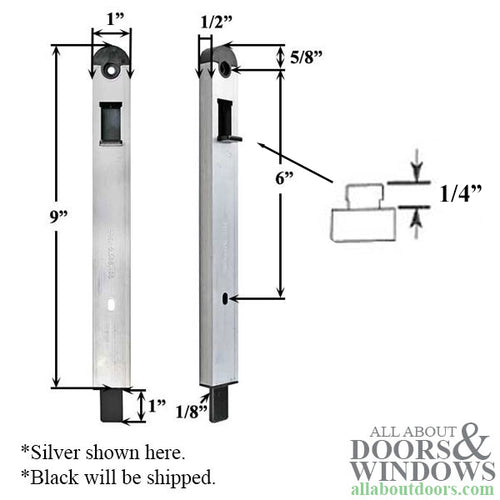

Magnum Bolt Specifications:
Housing length: 9 Inch
Housing thickness: 1/2 Inch
Medium Profile: 1/4"
Bolt throw: 1 Inch
Tip Widths: 5/8"
Bolt thickness: 1/8 Inch
Screw Center: 6 Inch
Top to Screw Center: 5/8 Inch
Contents: 1 Flush Bolt, no screws, no strike plates
This slide bolt is used primarily with Trilennium multipoint locks.
Magnum Bolt Specifications:
Housing length: 9 Inch
Housing thickness: 1/2 Inch
Medium Profile: 1/4"
Bolt throw: 1 Inch
Tip Widths: 5/8"
Bolt thickness: 1/8 Inch
Screw Center: 6 Inch
Top to Screw Center: 5/8 Inch
Contents: 1 Flush Bolt, no screws, no strike plates
