5/8 Inch Spiral Tilt-In Window Balance Rod w/ Blue Bearing

Part Number: 85200-MC15 Price: $9.95
LENGTH OF METAL CHANNEL: - 15

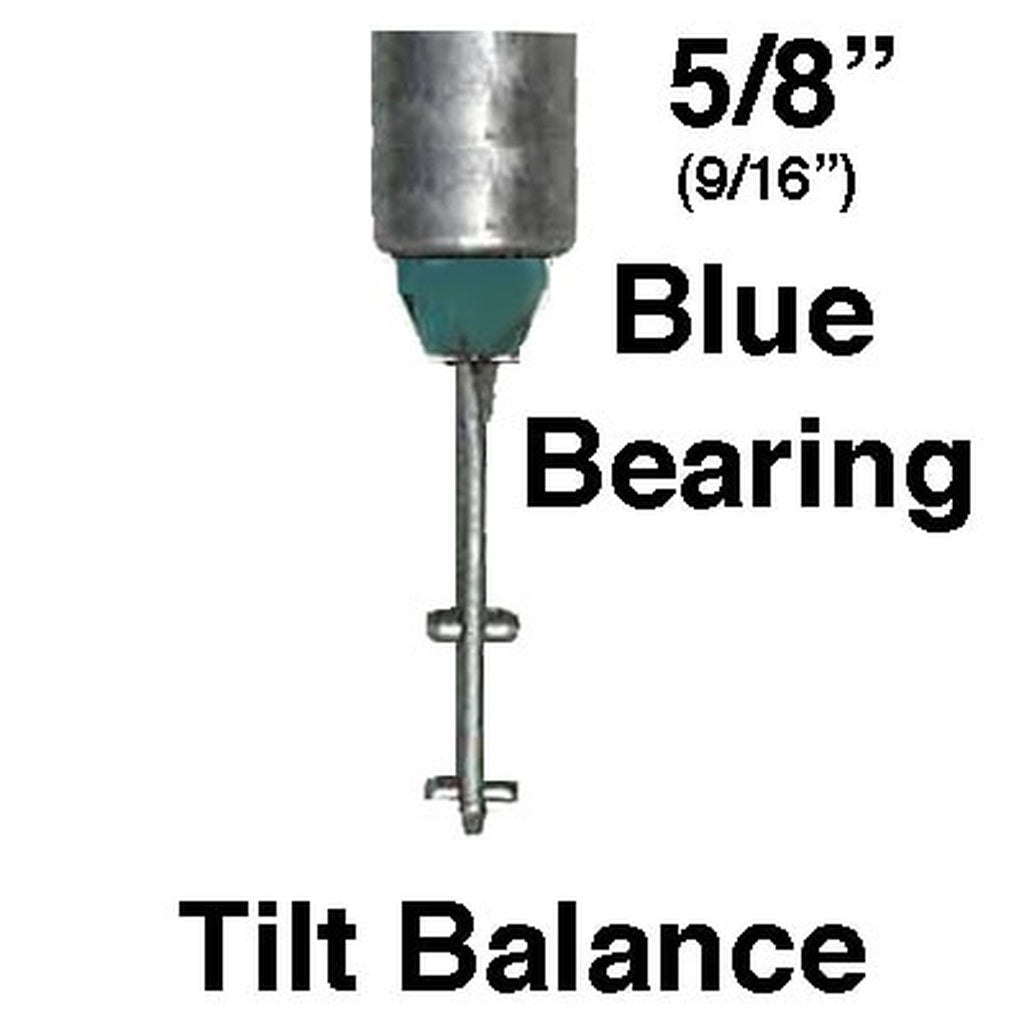

5/8 Inch Tilt-In Spiral Window Balance Rod w/ Blue Bearing

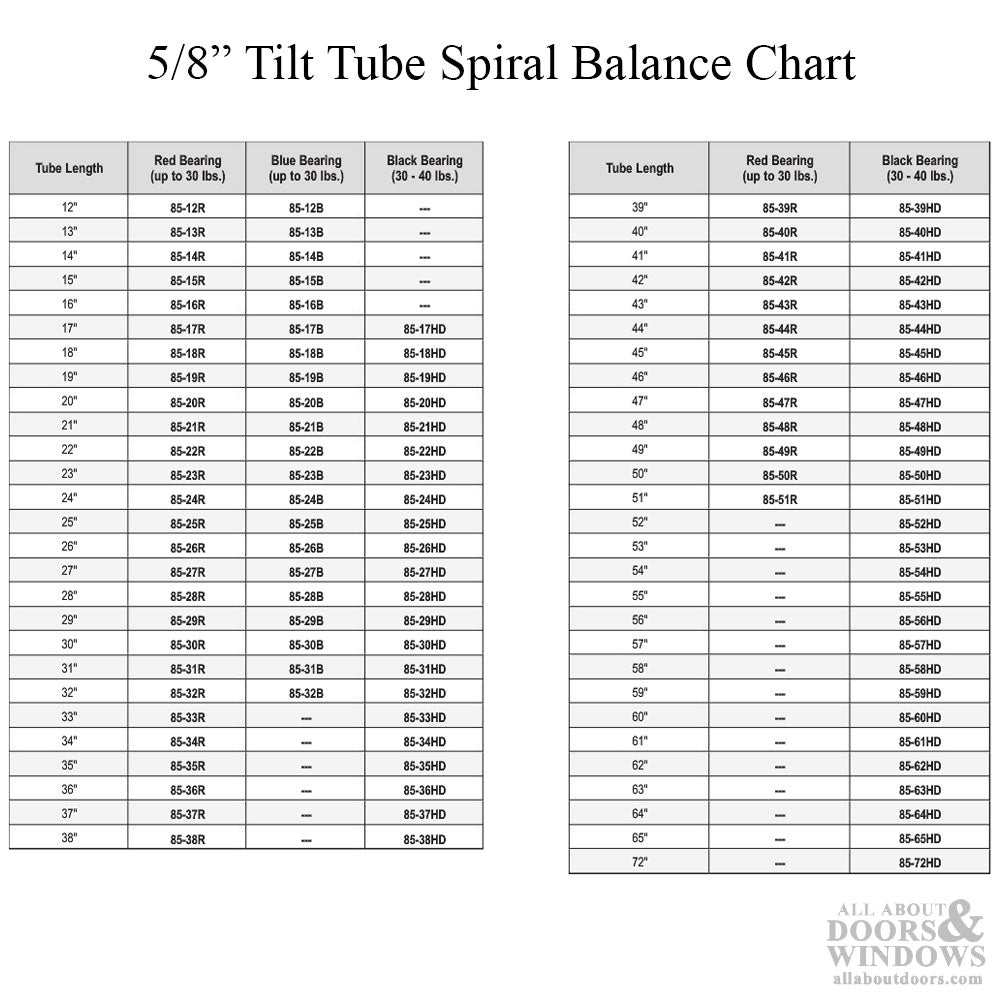

Bearing color denotes rod strength.  Red and Blue Bearings are up to 30 pounds, Black Bearings are 30-40 pounds


Type: Tilt In window

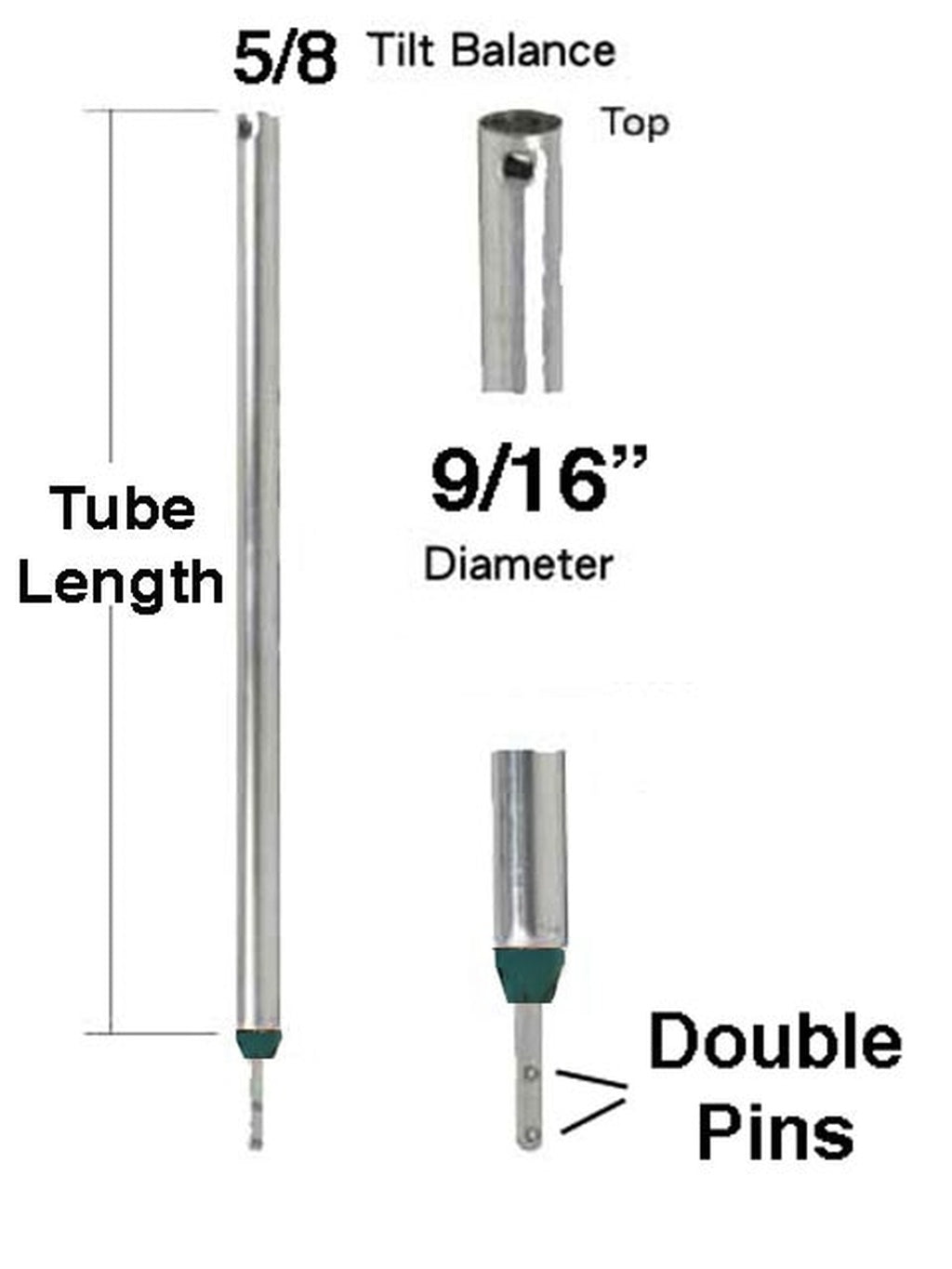

Tube Diameter: 9/16 inch
Bearing Color: BLUE

NOTE: We substitute Red Bearing, if we are out of Blue

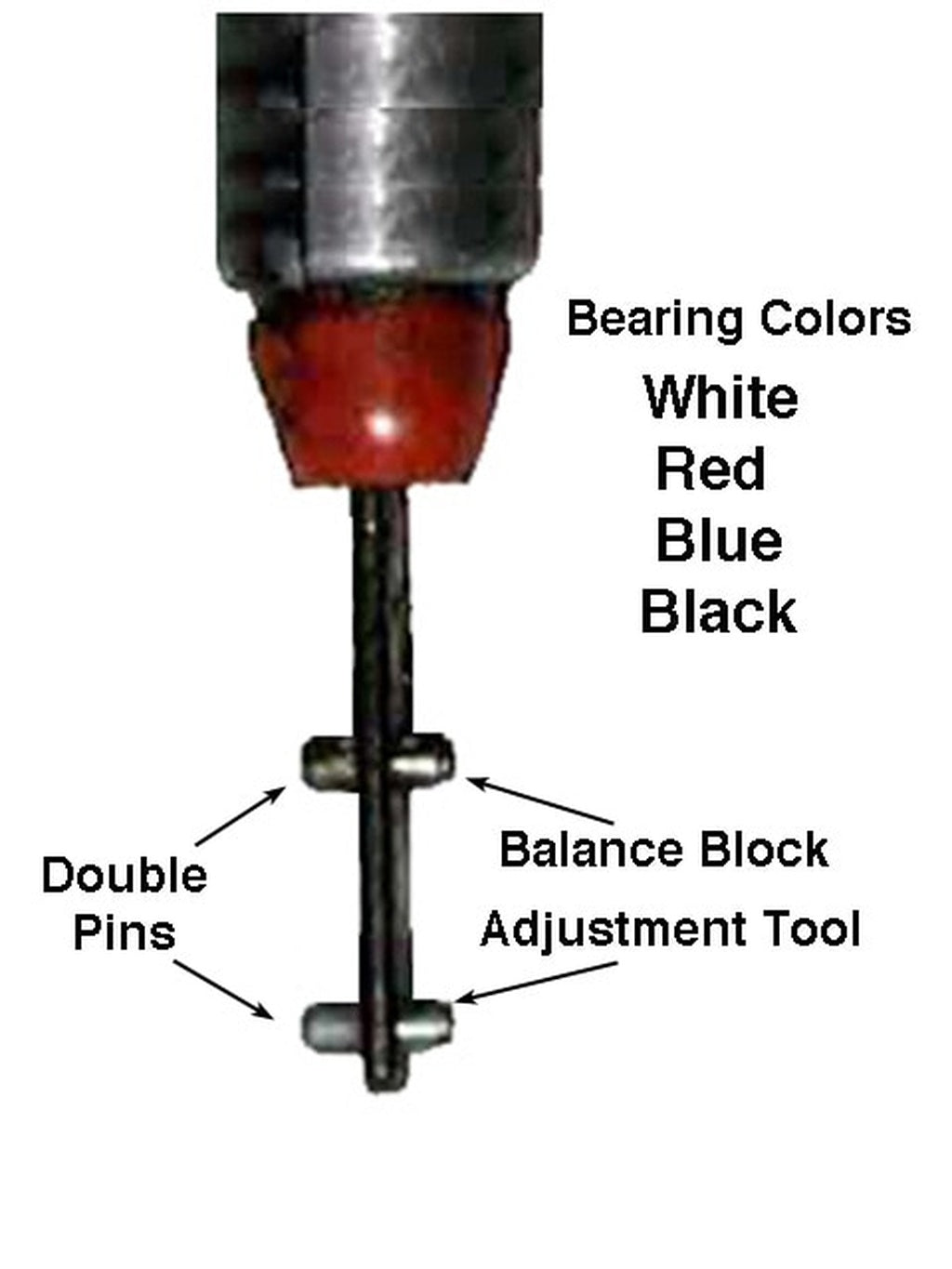

Has double end pins: one locks into the balance shoe and one for adjustment.
Specify rod length in order
(measure rod length from end to end of metal tube).

Resources:
Guide: HOW TO ADJUST A SPIRAL BALANCE ROD
Video: HOW TO REPLACE A SPIRAL BALANCE
