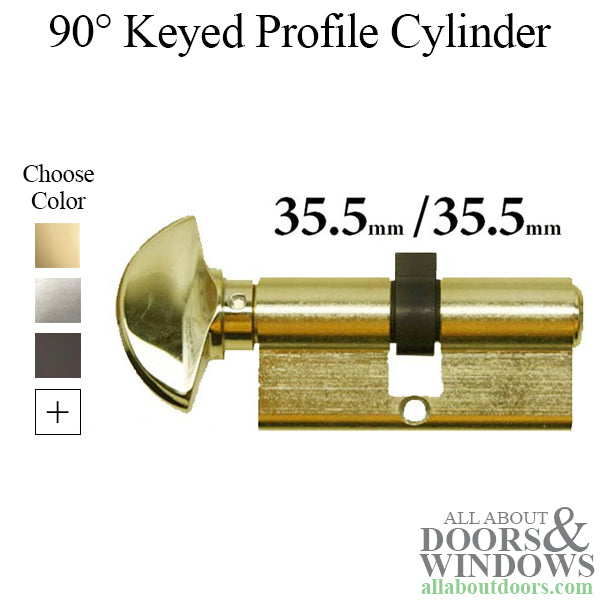

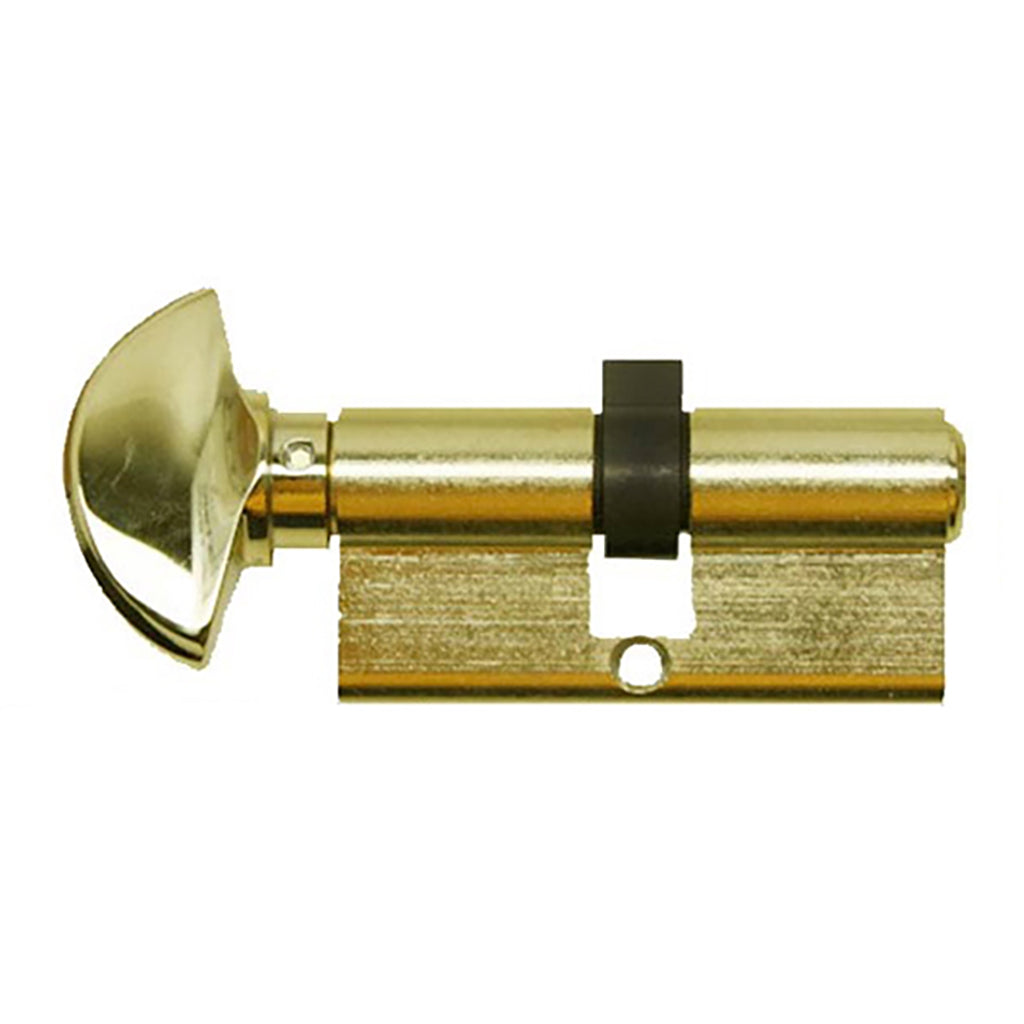

New style 90 degree HOPPE keyed profile cylinder with crescent knob.
Used on doors that are 1-1/8 to 2-1/4 inches thick.

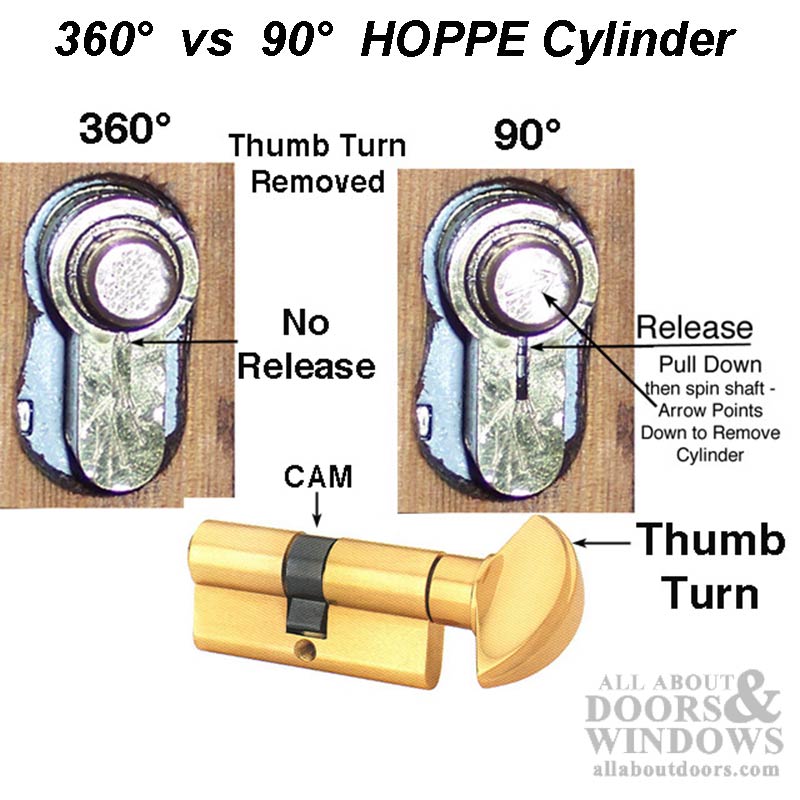

The new style 90 degree allows homeowner to look at thumb turn and know if door is locked or unlocked.
This cylinder can be converted to a 360 degree cylinder.

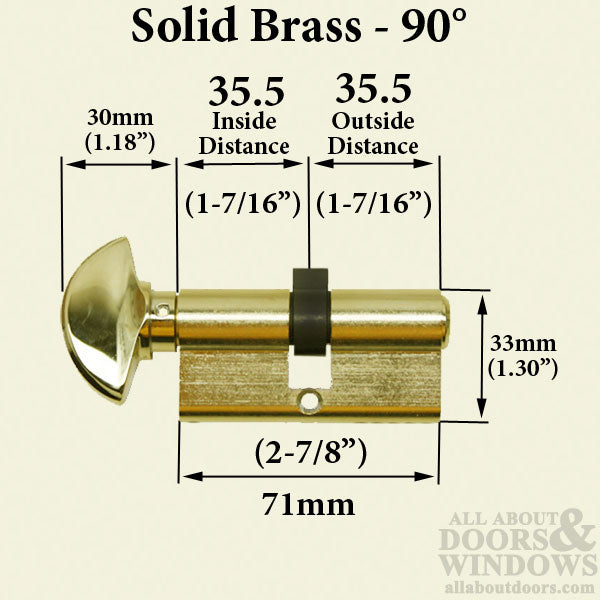

Measurements:
Inside Distance = 1-7/16 inch (35.5 mm)
Outside Distance = 1-7/16 inch (35.5 mm)
Overall (inside + outside) = 2-7//8 inches (71 mm)

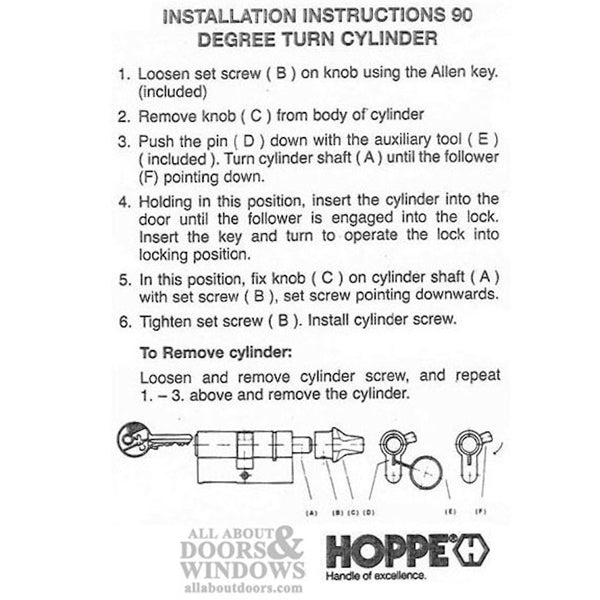

Installation Instructions:
1. Remove Thumb Turn

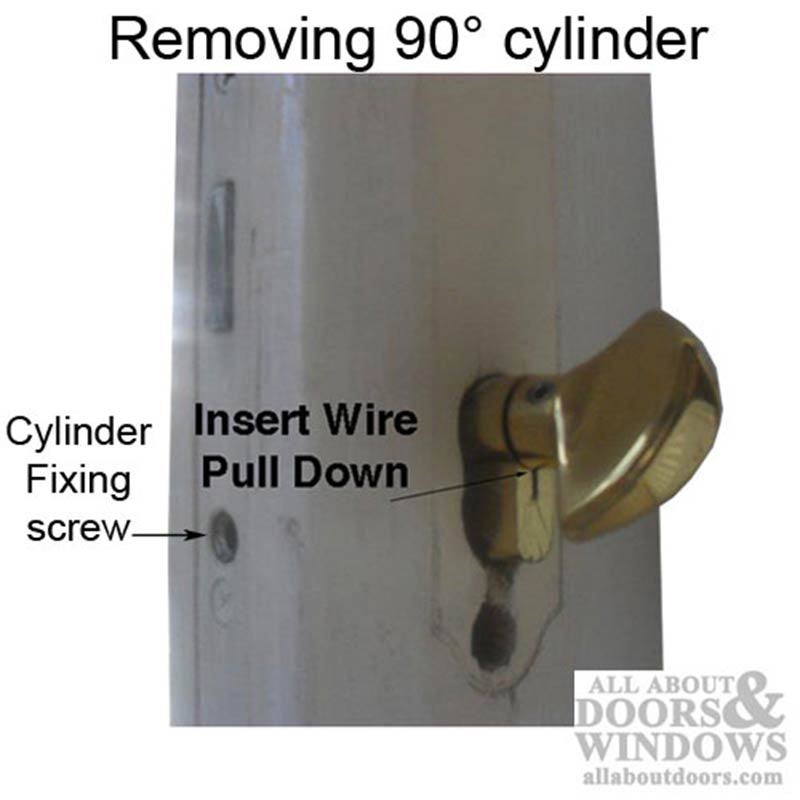

2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.
4. Replace Thumb turn.

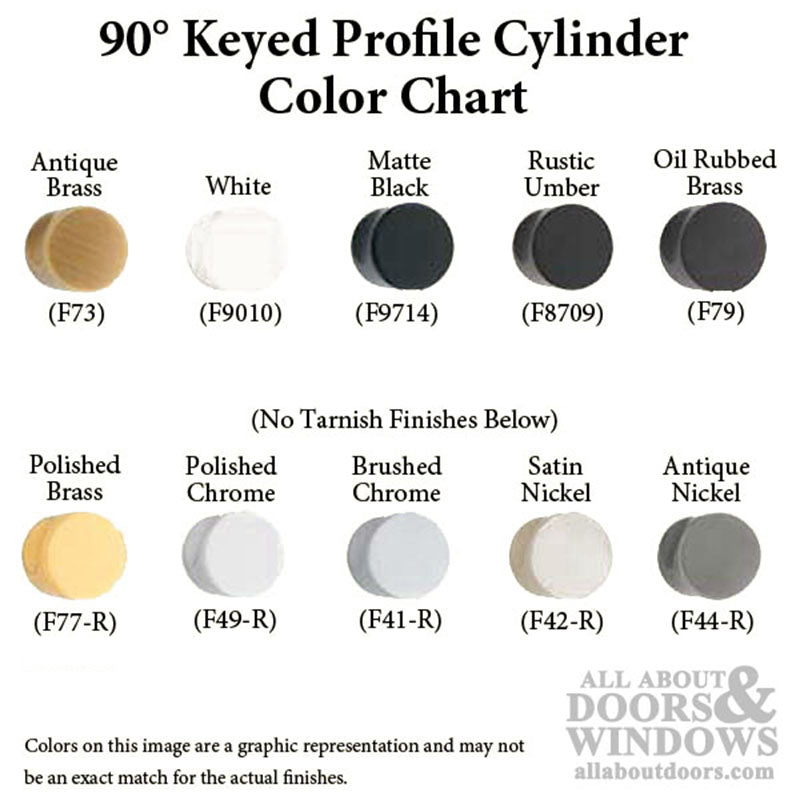

Color/Finish Options:
Rustic Umber (F8709)
Oil Rubbed Brass (F79)
Flat Black (Matte Black) (F9714)
Resista no-tarnish finishes:
Polished Brass (F77-R)
Brushed/Satin Chrome (F41-R)
Brushed/Satin Nickel (F42-R)
Note: Some colors may be special order, resulting in longer shipping times.
Guides:
Installing a 90 Degree Cylinder
HOPPE Cylinder Installation and Rekeying
Converting a HOPPE 90 Degree Cylinder into a 360 Degree Cylinder
