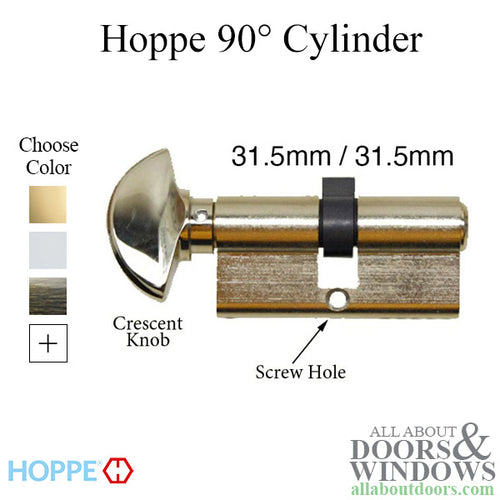

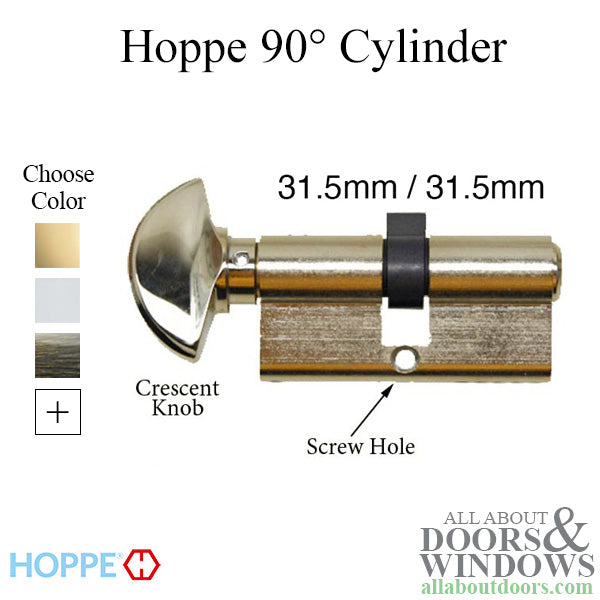

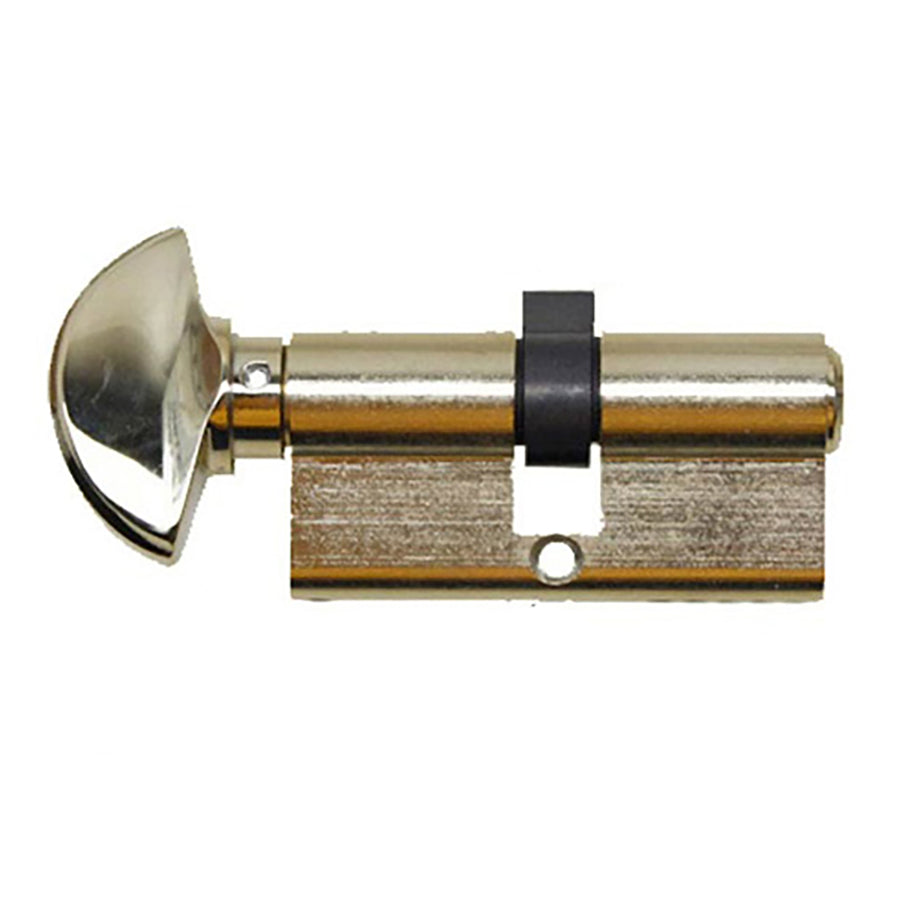

New Style 90 degree HOPPE profile cylinder with Cresent Knob
Used on doors that are 1-3/4 thick
Overall housing Length: 31.5mm / 31.5mm ( 2-1/2 inch)

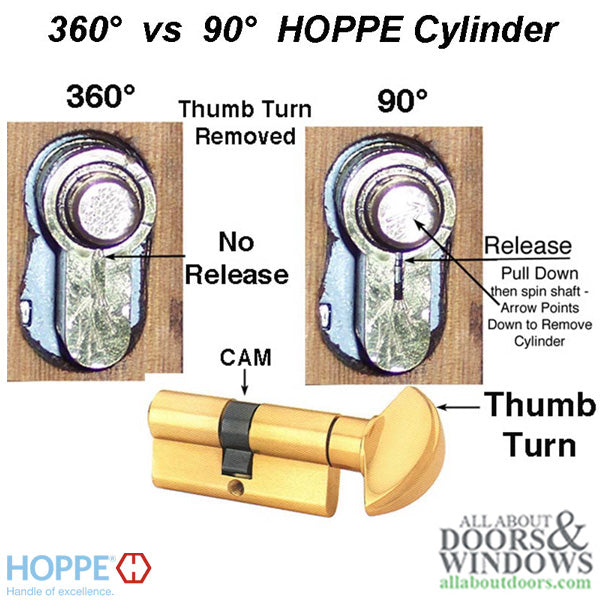

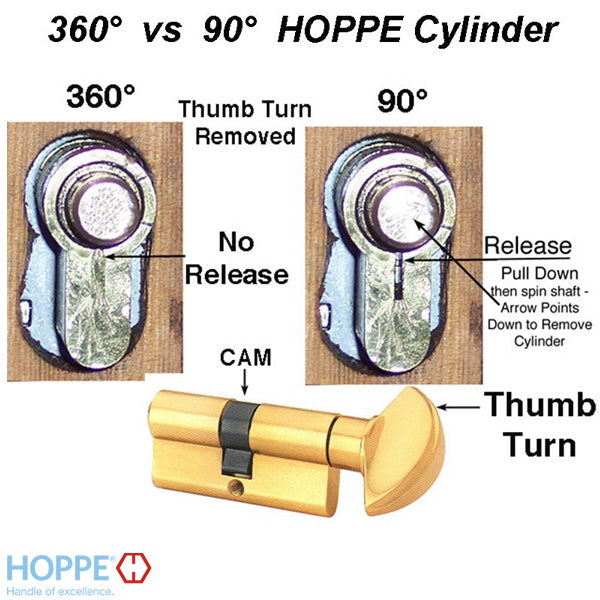

The New Style 90 degree allows homeowner to look at thumb turn and know if door is locked or unlocked.
This cylinder can be converted into a 360 degree cylinder.
This Cylinder is for a typical 1-3/4 inch thick door.
Some finishes are a Resista : No-Tarnish Finish
Uses a Schlage keyway

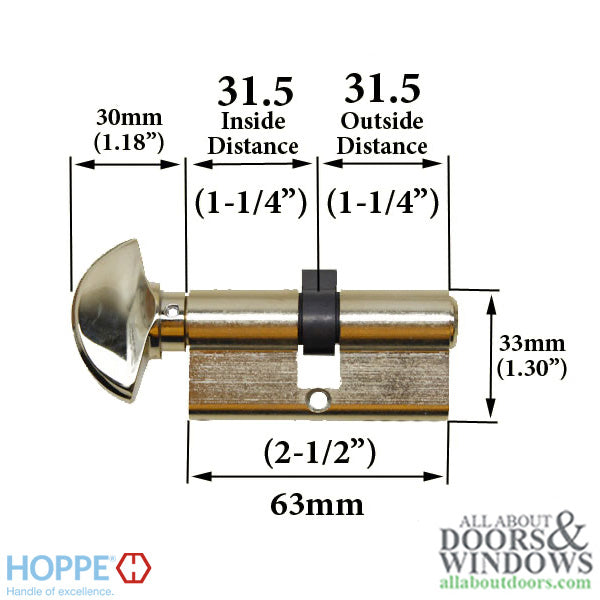

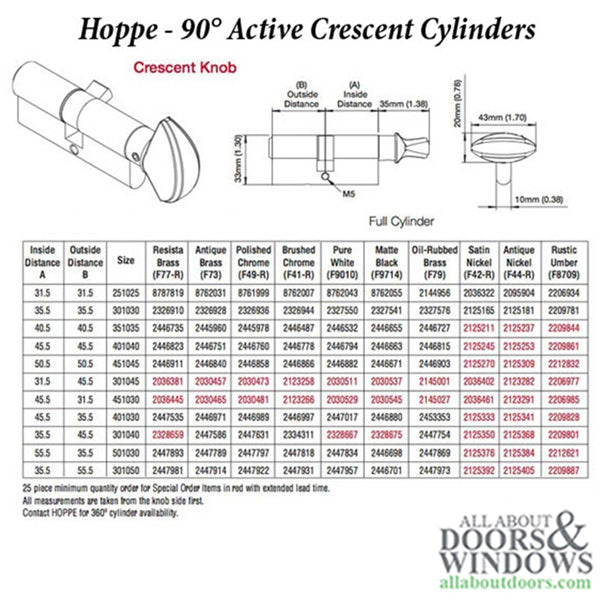

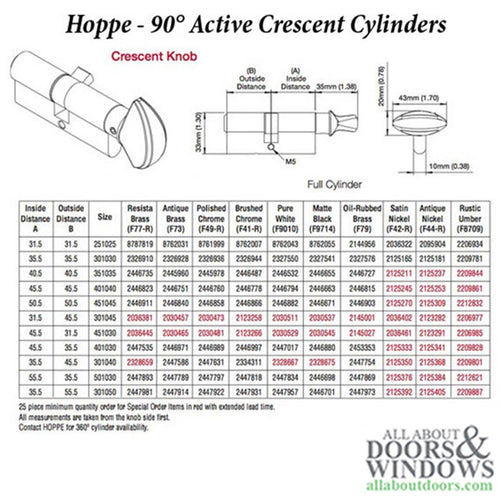

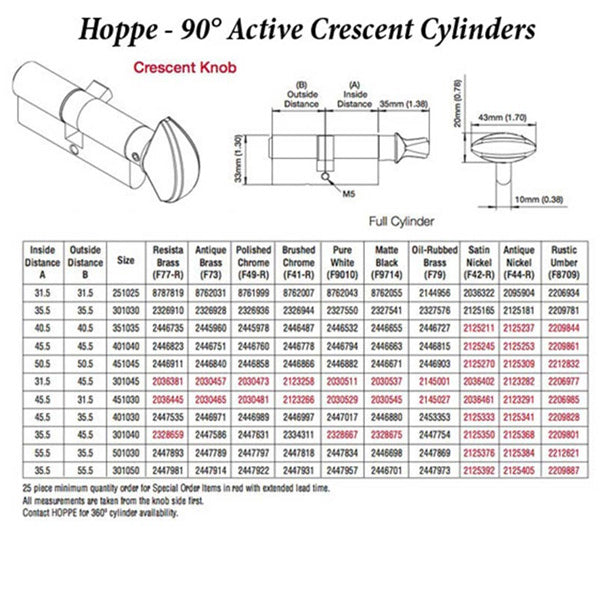

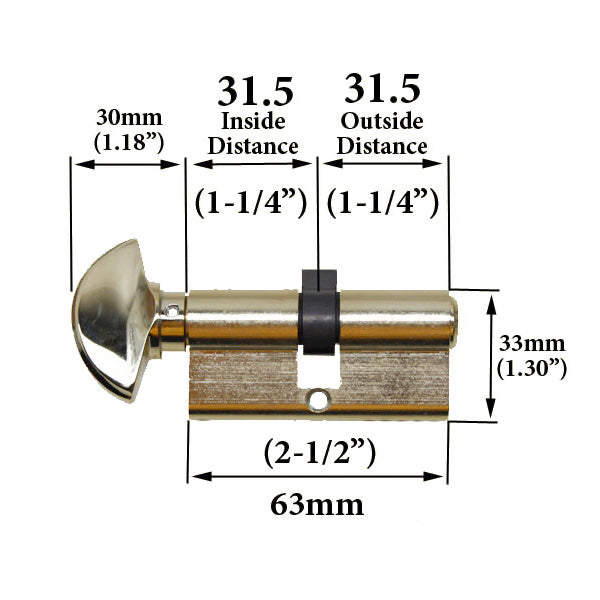

Measurements:
Inside Distance = 1-1/4 inch (31.5mm)
Outside Distance = 1-1/4 inch (31.5mm)
Overall (inside + outside) = 2-1/2 inches (63mm)

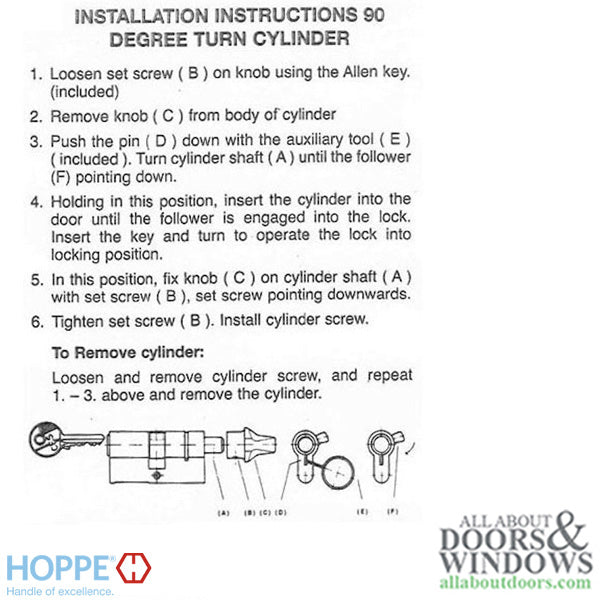

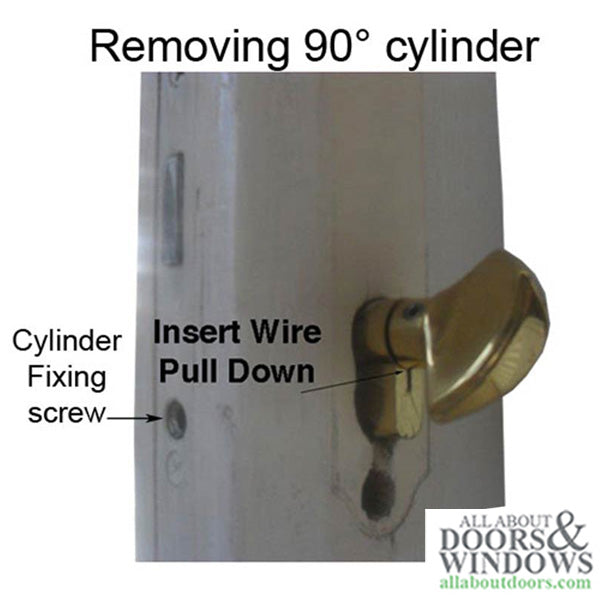

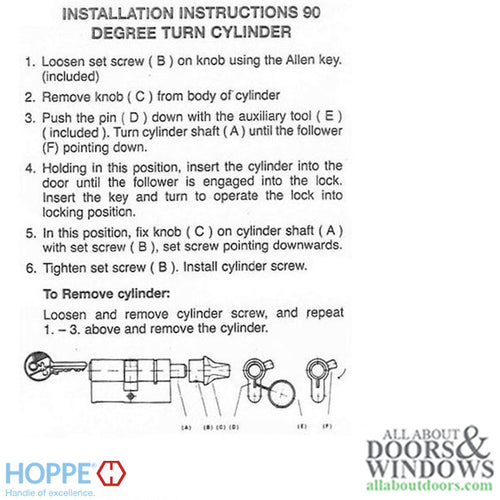

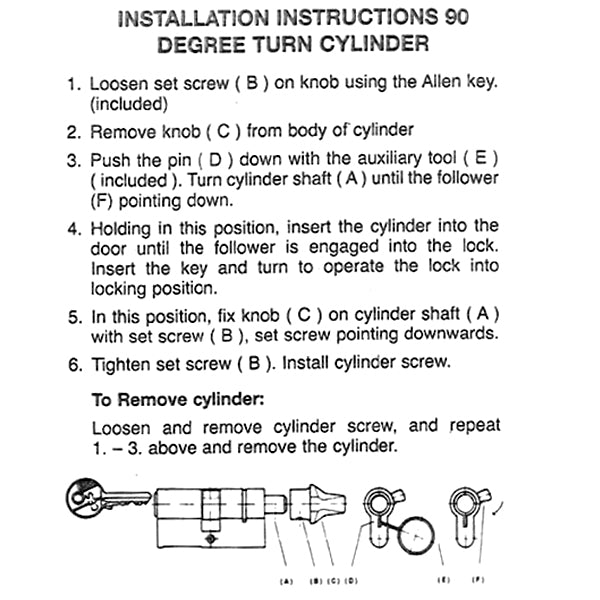

Installation Instructions:

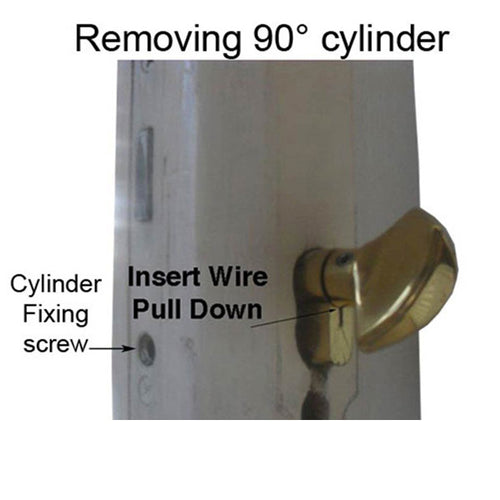

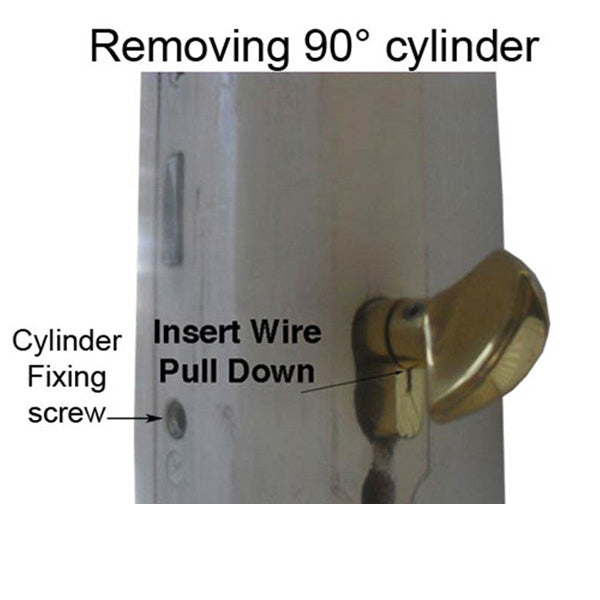

1. Remove Thumb Turn
2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.
4. Replace Thumb turn.

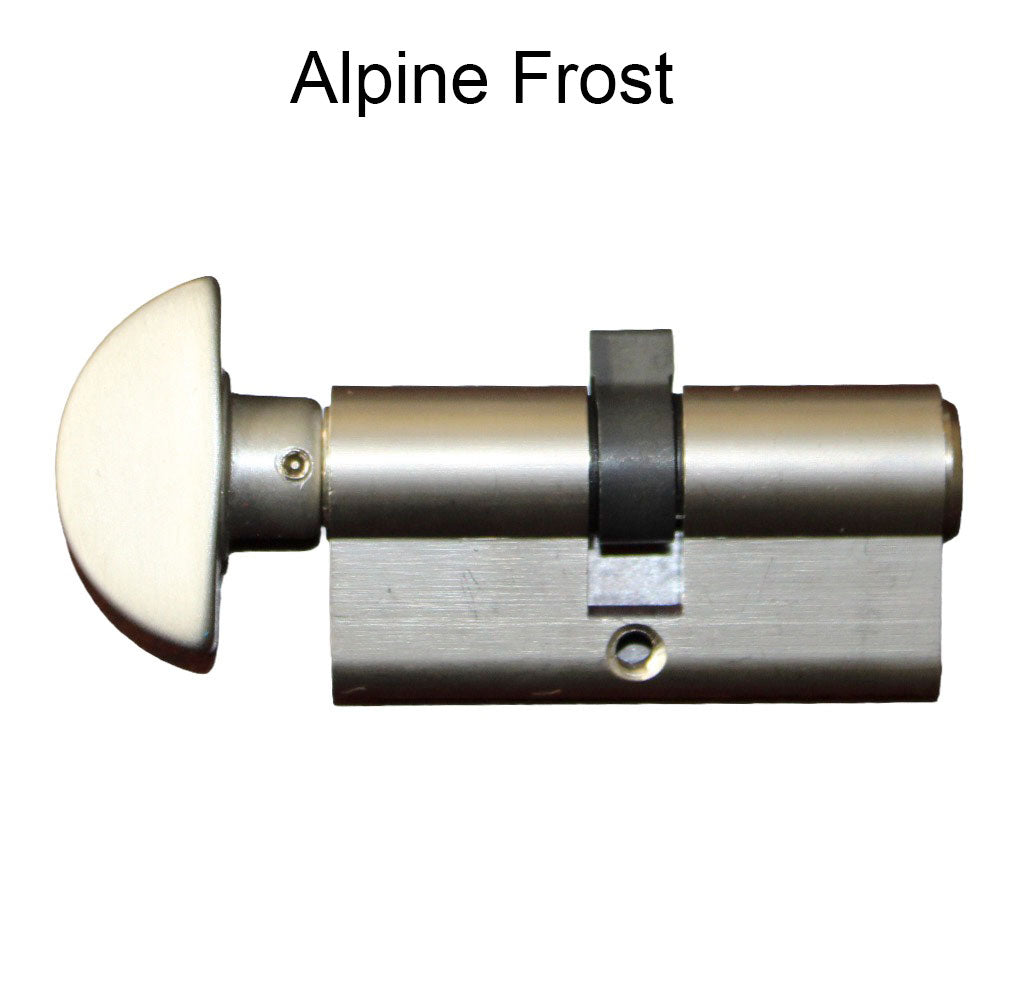

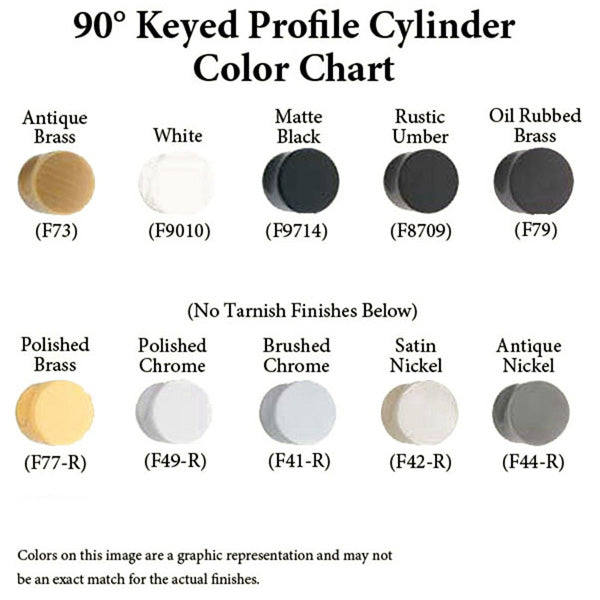

Color/Finish Options:
Antique Brass (F73)
White (F9010)
Flat Black (Matte Black) (F9714)
Rustic Umber (F8709)
Oil Rubbed Brass (F79)

(No Tarnish Finishes)
Polished Brass (F77-R)
Polished Chrome (F49-R)
Brushed/Satin Chrome (F41-R)
Brushed/Satin Nickel (F42-R)
Antique Nickel (Pewter) (F44-R)

Note: Some colors may be special order, resulting in longer shipping times.
