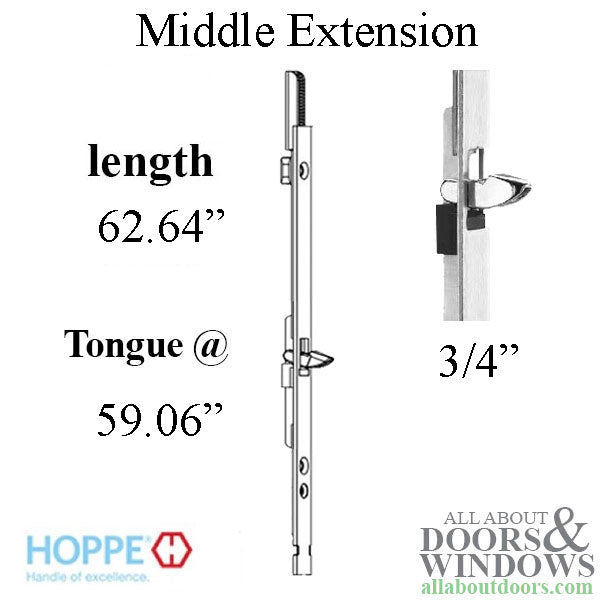

20mm Manual Middle Extension, Shootbolt-Tongue @ 59.06", 62.64" Length
Part Number: 2400606 Price: $72.33Hoppe HLS9000 active middle extension for manual version multipoint lock with Tongue and Shootbolt
Application: Middle Section of Shootbolt / Tongue 5-point lock

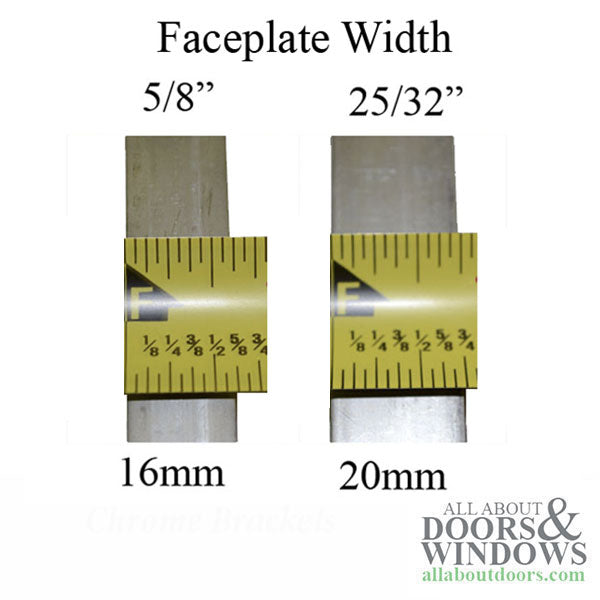

Faceplate width: 3/4 inch (20mm) .787
Middle extension length: 62-5/8 inches (1591mm) 62.64
Top tongue position from handle: 59 inches (1500mm) 59.06
Maximum cutoff: None, Nonadjustable length
Number of Screws: 9

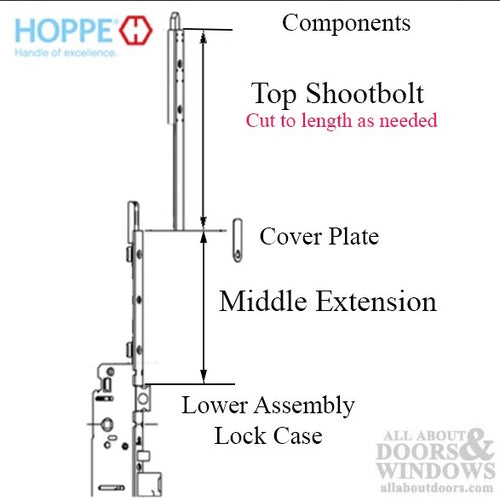

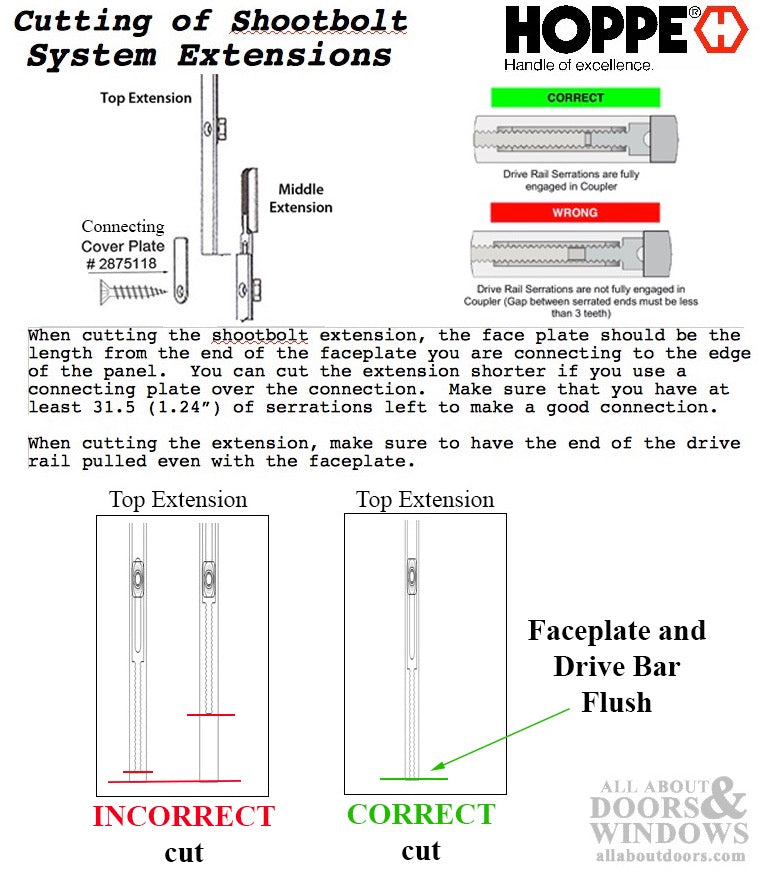

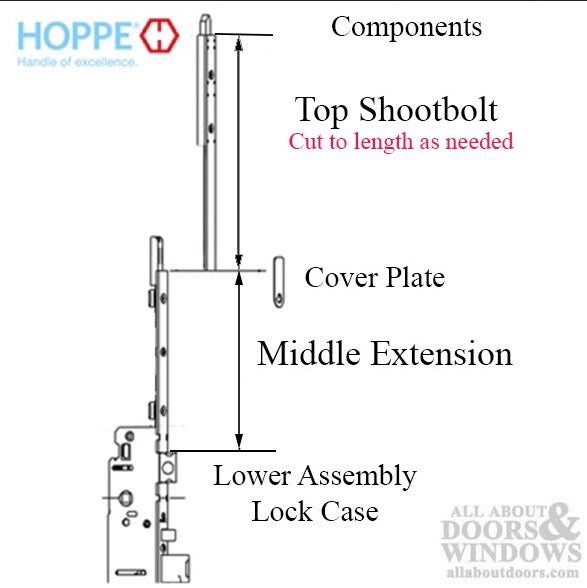

Note: This is used in combination with top shoot bolt extension to obtain desired height.
The 2400606 Middle Extension is normally used for doors 112.05 - 130.75 inches tall
Application: Middle Section of Shootbolt / Tongue 5-point lock
Faceplate width: 3/4 inch (20mm) .787
Middle extension length: 62-5/8 inches (1591mm) 62.64
Top tongue position from handle: 59 inches (1500mm) 59.06
Maximum cutoff: None, Nonadjustable length
Number of Screws: 9
Note: This is used in combination with top shoot bolt extension to obtain desired height.
The 2400606 Middle Extension is normally used for doors 112.05 - 130.75 inches tall
