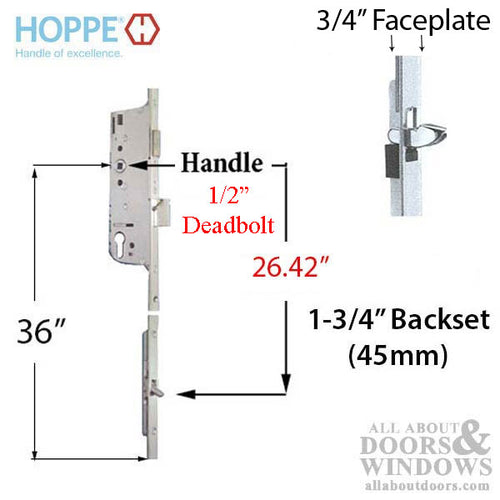

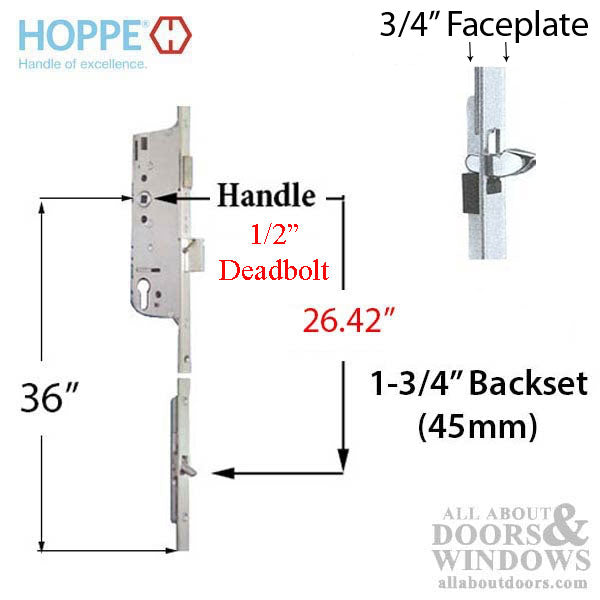

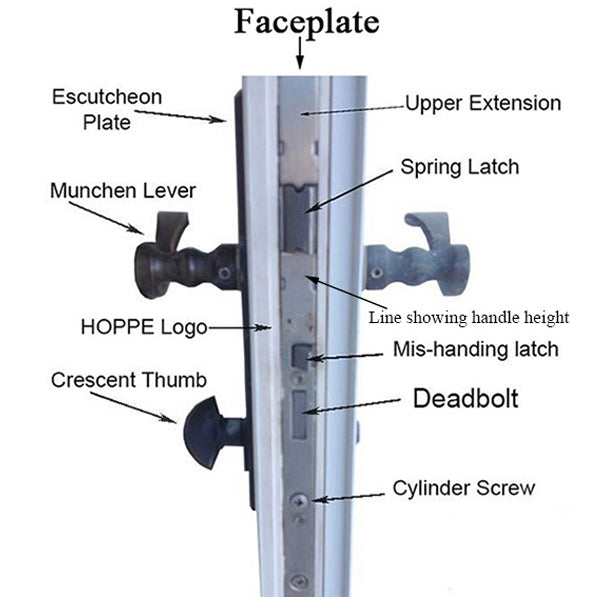

HOPPE HLS9000 3/4 inch faceplate multipoint lock with manual gear, tongue version for active door with 1/2" Deadbolt throw locks, are normally, for narrow stile aluminum doors with aluminum jambs
Specifications:

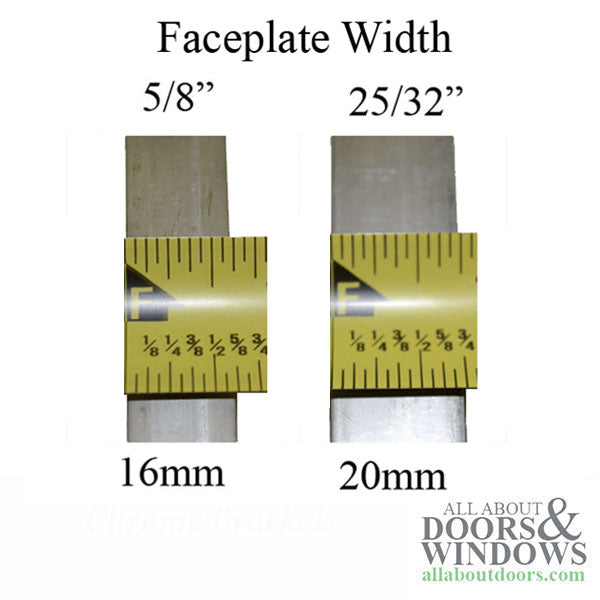

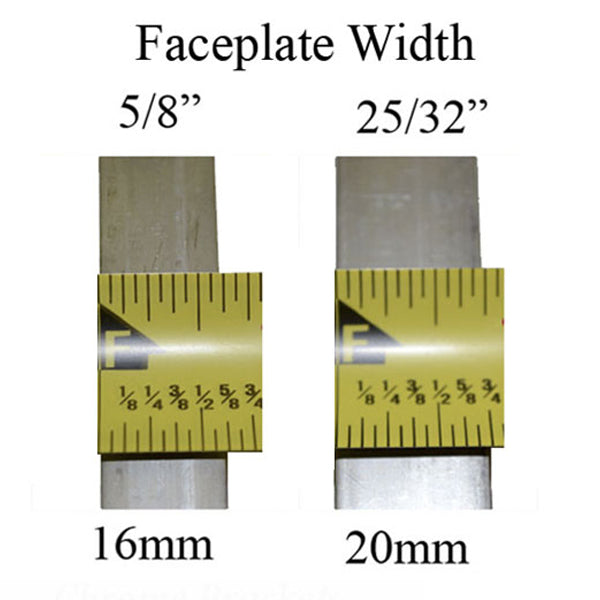

Faceplate Width: 3/4 inch (20mm) 0.787

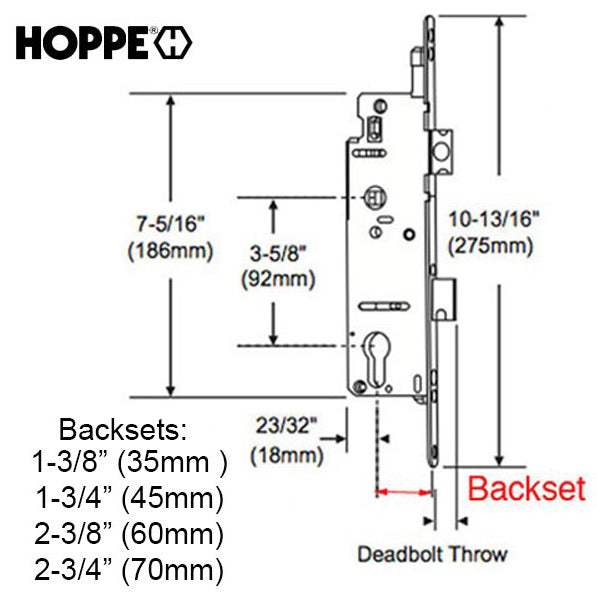

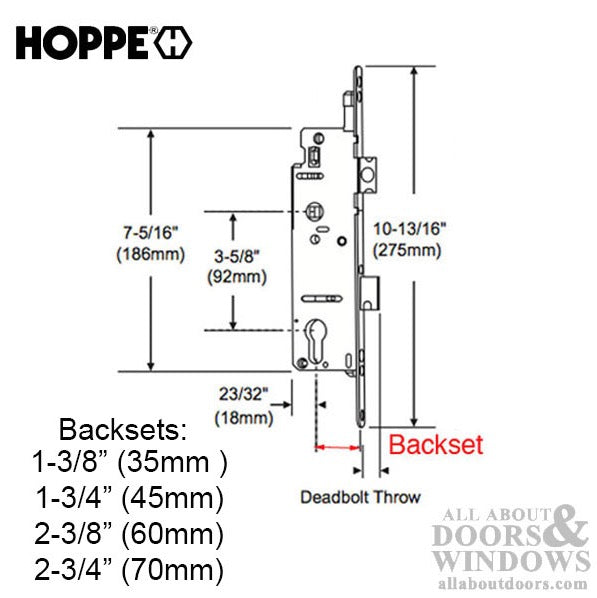

Backset: 1.77" (45mm),
Deadbolt Throw: .55" (14mm)
Handle Height: 36" (914mm),

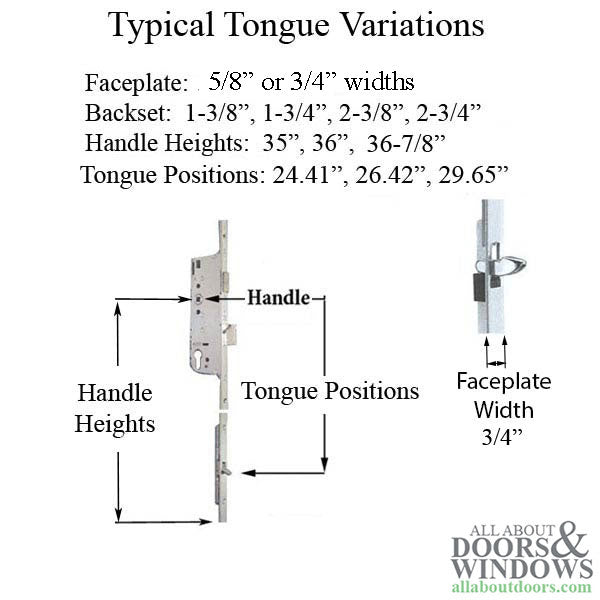

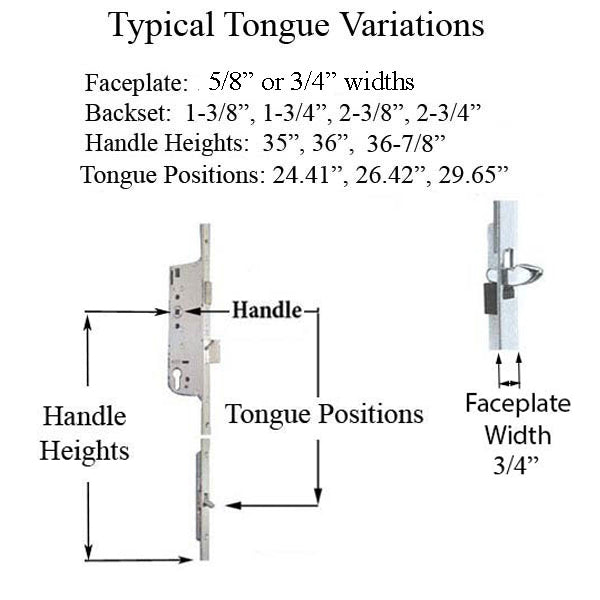

Bottom Tongue Position: 26.42" (671mm)
Maximum Cutoff : 4.53" (115mm)
Number of Screws: 6
Includes:

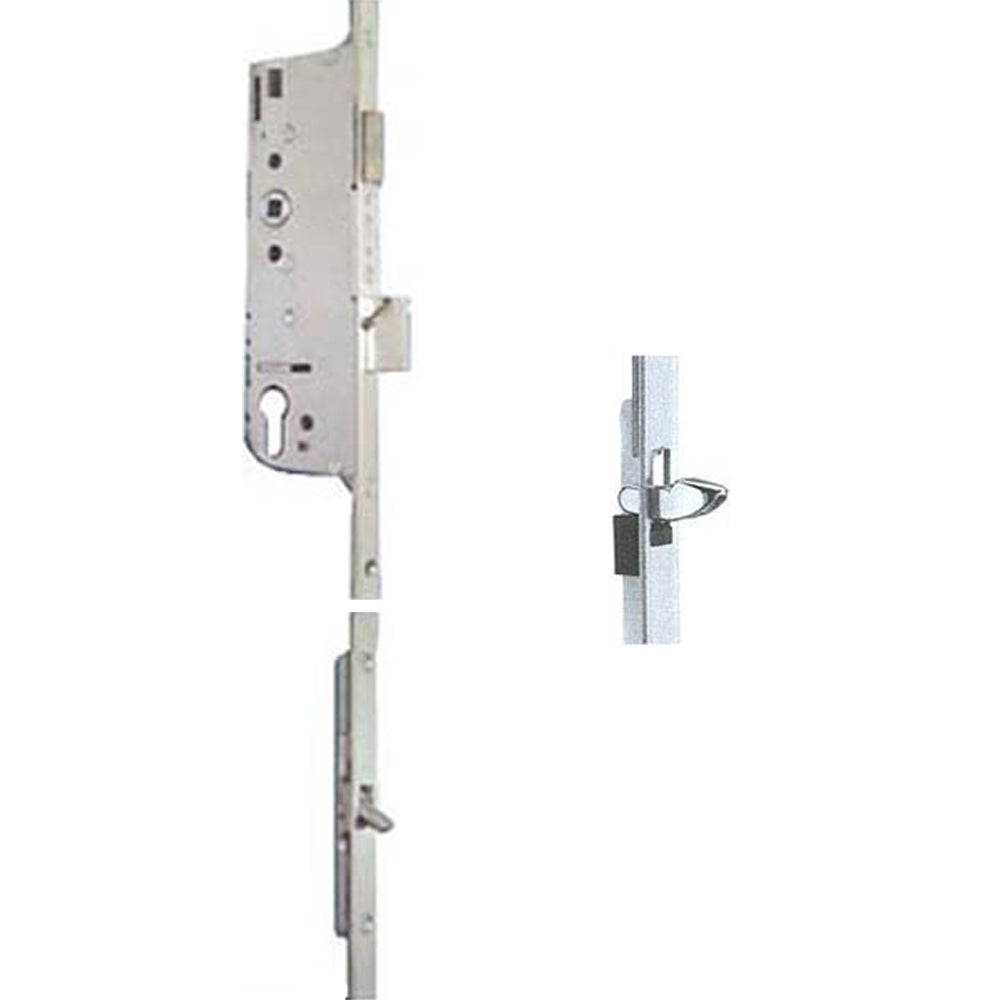

As Shown, Bottom assembly only, does not include additional upper extensions or other components.
Operation: Manual Function
To lock door, Lift handle and then turn thumb turn or Key to extend deadbolt
To unlock door, Turn Thumbturn or key and then depress lever.
Specifications:
Faceplate Width: 3/4 inch (20mm) 0.787
Backset: 1.77" (45mm),
Deadbolt Throw: .55" (14mm)
Handle Height: 36" (914mm),
Bottom Tongue Position: 26.42" (671mm)
Maximum Cutoff : 4.53" (115mm)
Number of Screws: 6
Includes:
As Shown, Bottom assembly only, does not include additional upper extensions or other components.
Operation: Manual Function
To lock door, Lift handle and then turn thumb turn or Key to extend deadbolt
To unlock door, Turn Thumbturn or key and then depress lever.
