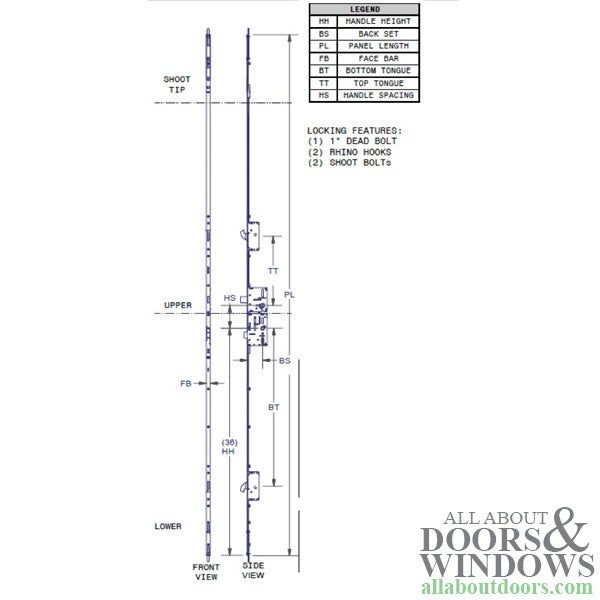

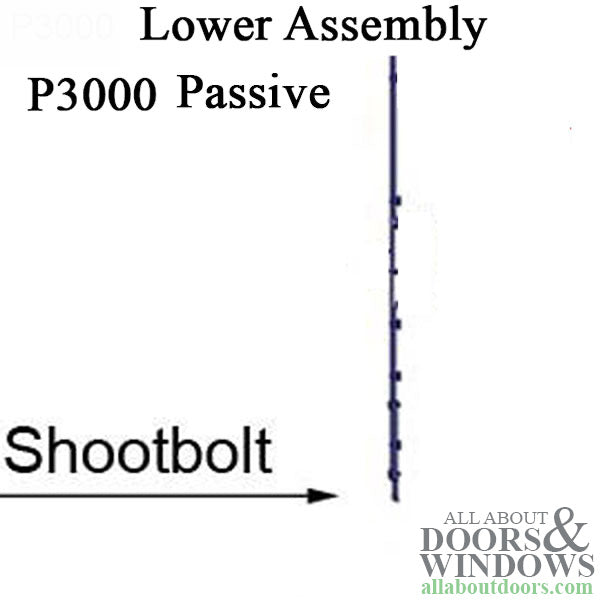

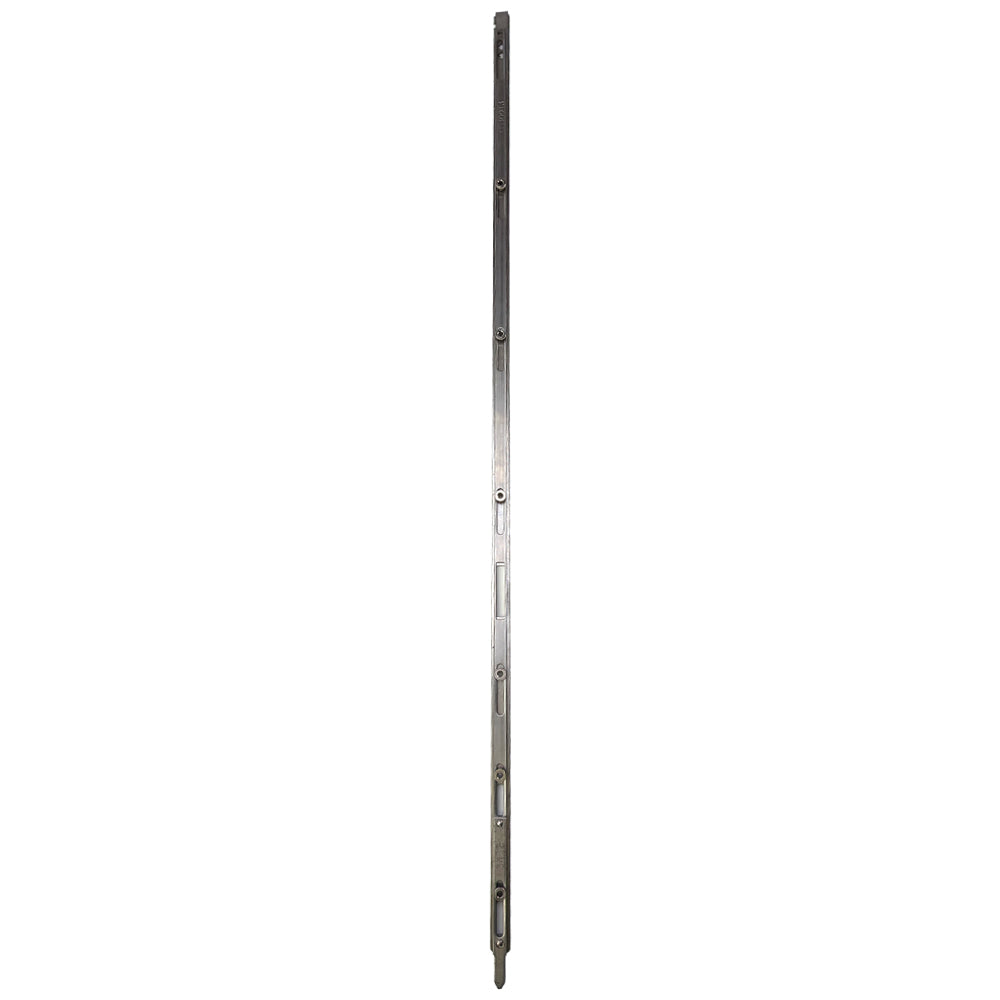

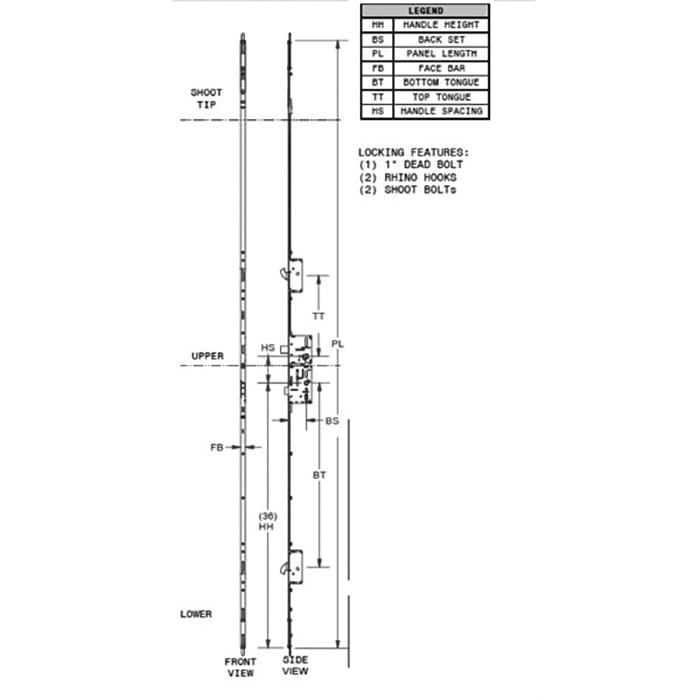

16mm P3000 Passive 45/92, Lower Shootbolt Gear with Rhino Hook Receptacle at 24.87"
Part Number: 16-30013LA Price: $150.80Amesbury P3000 Multipoint lock passive gear
Key above handle
Faceplate width: 5/8" (16mm)
Backset: 1-3/4" (45mm)
Handle Spacing: 3-5/8" (92mm)
Handle Height: 36" (914mm)
Lower Rhino Hook Receptacle: 24.87" (632mm)
This P3000 passive gear is used with multiple upper extensions depending on door panel height
Related parts
Upper (middle) extensions-
654530013UA for doors 69-82.5", Upper hook receptacle at 14.47"
654530014UA for doors 82-95.5", Upper hook receptacle at 27.47"
654530015UA for doors 95-108.5", Upper hook receptacle at 40.47"
654530016UA for doors 108-121.5", Upper hook receptacle at 53.47"
Top Shootbolt extension # 16-3468
Latch and Deadbolt Strike Plates: 3477-82
Shootbolt Strike Plates: Single 3087 (replace with 2098911), Double 3088
Key above handle
Faceplate width: 5/8" (16mm)
Backset: 1-3/4" (45mm)
Handle Spacing: 3-5/8" (92mm)
Handle Height: 36" (914mm)
Lower Rhino Hook Receptacle: 24.87" (632mm)
This P3000 passive gear is used with multiple upper extensions depending on door panel height
Related parts
Upper (middle) extensions-
654530013UA for doors 69-82.5", Upper hook receptacle at 14.47"
654530014UA for doors 82-95.5", Upper hook receptacle at 27.47"
654530015UA for doors 95-108.5", Upper hook receptacle at 40.47"
654530016UA for doors 108-121.5", Upper hook receptacle at 53.47"
Top Shootbolt extension # 16-3468
Latch and Deadbolt Strike Plates: 3477-82
Shootbolt Strike Plates: Single 3087 (replace with 2098911), Double 3088
