This is the Top Extension only, does not include the bottom assembly with gearbox

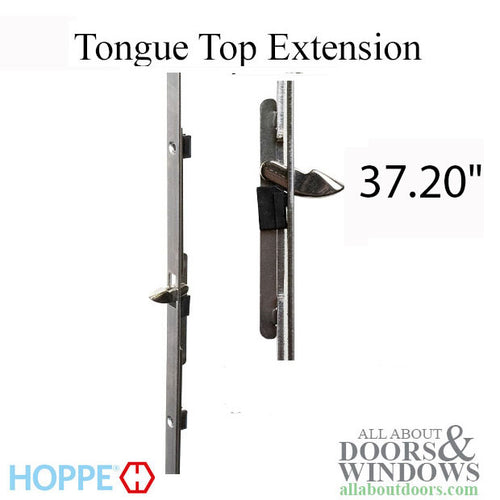

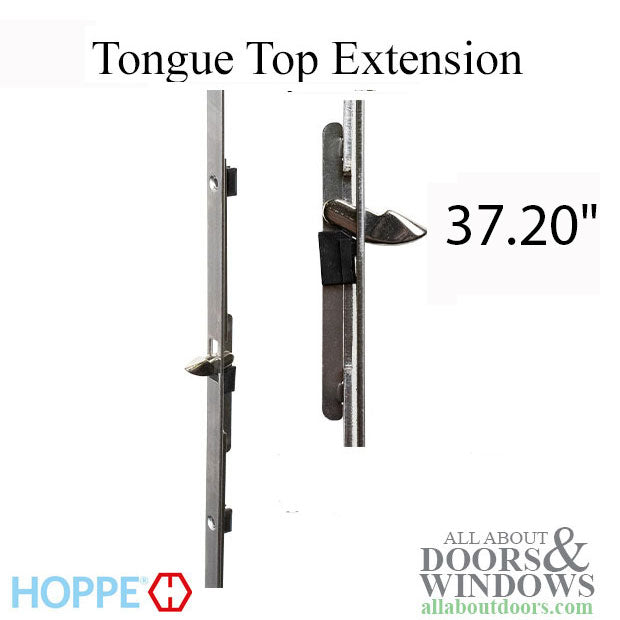

Hoppe Multi-Point Lock Top Component - 1 of 2 Pieces.

Top Section: Manual Tongue
Faceplate Width: 5/8 inch (16mm)

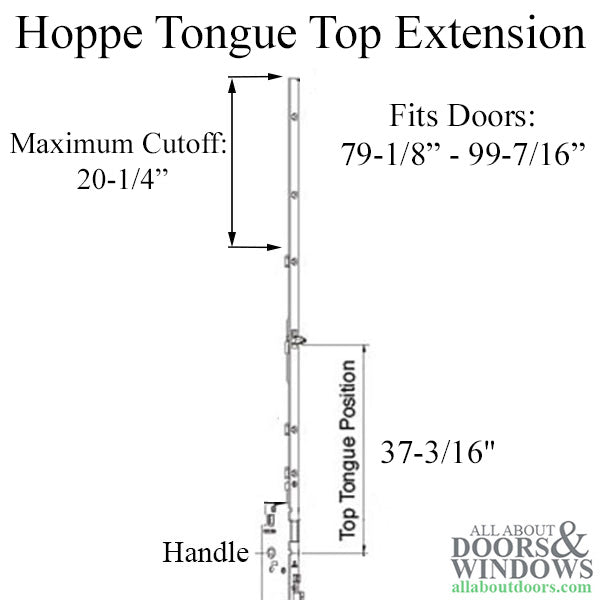

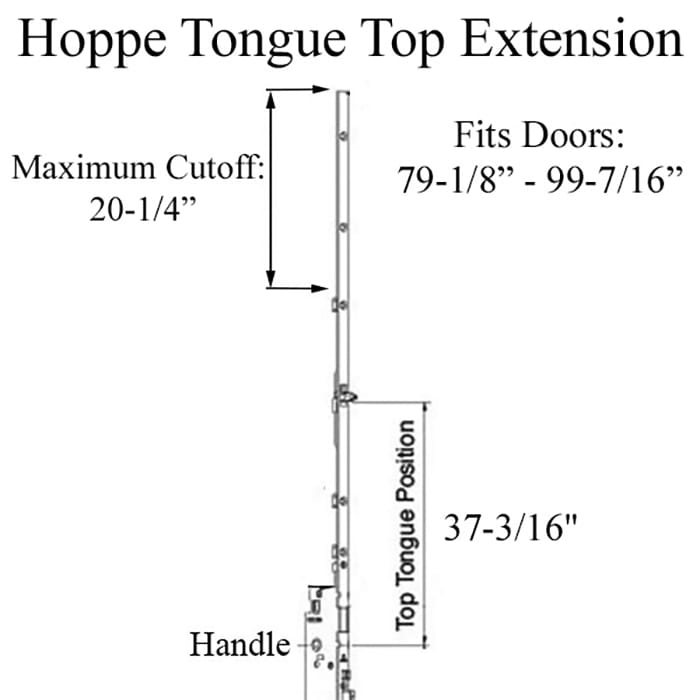

Top Tongue Position: 37.20 inches (945mm)
Extension Length: 61.81 inches (1570mm)
Maximum Cutoff: 20.28 inches (515mm)
Number of Screws: 10
Material: Stainless Steel

Note:
When both Upper and Lower assemblies are connected fits doors from 79.13 to 99.41 inches tall with 36 inch handle height.
The top may be cut a maximum of 20.28 inches, to adjust for different door heights.
Overall Handle to Top of Door 63.43 inches with 36 inch handle Height

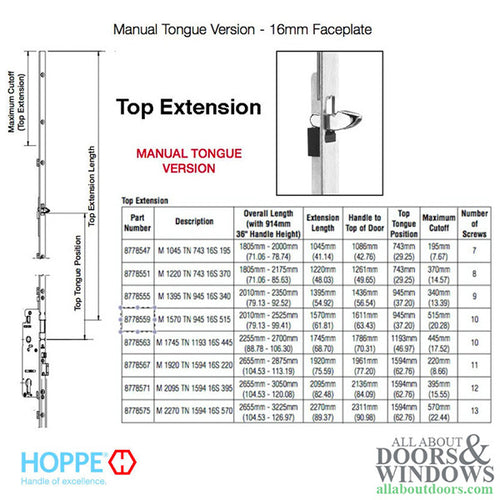

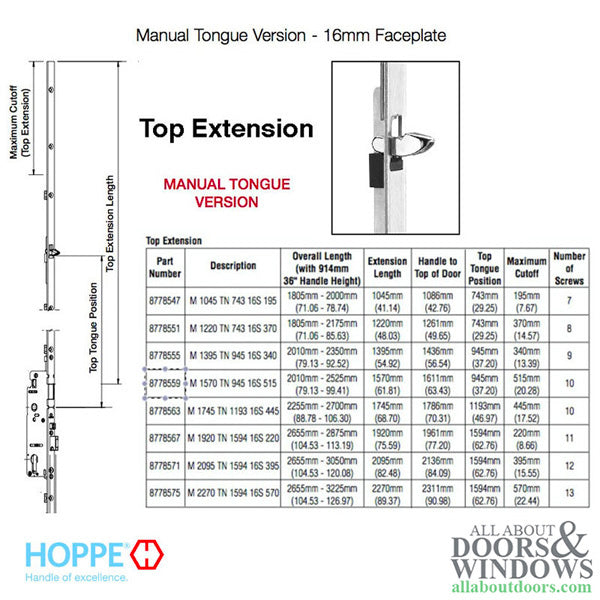

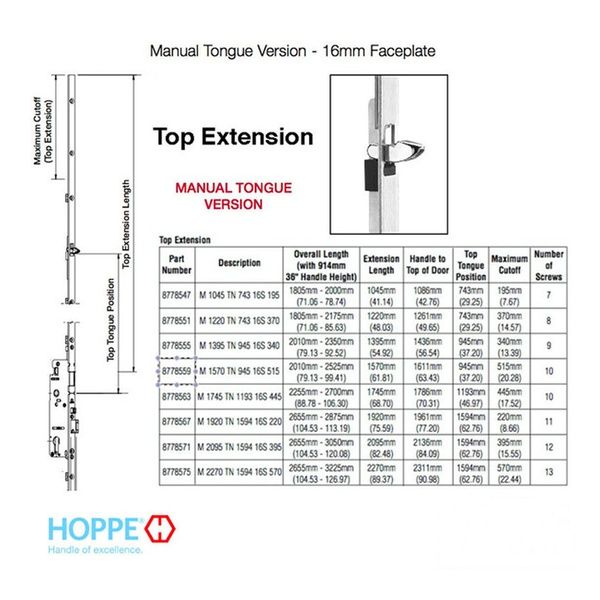

Related Hoppe 16mm Tongue Extensions:
2333474 - Hoppe Top Extension with Tongue 37.79"
8778551 - Hoppe Top Extension with Tongue 48.03"
8778555 - Hoppe Top Extension with Tongue 54.92"
8778559 - Hoppe Top Extension with Tongue 61.81"
8778563 - Hoppe Top Extension with Tongue 68.70"
8778567 - ​​​​​​Hoppe Top Extension with Tongue 75.59"

Attaching HOPPE Multipoint Lock Top Extension

Rehanding a Hoppe HLS9000 Multipoint Lock
