This is the Top Extension only, does not include the bottom assembly with Gearbox

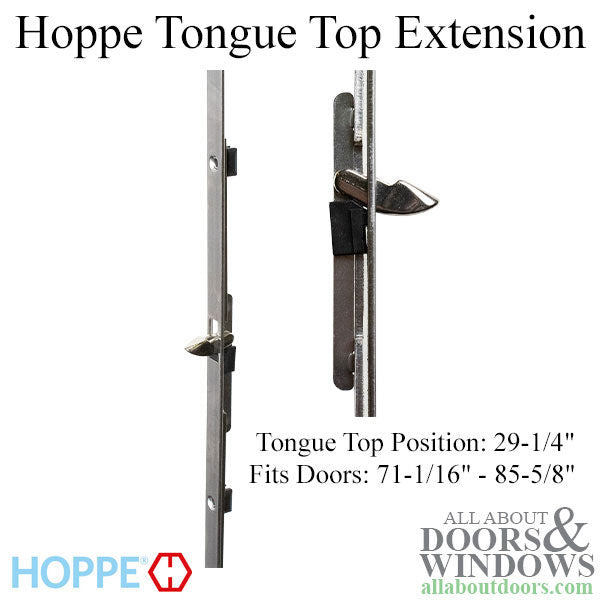

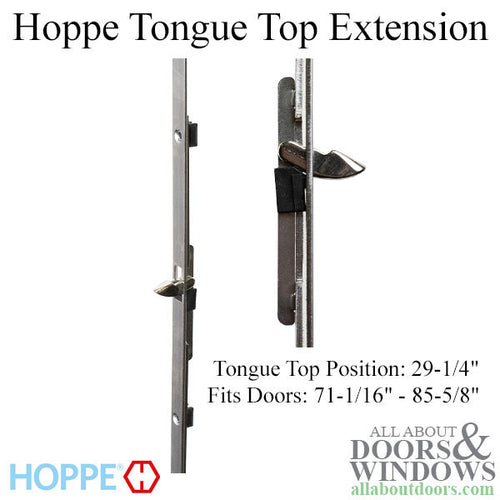

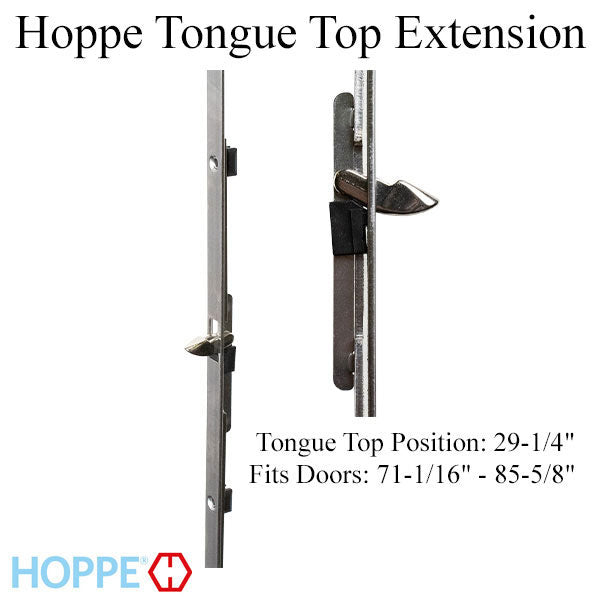

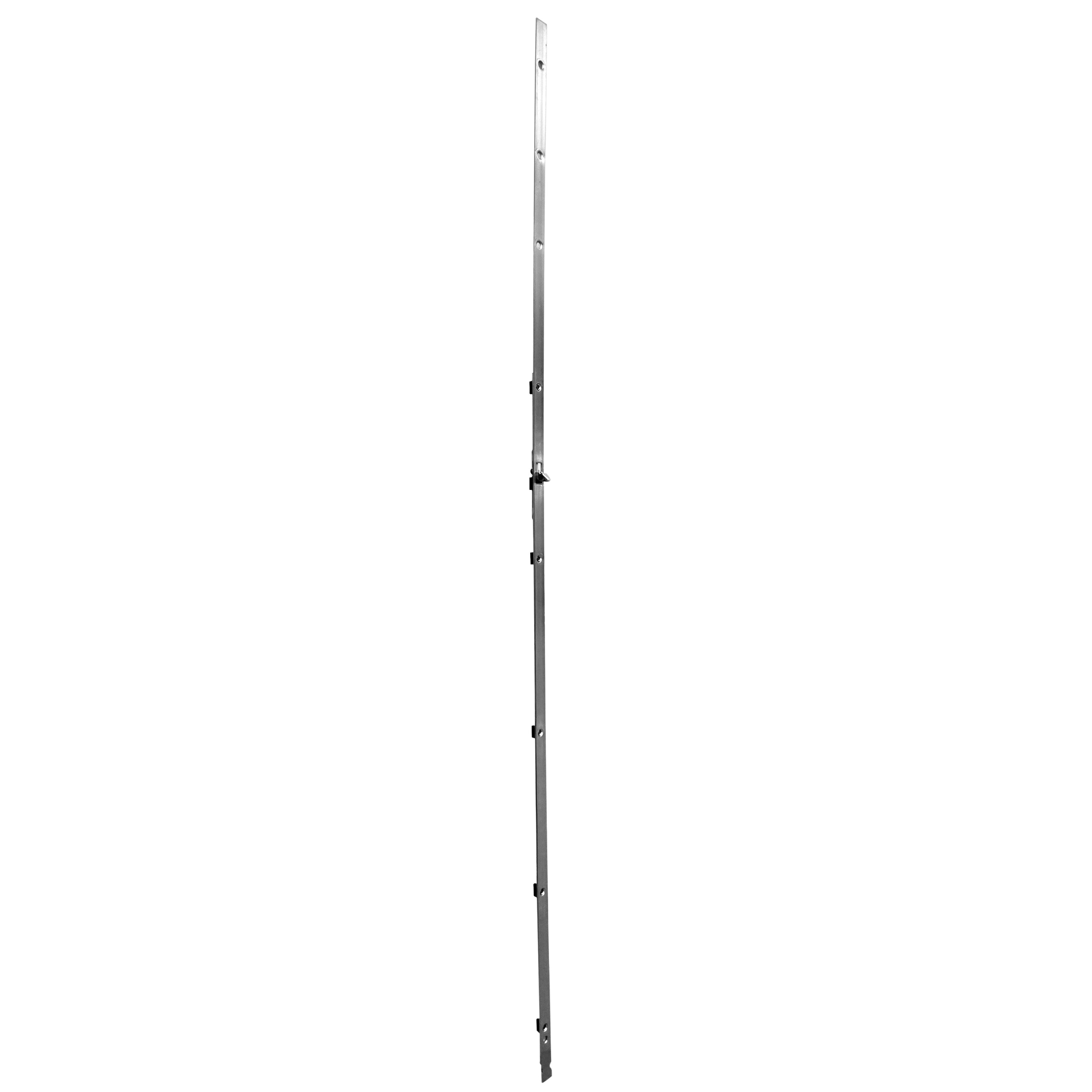

Hoppe Multi-Point Lock Top Component - 1 of 2 Pieces.
Application: Top section only, manual tongue
Faceplate Width: 5/8 inch (16mm)

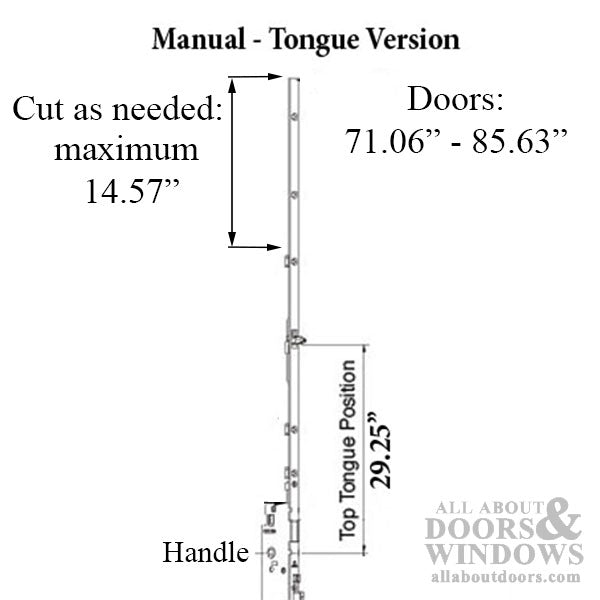

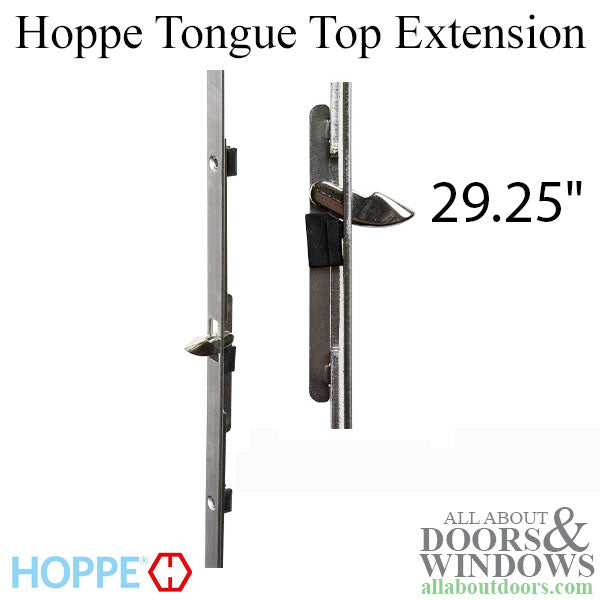

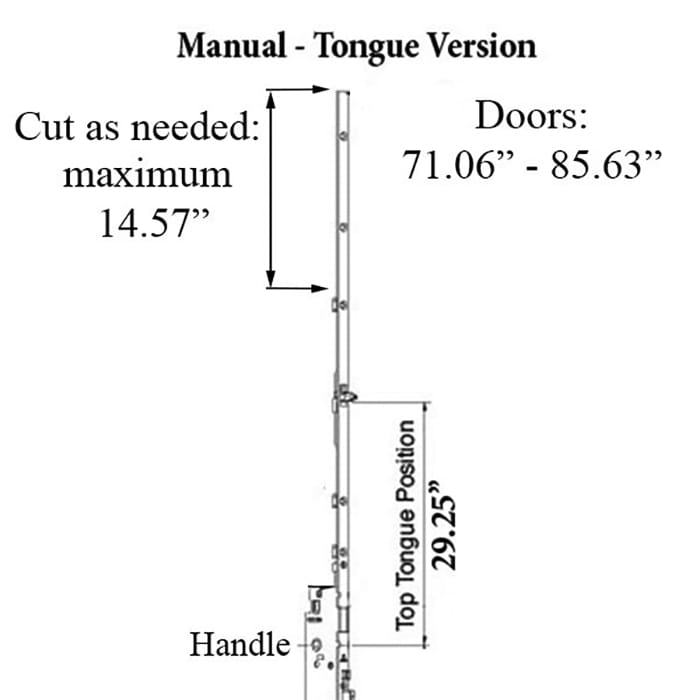

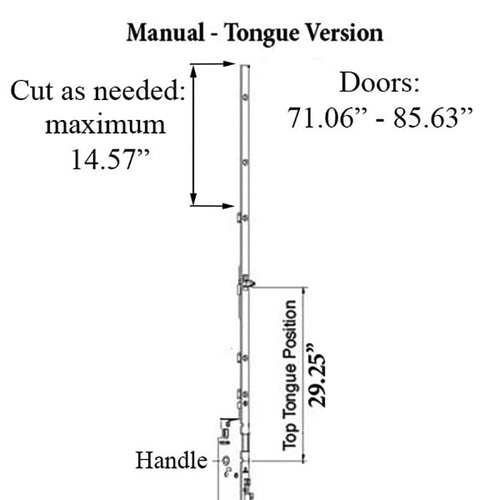

Top Tongue Position: 29.25 inches (743mm)
Extension Length: 48.03 inches (1220mm)
Maximum Cutoff: 14.57 inches ( 370mm)
Material: Stainless Steel
Note:
When both Upper and Lower assemblies are connected fits doors from 71.06 to 85.63 inches tall with 36 inch handle height.
The top may be cut a maximum of 14.57 inches (370mm), to adjust for different door heights.
Related Hoppe 16mm Tongue Extensions:
2333474 - Hoppe Top Extension with Tongue 37.79"
8778551 - Hoppe Top Extension with Tongue 48.03"
8778555 - Hoppe Top Extension with Tongue 54.92"
8778559 - Hoppe Top Extension with Tongue 61.81"
8778563 - Hoppe Top Extension with Tongue 68.70"
8778567 - Hoppe Top Extension with Tongue 75.59"
Attaching HOPPE Multipoint Lock Top Extension
