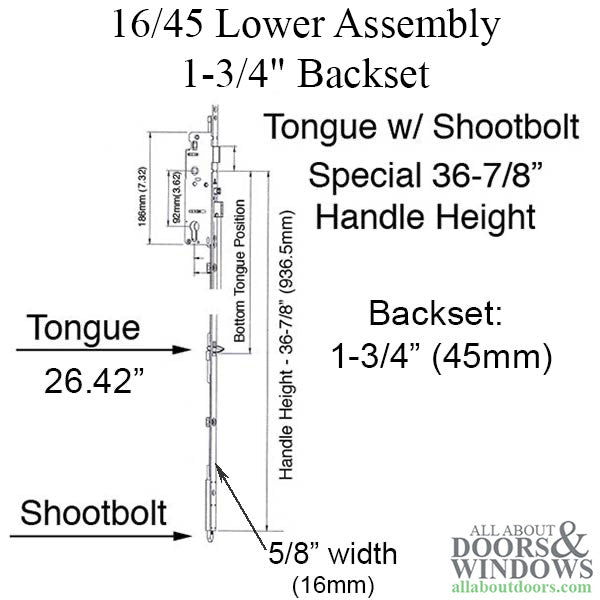

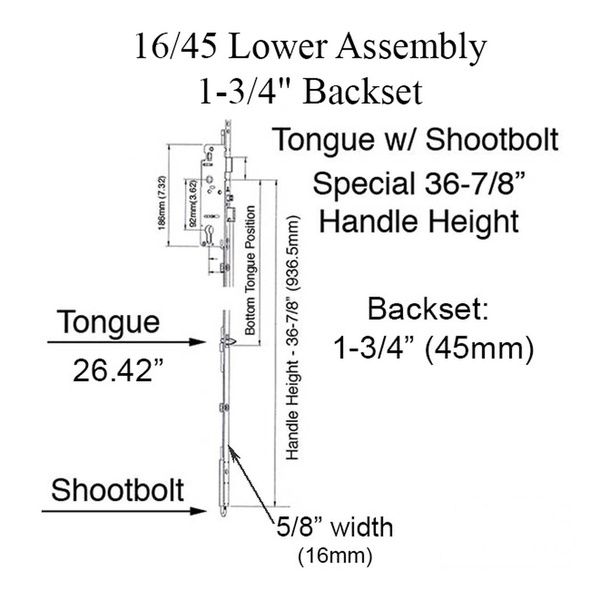

16mm Manual Tongue-Shootbolt 45/92 Gear, Tongue @ 26.42", 36-7/8 " Handle Height
Part Number: 2760062 Price: $140.08SPECIAL SIZE Hoppe HLS9000 Bottom Gear, Manual Tongue with Shootbolt
This product is used by Crestline, Vetter, SNE Corporation
Function: Manual version for active door

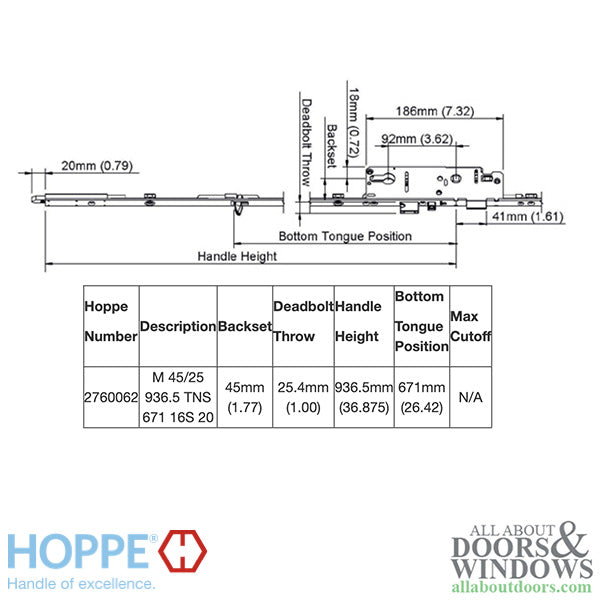

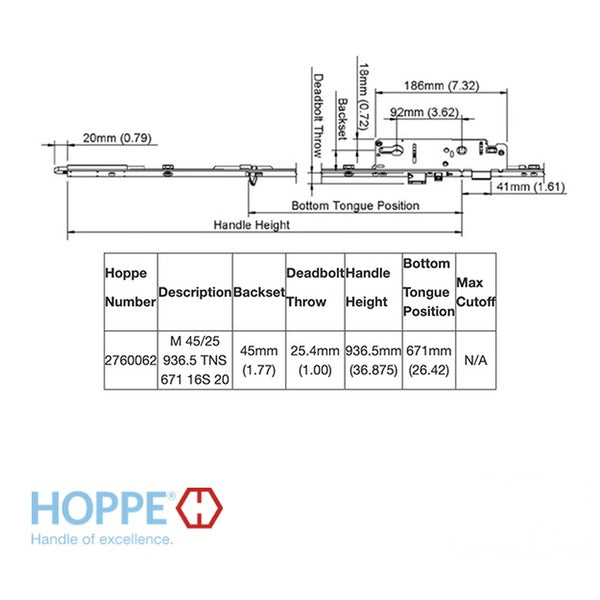

Handle Height (HH): Special 36-7/8 inch (936.5mm) (36 inches is standard)

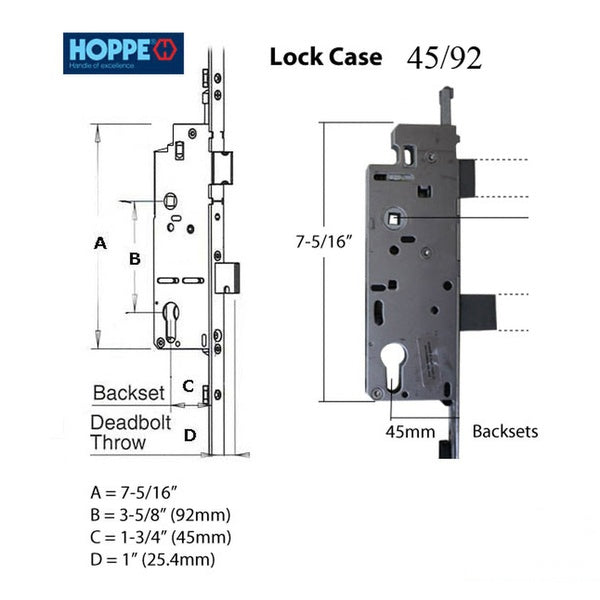

Face Plate width: 5/8" (16mm)

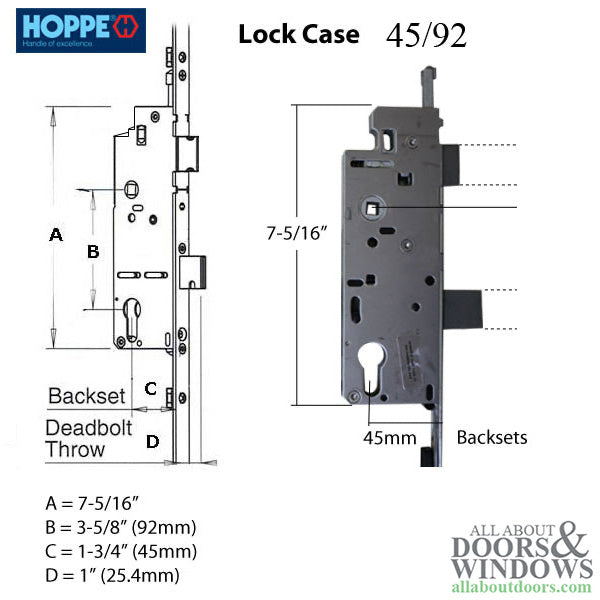

Backset:1-3/4" (45mm)
Deadbolt Throw: 1" (25.4mm)

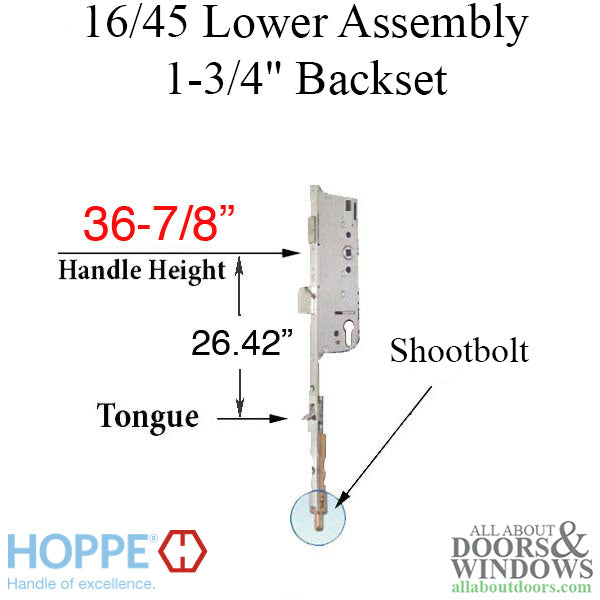

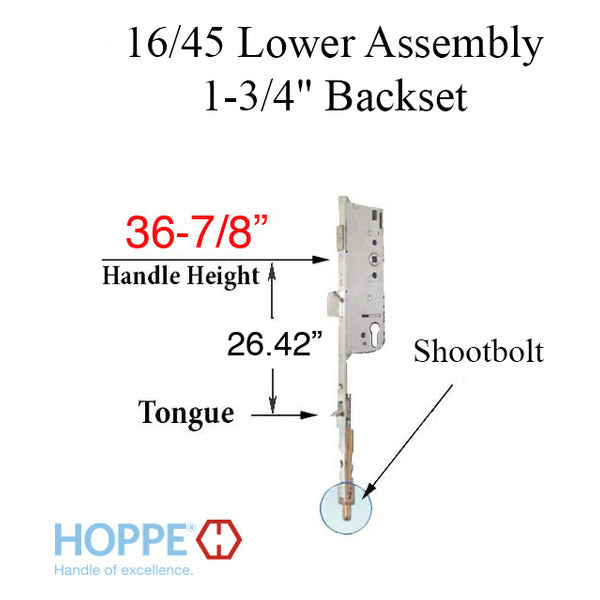

Bottom Tongue Position: 26.42" (671mm)

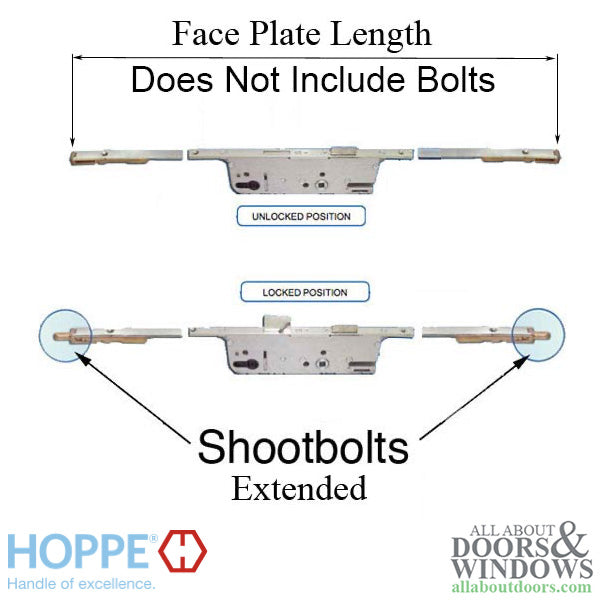

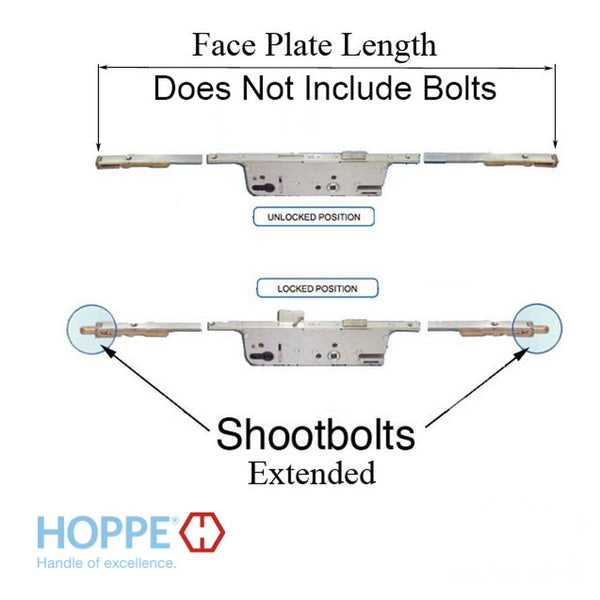

Shootbolt Throw: 3/4" 20mm)
Finish: Stainless Steel
NOTE: Several height doors; may require different components
Overall Lengths- when combined with Bottom Gear with 36-7/8 inch handle height
Article: HLS Swing Door Multipoint Hardware Installation And Adjustment
Related 16mm Hoppe Tongue/ Shootbolt Bottom Gear Assemblies:
8777951 - 16/45 Lower Assembly Hoppe Multipoint 1-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 35-3/4"
8778107 - 16/45 Lower Assembly Hoppe Multipoint 1-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
8778263 - 16/35 Lower Assembly/ Hoppe Multipoint 1-3/8" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
2406477 - 16/60 Lower Assembly/ Hoppe Multipoint 2-3/8" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
2107477- 16/45 Lower Assembly/ Hoppe Multipoint 1-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
2406485 - 16/70 Lower Assembly/Hoppe Multipoint 2-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
2516297 -16/45 Lower Assembly Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36-1/2"
2760062 - 16/45 Lower Assembly/ Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36-7/8"
2339382 - 16/45 Lower Assembly/ Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 39-5/8"
2680919 - 16/35 Lower Assembly/ Hoppe Multipoint 1.3/8" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 39-5/8"
2607957 - 16/45 Lower Assembly/ Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 54"
