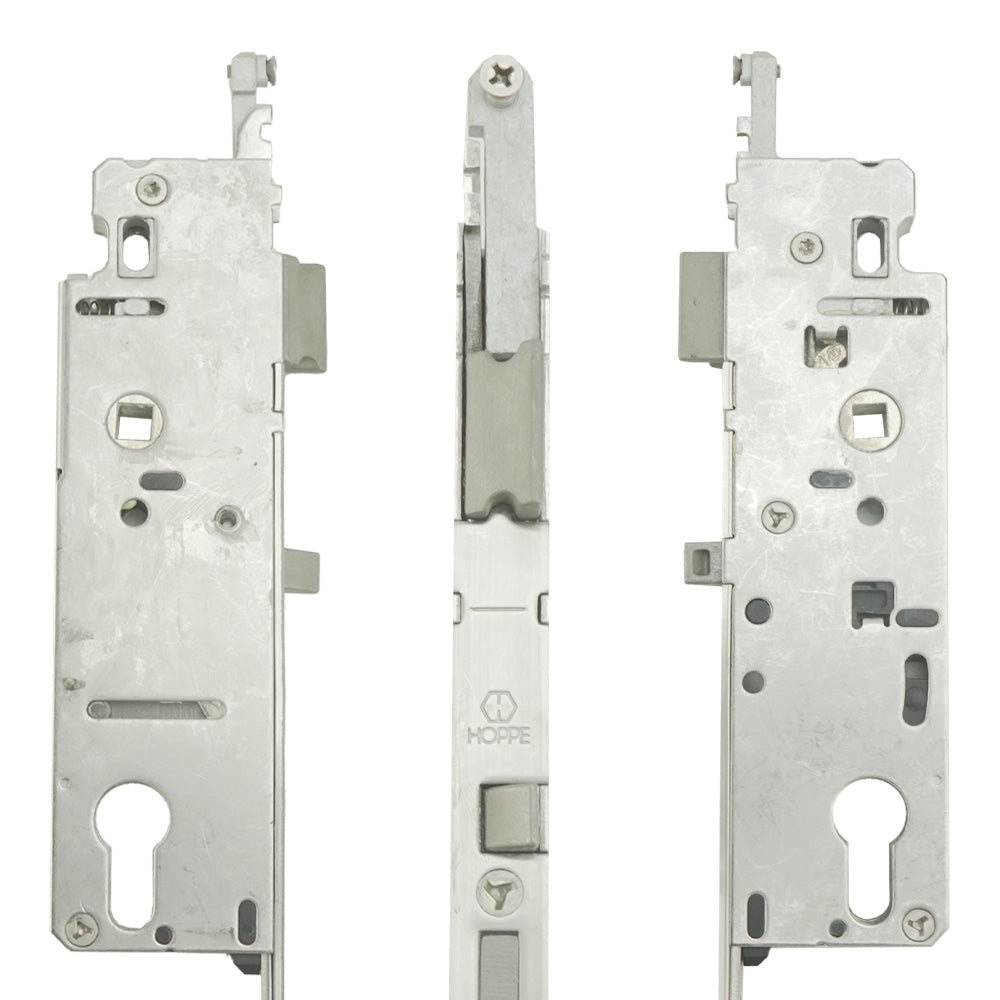

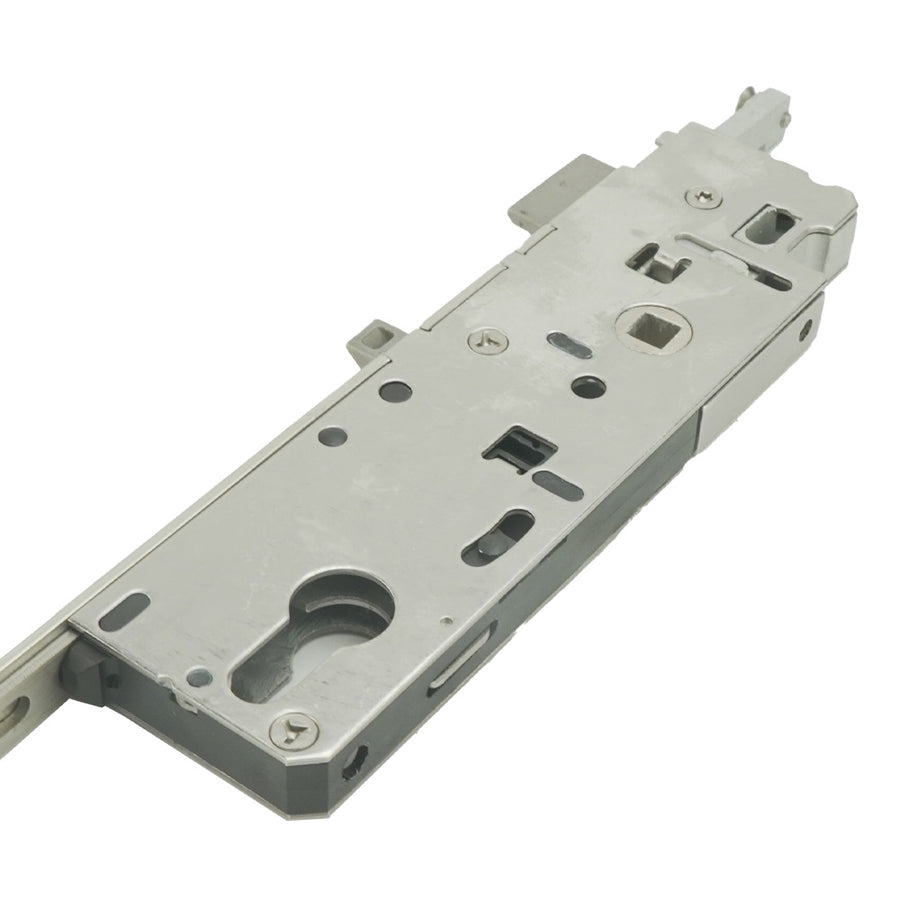

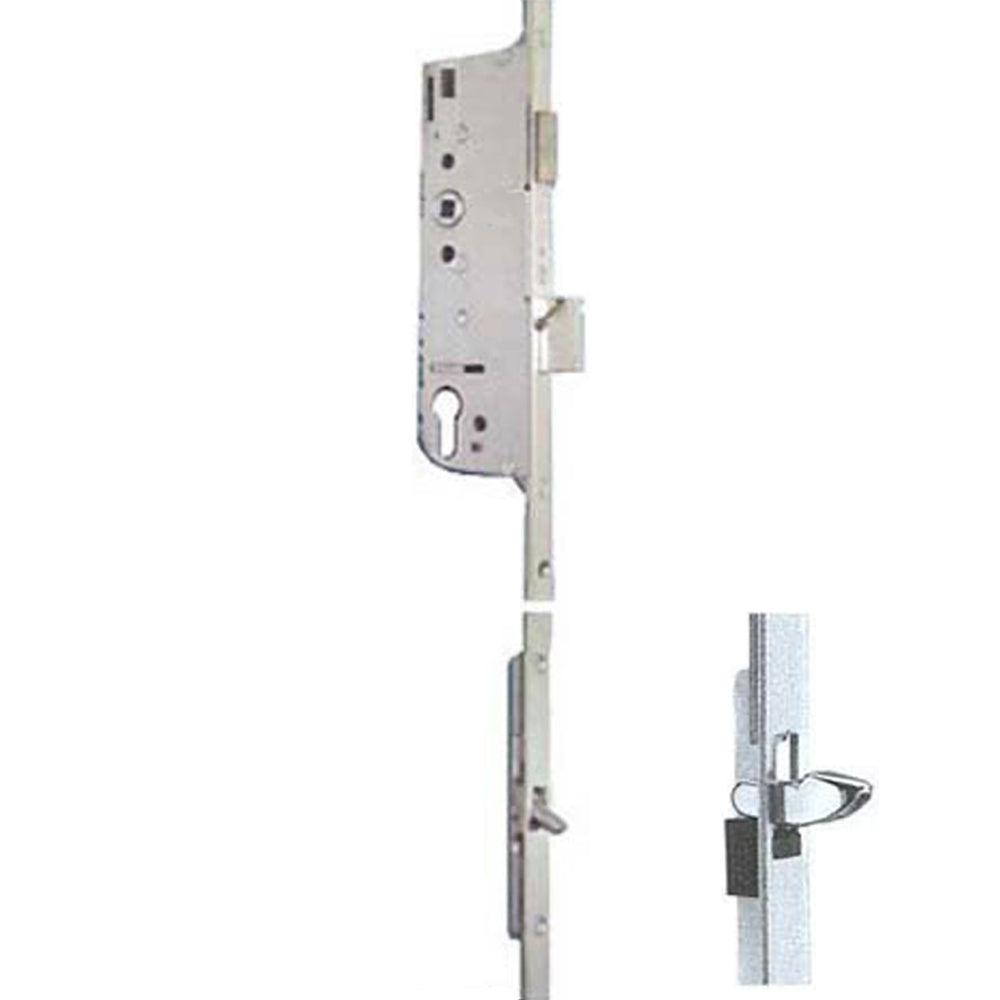

Hoppe Tongue Version /,Manual Gear, for Active Door.
5 screw installation

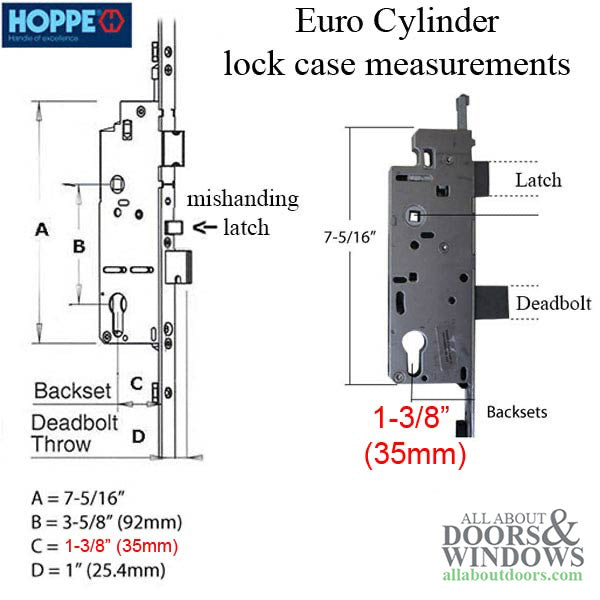

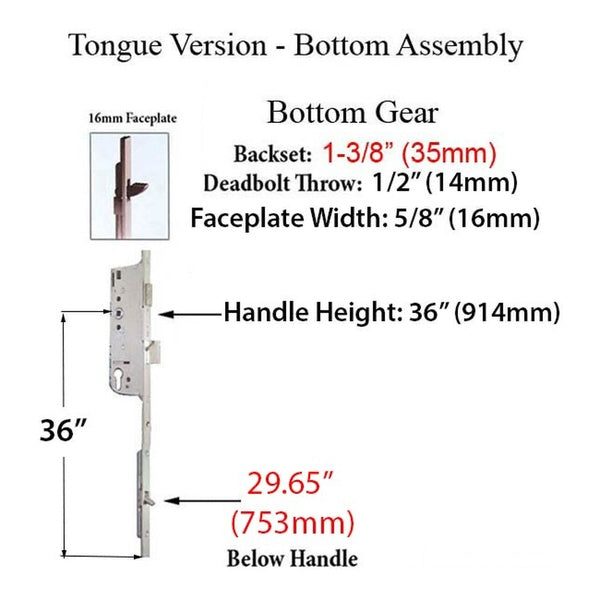

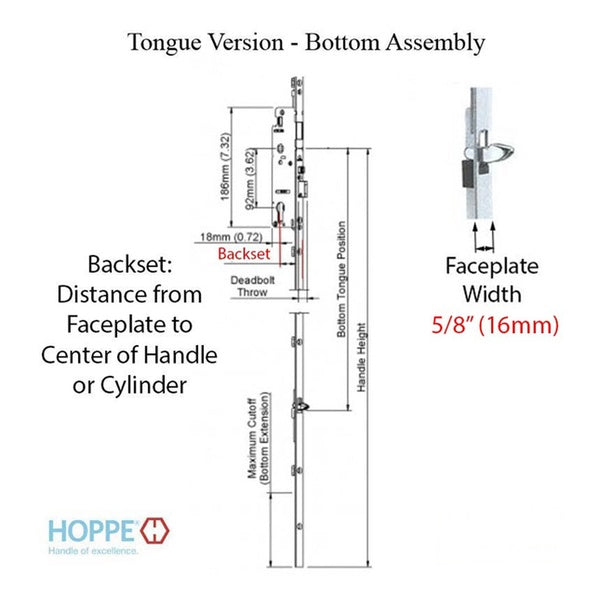

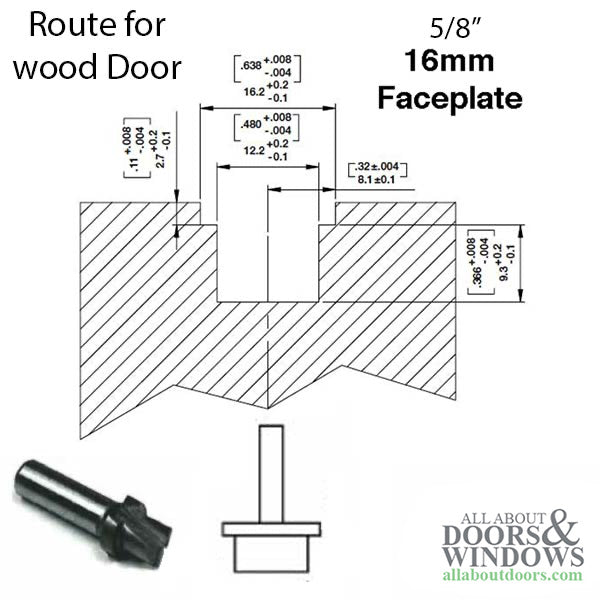

Faceplate: 5/8 inch (15.875mm)

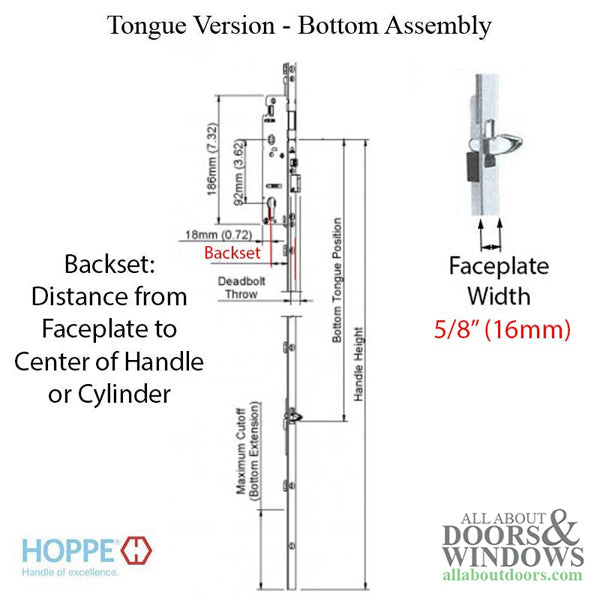

Backset: 1-3/8 inch (35mm)
Deadbolt Throw: 1 inch (25.4mm)

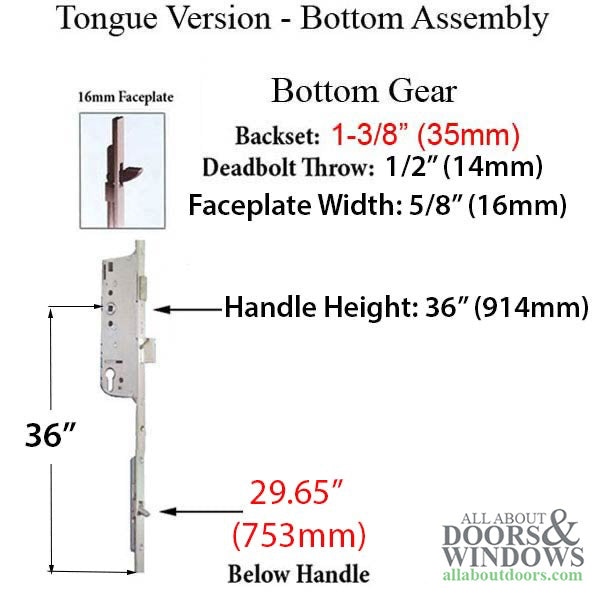

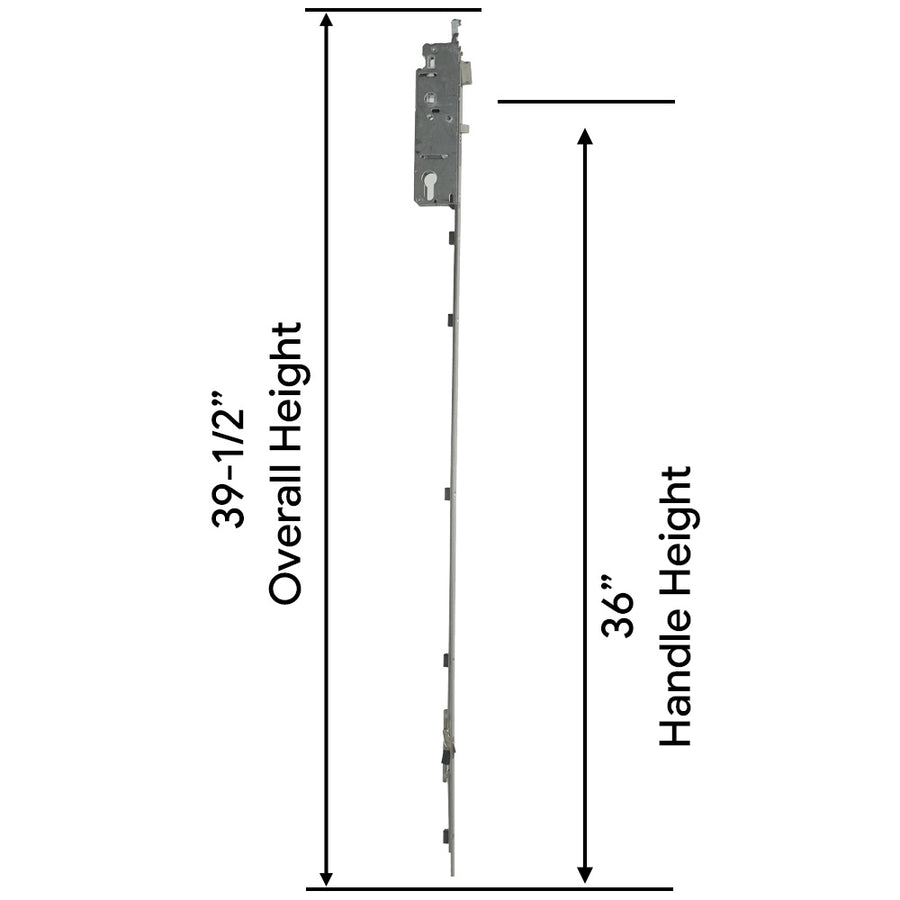

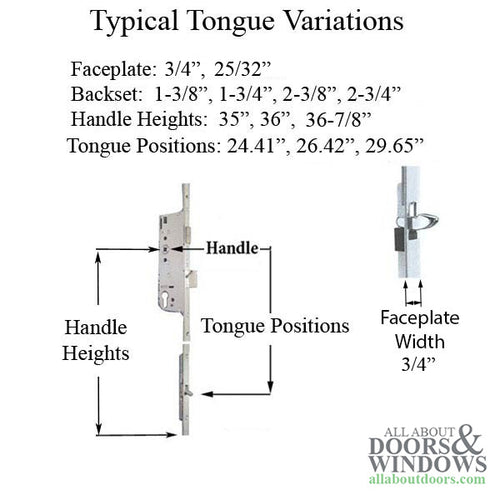

Handle Height: 36.00 inch (914mm)
Maximum Cutoff 1.18 inches.

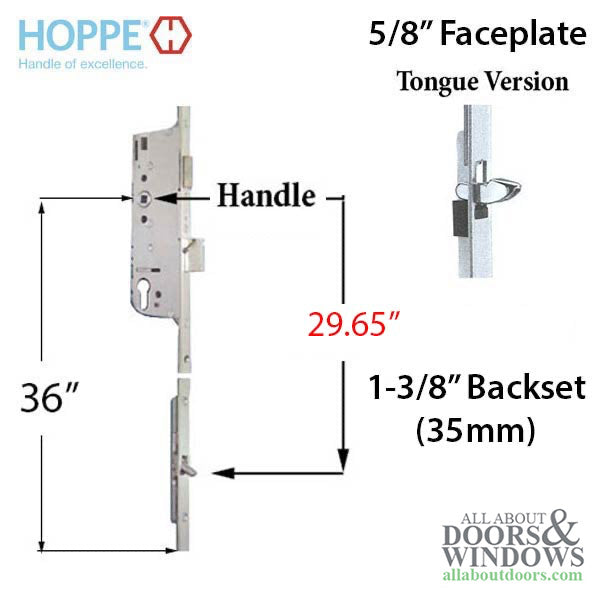

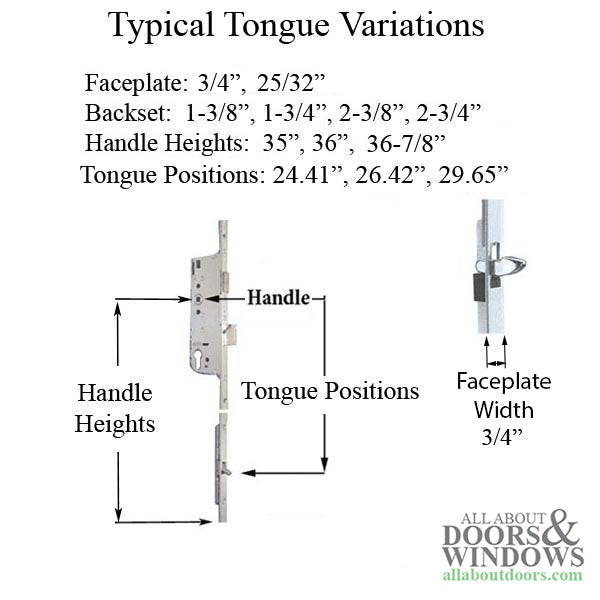

29.65 Tongue Position from center of handle,
To Change Handling / Reversing Latch:
Latch handing may be changed by pulling spring latch out and turned in the opposite direction and released. May need to use pliers.
Related Parts for Kolbe and Kolbe Doors:
8778143 - Bottom Gear, 16mm 35/92, Tongue @ 29.65"
8778563 - Top Extension for 93" door, tongue at 46.97"
5 screw installation

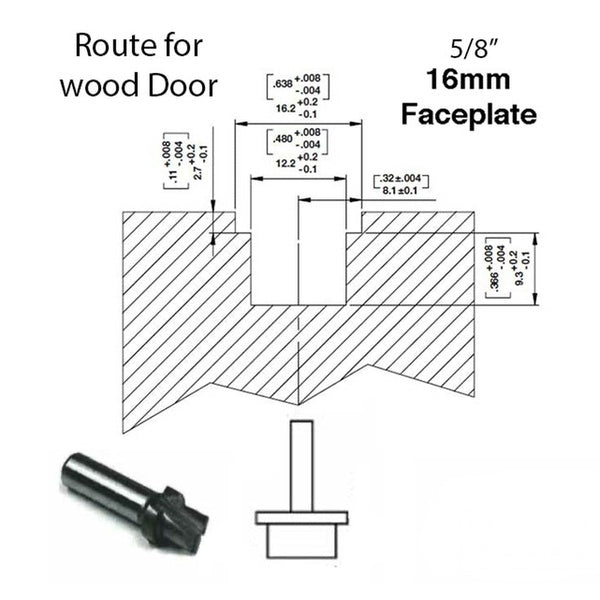

Faceplate: 5/8 inch (15.875mm)
Backset: 1-3/8 inch (35mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36.00 inch (914mm)
Maximum Cutoff 1.18 inches.
29.65 Tongue Position from center of handle,
To Change Handling / Reversing Latch:
Latch handing may be changed by pulling spring latch out and turned in the opposite direction and released. May need to use pliers.
Related Parts for Kolbe and Kolbe Doors:
8778143 - Bottom Gear, 16mm 35/92, Tongue @ 29.65"
8778563 - Top Extension for 93" door, tongue at 46.97"
