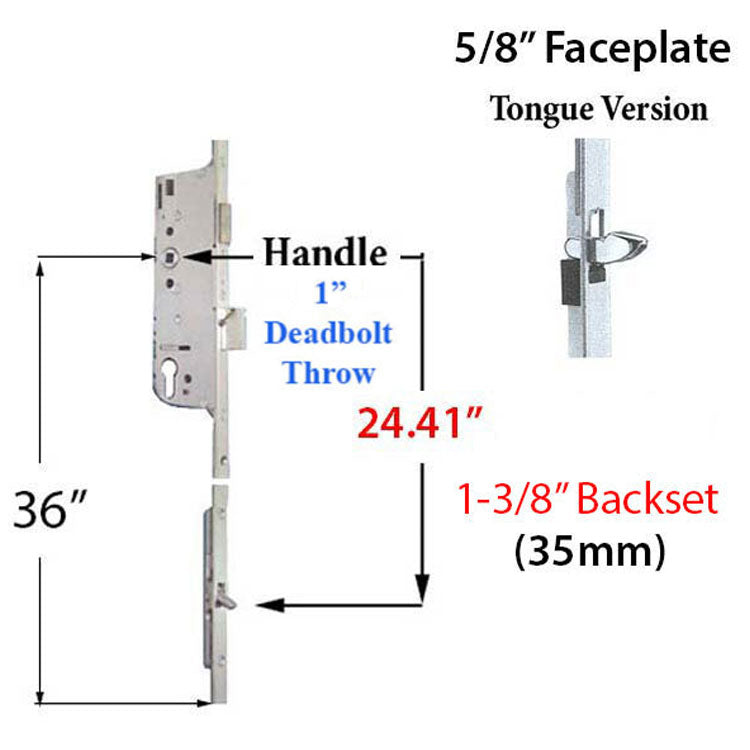

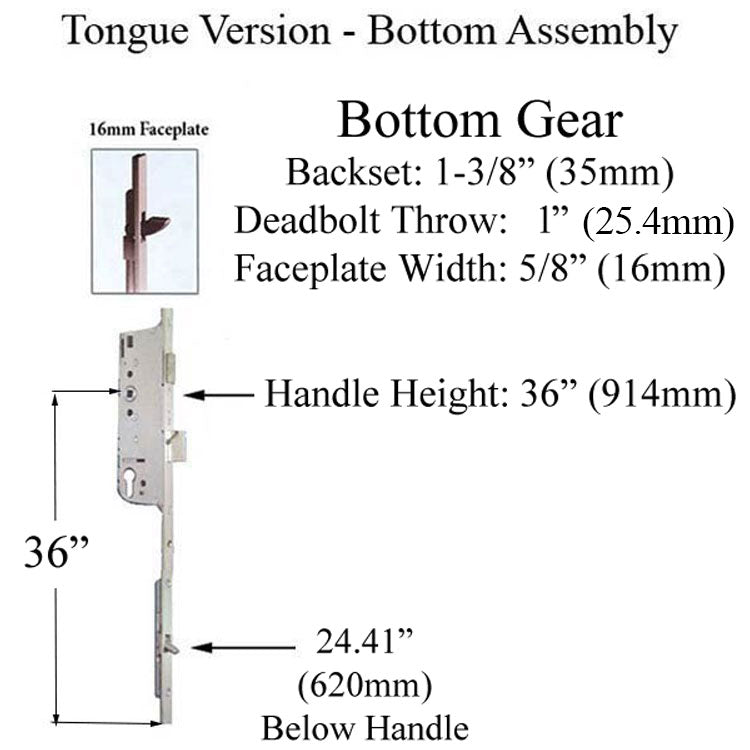

16mm Manual Gear, 35/92, Tongue @ 24.41", 1" D/B

Part Number: 2423904 Price: $187.11

Description
Additional Information

HLS 9000 Multipoint Lock Manual Gear, 90057 Tongue Version for Active Door. HOPPE Manual Tongue Version - 16mm Faceplate

Faceplate: .63 inch (16mm)

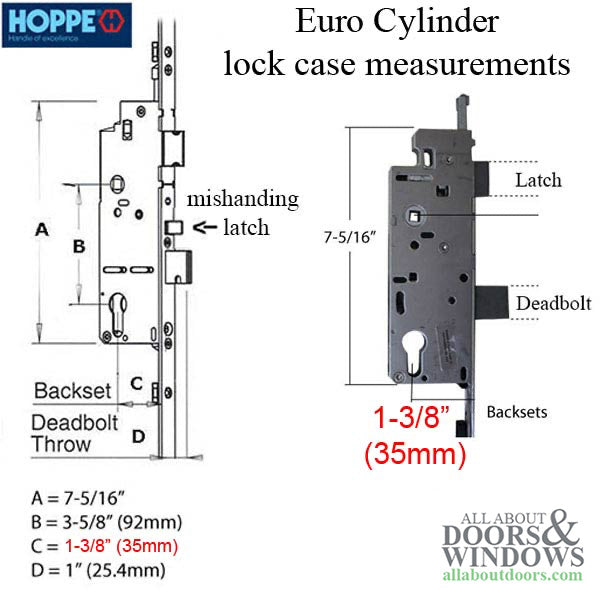

Backset: 1.375 inch (35mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36.00 inch (914mm)

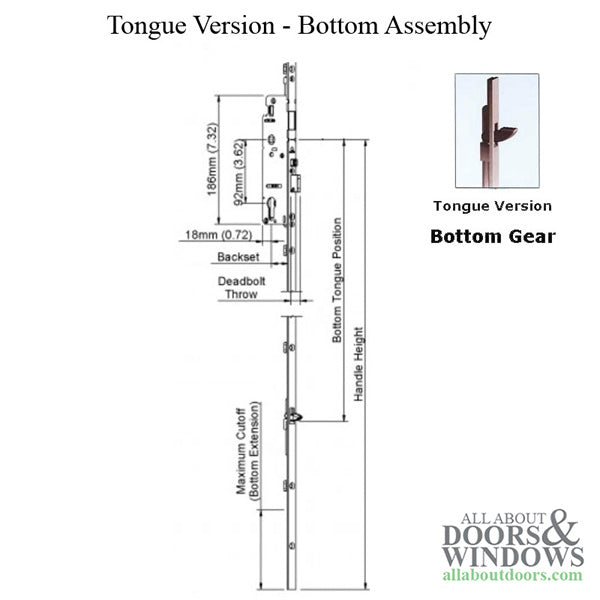

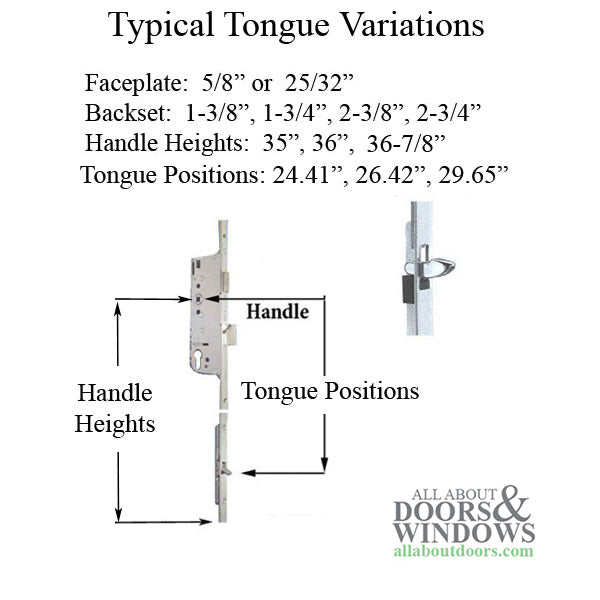

Bottom Tongue Position: 24.41 inches (620mm)
Maximum Cutoff: 6.30 inches (160mm)
Screw Holes: 6

Related Parts:
2423904 1-3/8 BS, 0.55 D/B, 24.41 Tongue Position
8779123 1-3/4 BS, 1.0 D/B, 24.41 Tongue Position

HLS 9000 Multipoint Lock <a href="https://www.allaboutdoors.com/lock-box-main-gear" target="_blank">Manual Gear,</a> 90057 <a href="https://www.allaboutdoors.com/multipoint-lock-locking-devices" target="_blank">Tongue Version</a> for Active Door. HOPPE Manual Tongue Version - 16mm Faceplate <a href="https://www.allaboutdoors.com/multipoint-lock-faceplate" target="_blank">Faceplate</a>: .63 inch (16mm) <a href="https://www.allaboutdoors.com/backset" target="_blank">Backset</a>: 1.375 inch (35mm) <a href="https://www.allaboutdoors.com/deadbolt-throw" target="_blank">Deadbolt Throw</a>: 1 inch (25.4mm) <a href="https://www.allaboutdoors.com/handle-height" target="_blank">Handle Height</a>:  36.00 inch (914mm) <a href="https://www.allaboutdoors.com/multipoint-locking-positions" target="_blank">Bottom Tongue Position</a>:  24.41 inches (620mm) Maximum Cutoff: 6.30 inches (160mm) Screw Holes: 6  Related Parts: 2423904   1-3/8 BS,  0.55 D/B,  24.41 Tongue Position <a href="https://www.allaboutdoors.com/16mm-Manual-Tongue-45-92-Gear-Tongue-24-41-Inch">8779123</a>   1-3/4 BS,  1.0   D/B,  24.41 Tongue Position
