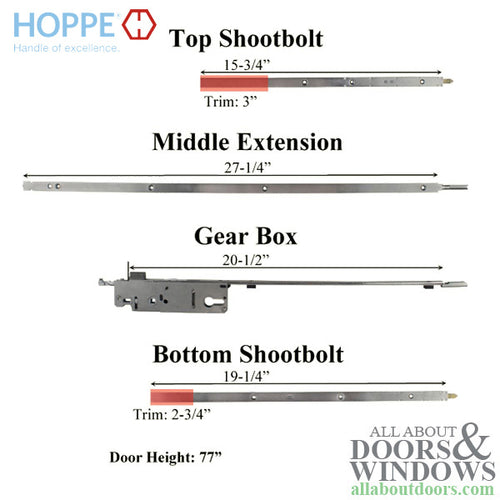

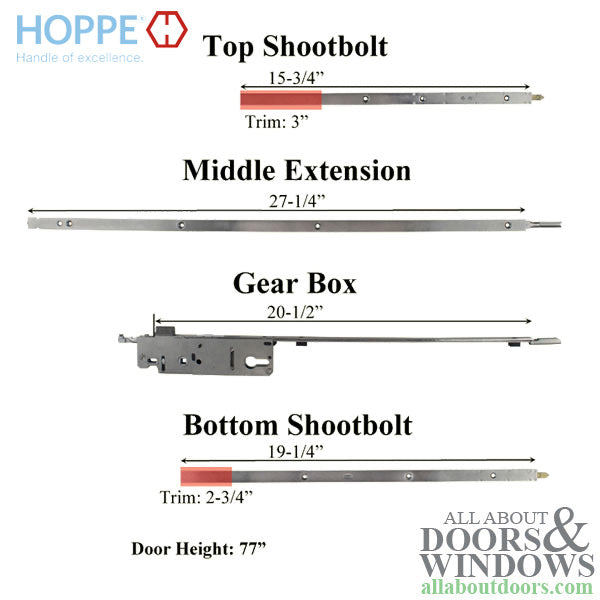

Hoppe's 2-piece bottom shootbolt gear with adjustable handle height

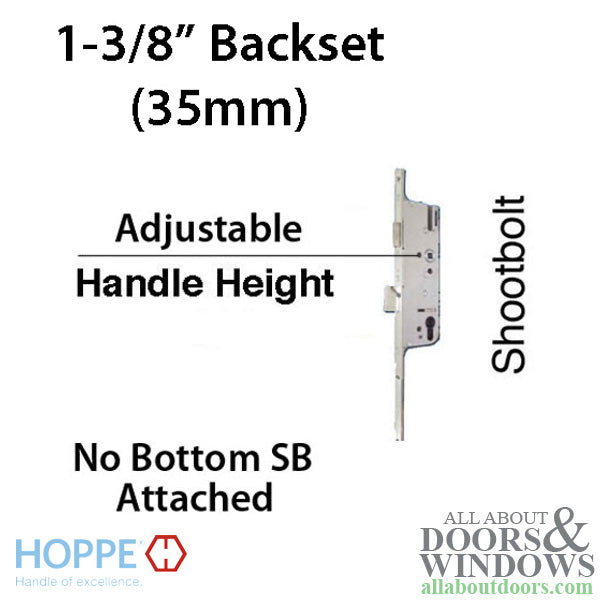

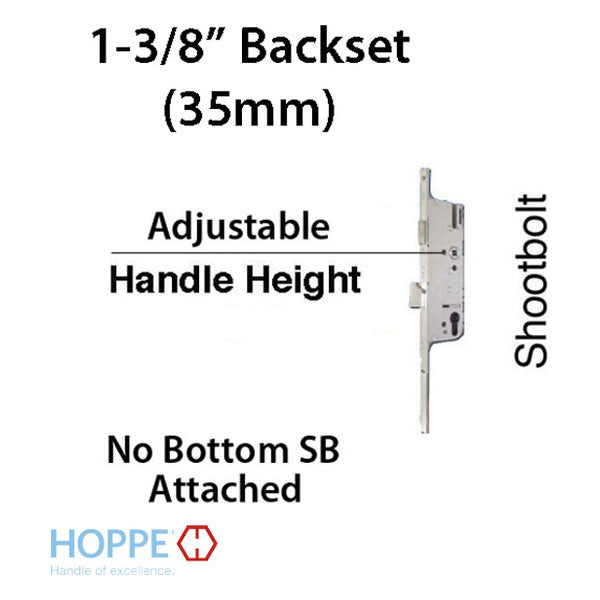

The gear does NOT include the bottom Shootbolt -
Use the TOP extension from the INACTIVE gear page to obtain the desired handle height.
Function: Active Gear, Shootbolt 25mm throw
Faceplate Width: 5/8 inch ( 16mm)
Backset: 1-3/8 inch (35mm)
Deadbolt Throw: 1 inch (25mm) ( Not Available in 1/2" Throw )
Related Hoppe Hardware with Adjustable Handle Heights
8786975 - Most Common Lower Shootbolt Extension 34.25"-38.19" handle heights

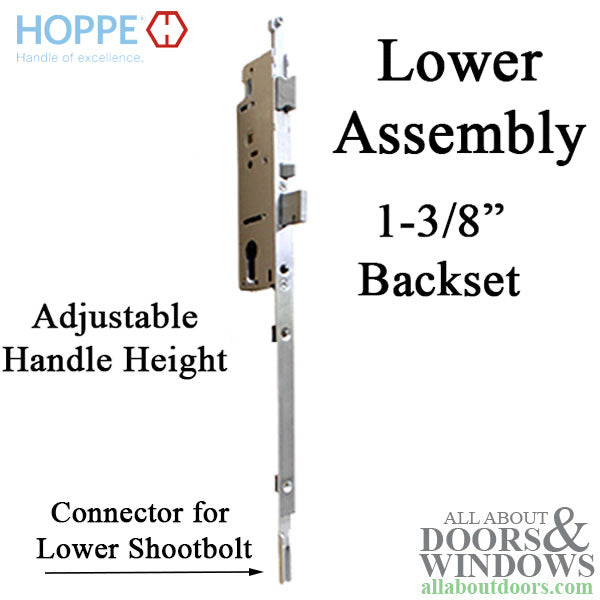

3664566 - Active, 35mm Lower Assembly
