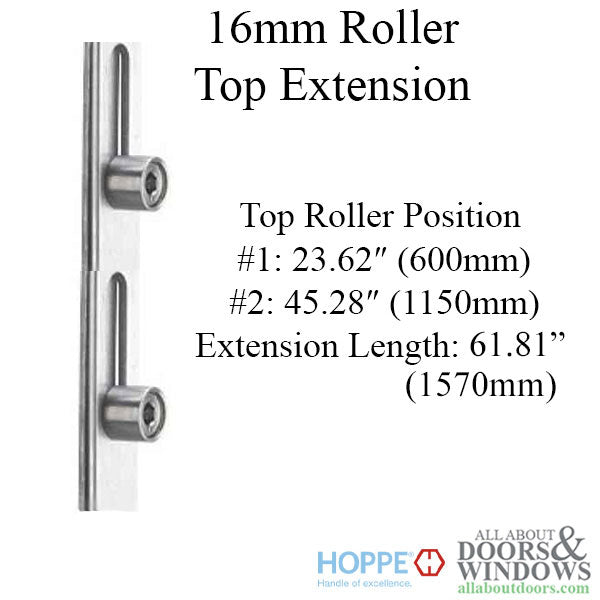

16mm Manual 4 Roller Top Extension, Rollers at 23.62 and 45.28 Inch, 61.81 Inch
Part Number: 8778863 Price: $62.96Top Extension for Manual Four Roller Version. 5/8 inch (16mm) Face plate - Stainless Steel
Overall Length with 36 inch handle height: 84.45-99.41 Inches.
Extension Length: 61.81 inches
Handle to top of door: 63.43 inches
Top Roller #1 Position: 23.62 inches
Top Roller #2 Position: 45.28 inches
Max Cut Off: 14.96
Number of Screws: 10
Roller Measurements: From center of handle - 92.5" door
1st Automatic roller cam above handle 7-1/4 (184mm)
2nd locking roller above handle 13-1/8 (333mm)
1st Locking roller below handle 13-7/8 (352mm)
2nd Locking roller below handle 29-3/8 (746mm)
Overall Length with 36 inch handle height: 84.45-99.41 Inches.
Extension Length: 61.81 inches
Handle to top of door: 63.43 inches
Top Roller #1 Position: 23.62 inches
Top Roller #2 Position: 45.28 inches
Max Cut Off: 14.96
Number of Screws: 10
Roller Measurements: From center of handle - 92.5" door
1st Automatic roller cam above handle 7-1/4 (184mm)
2nd locking roller above handle 13-1/8 (333mm)
1st Locking roller below handle 13-7/8 (352mm)
2nd Locking roller below handle 29-3/8 (746mm)
