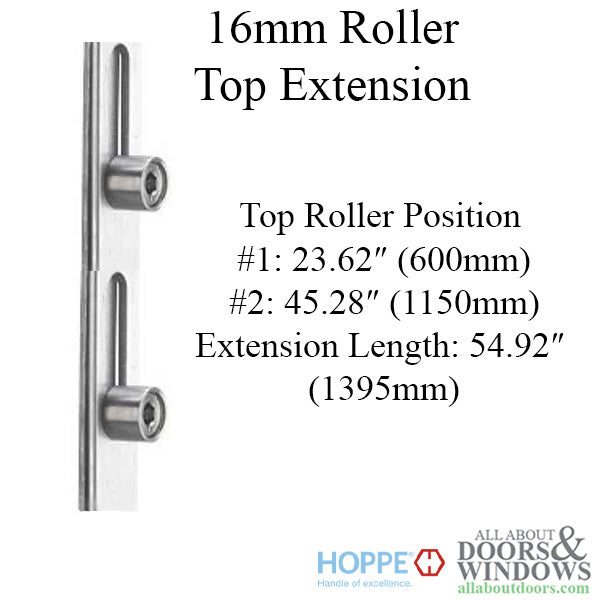

16mm Manual 4 Roller Top Extension, Rollers @ 23.62 and 45.28", 54.92" Length
Part Number: 8778859 Price: $71.9516 mm Manual 4 Roller Top Extension, Rollers @ 23.62 and 45.28’

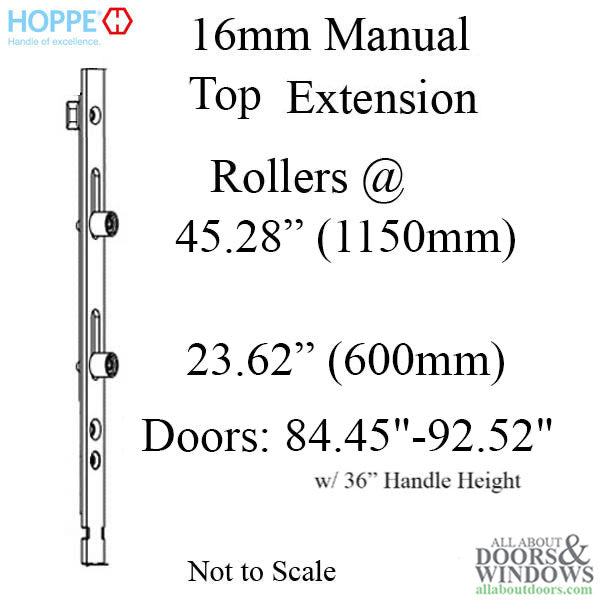

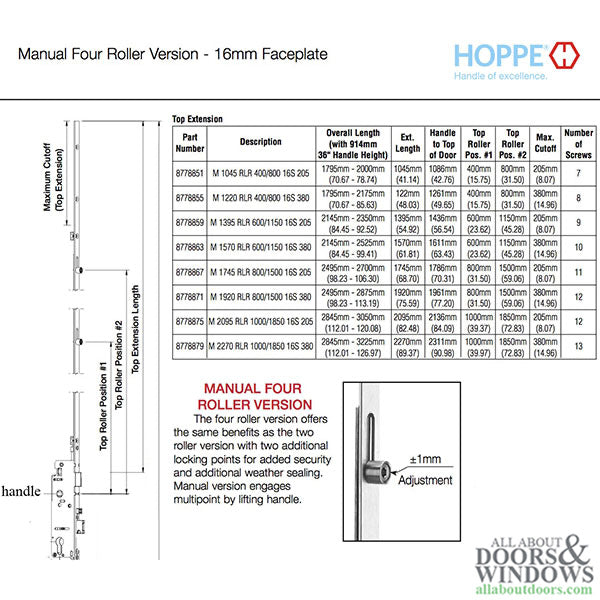

Hoppe Manual 4 Roller Top Extension 16mm Faceplate
Version: Manual Four Roller
Faceplate: 5/8 inch (16mm)

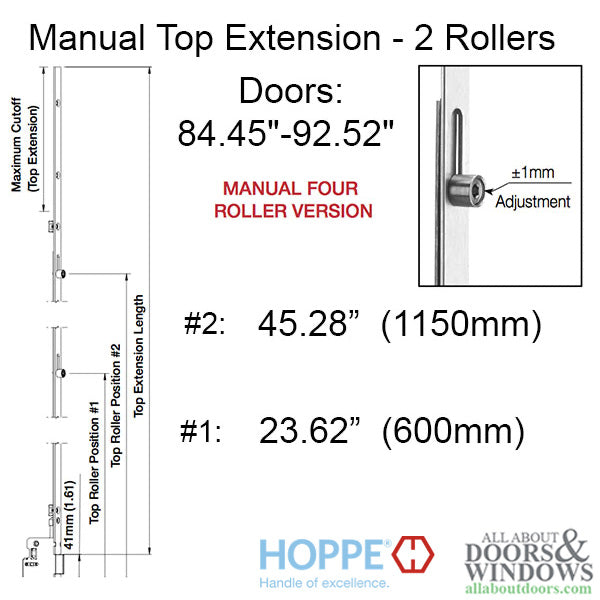

Overall Panel Length w/ 36 inch HH: 84.45"-92.52" (2145mm - 2350mm)
Extension Length: 54.92 inches (1395mm)
Top Roller #1: 23.62 inches (600mm)
Top Roller #2: 45.28 inches (1150mm)
Maximum Cutoff: 8.07 inches ( 205mm)
Number of screws: 9
To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms
If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
