16 mm Manual Shootbolt Gear, Hoppe 45/92mm, 36 Inch Handle Height - SS

Part Number: 8778331 Price: $114.32

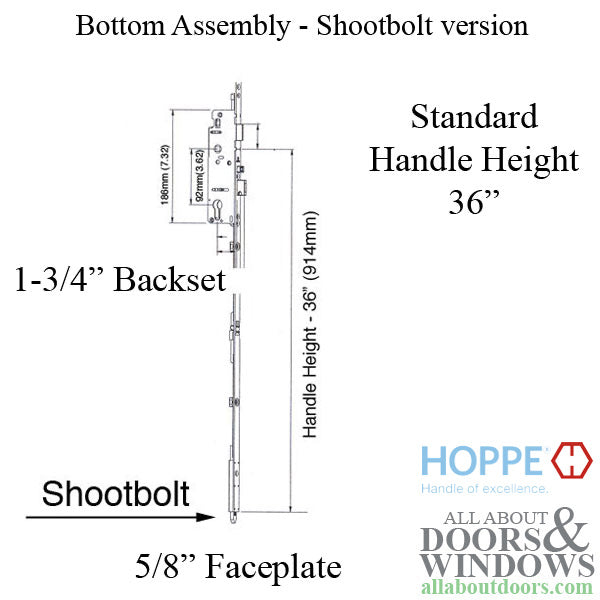

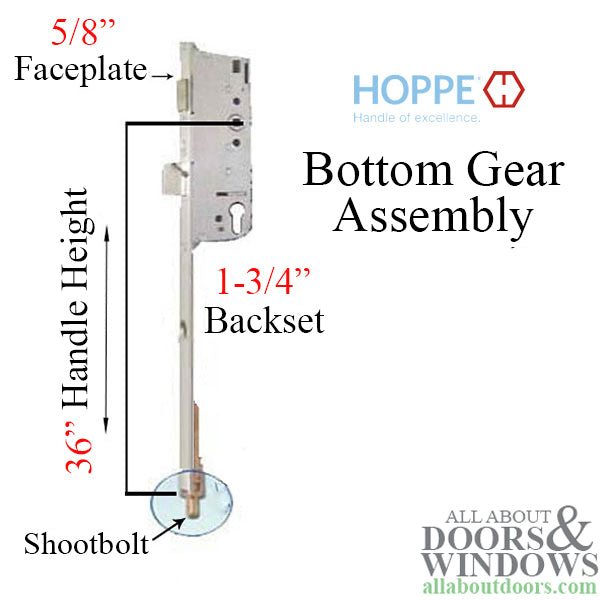

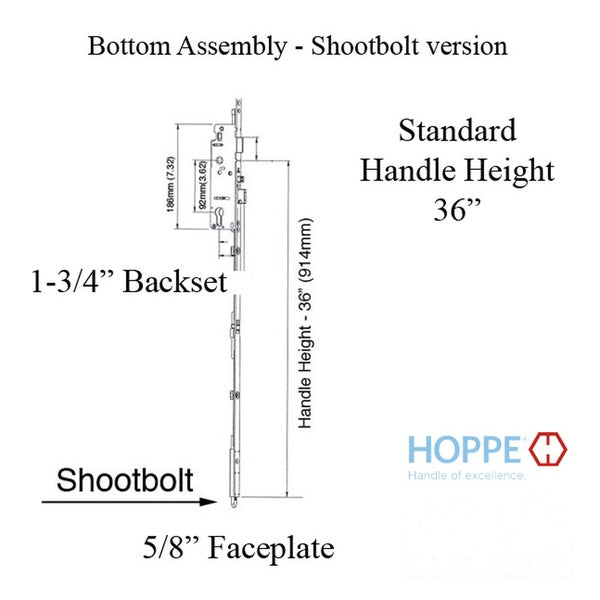

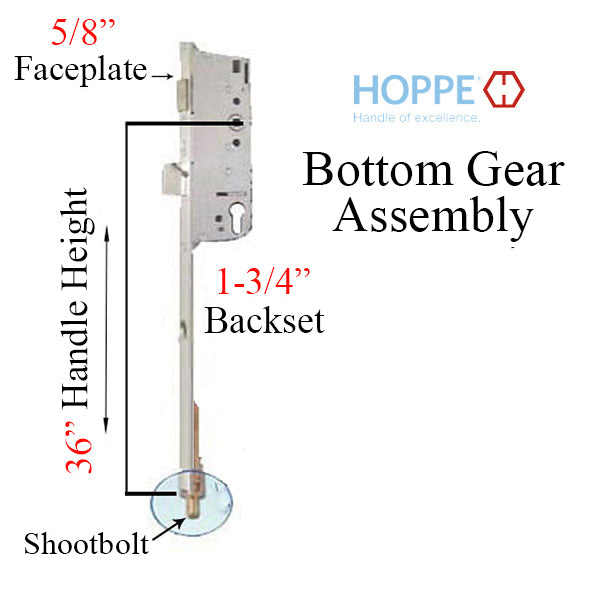

Hoppe 16mm Faceplate Bottom Gear, HLS9000 Shootbolt Version, Manual Locking for Active Door.
Function: Manual Locking, lift handle to engage shootbolts, turn thumb turn or key to secure in locked position

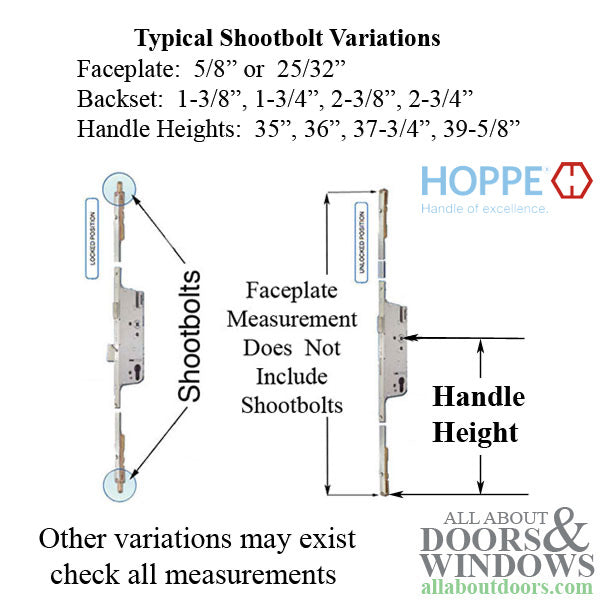

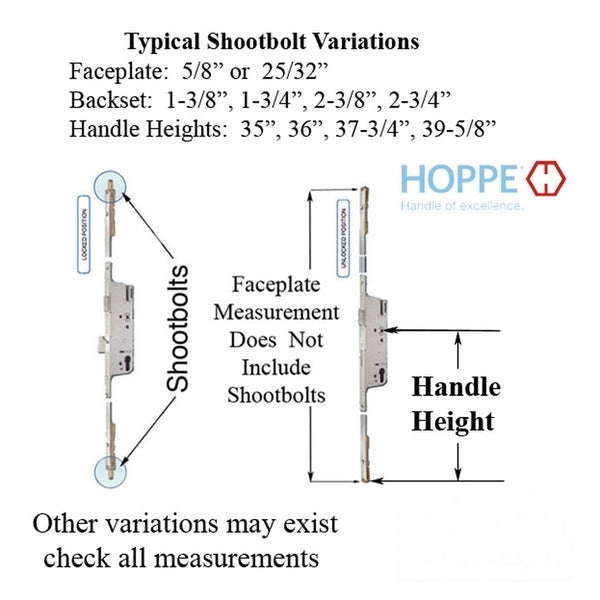

Version: Manual Shootbolt, vertical locking bolt
Faceplate Width: 5/8" (16mm)

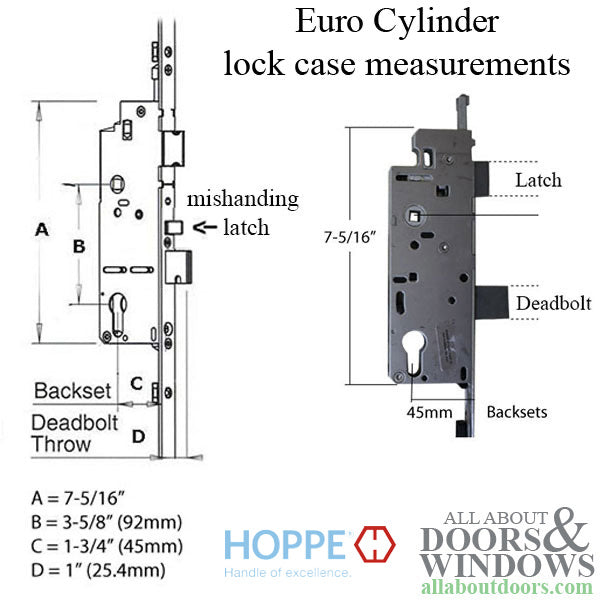

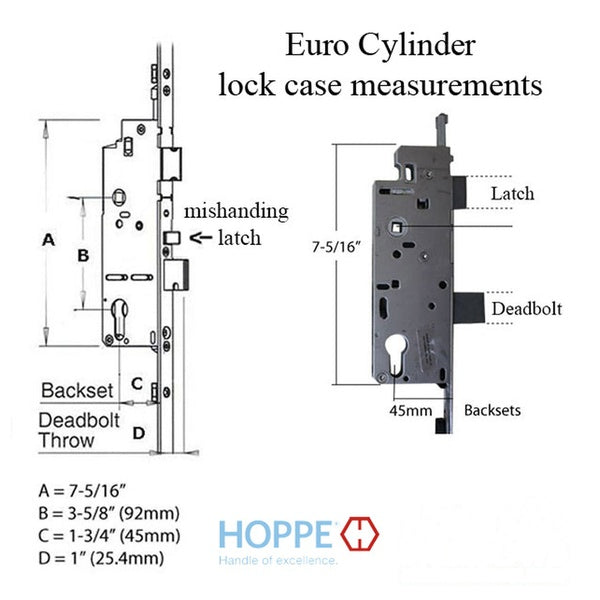

Backset: 1.77" (45mm)
Shootbolt Throw: 3/4" ( 20mm)
Deadbolt Throw: 1" (25mm)
Handle Height: 36" (914mm)
Handing: reversible for left or right hand doors - just pull the spring latch out and rotate, If needed
Max. Cutoff: N/A
Number of Screws: 6

Includes: As Shown, Bottom assembly only, does not include additional extensions or other components.

NOTE: This is for the 36 inch HH, IF 35 inch handle height is needed, order bottom gear 8787107
Hoppe 16mm Faceplate&nbsp;<a href="https://www.allaboutdoors.com/lock-box-main-gear" target="_blank">Bottom Gear</a>, HLS9000&nbsp;<a href="https://www.allaboutdoors.com/multipoint-lock-locking-devices" target="_blank">Shootbolt Version</a>, Manual Locking for Active Door.&nbsp;<BR>
Function: Manual Locking, lift handle to engage shootbolts, turn thumb turn or key to secure in locked position<br>
<br>
Version: Manual Shootbolt, vertical locking bolt<br><a href="https://www.allaboutdoors.com/multipoint-lock-faceplate" target="_blank">Faceplate</a>&nbsp;Width: 5/8" (16mm)<br><a href="https://www.allaboutdoors.com/backset" target="_blank">Backset</a>: 1.77" (45mm)<br><a href="https://www.allaboutdoors.com/multipoint-lock-locking-devices" target="_blank">Shootbolt</a>&nbsp;Throw: 3/4" ( 20mm)<br><a href="https://www.allaboutdoors.com/deadbolt-throw" target="_blank">Deadbolt</a>&nbsp;Throw: 1" (25mm)<br><a href="https://www.allaboutdoors.com/handle-height" target="_blank">Handle Height</a>: 36" (914mm)<br>
Handing: reversible for left or right hand doors - just pull the spring latch out and rotate, If needed<br>
Max. Cutoff: N/A<br>
Number of Screws: 6<br>
<br>
Includes: As Shown, Bottom assembly only, does not include additional extensions or other components.<br>
<br><b>
NOTE:</b> This is for the 36 inch HH, IF 35 inch handle height is needed, order bottom gear&nbsp;<a href="https://www.allaboutdoors.com/16mm-Manual-Gear-45-92-Shootbolt-1-Deadbolt-35_-Handle-Height" target="_blank">8787107</a>
