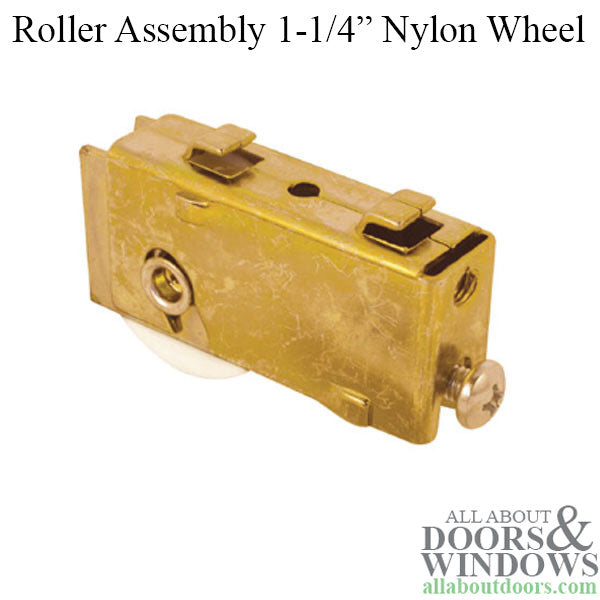

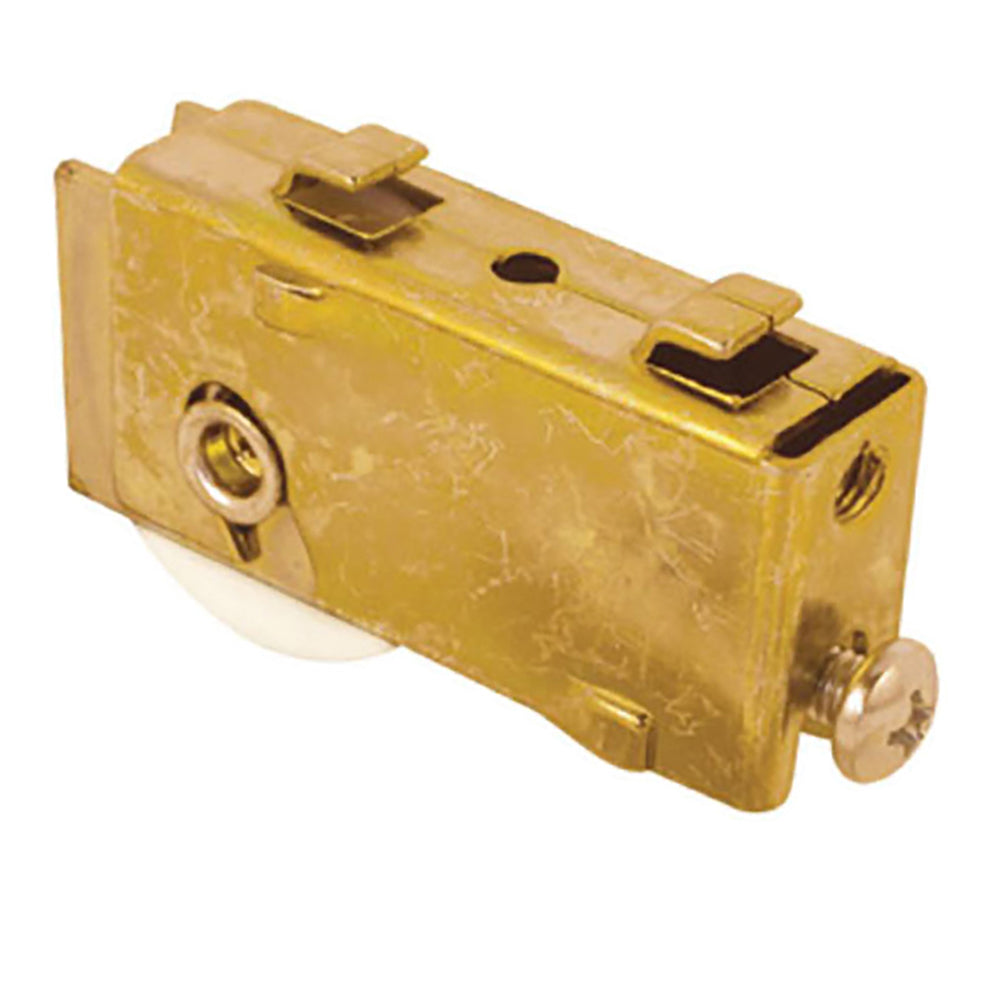

1-1/4 Nylon wheel, Roller Assembly

Part Number: 13101 Price: $11.77

Adjustable roller fits Smith Cary / regal doors
Need to drill 2 holes in top of rail for the tabs to fit into.
The Adj. Screw hole becomes the frame screw and vice versa

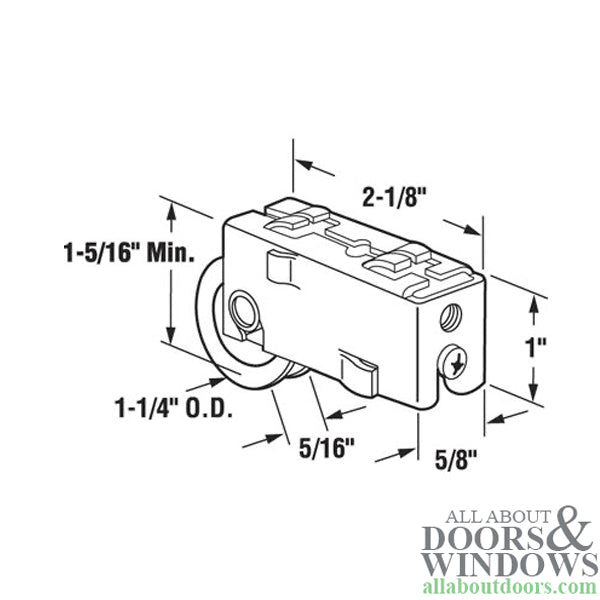

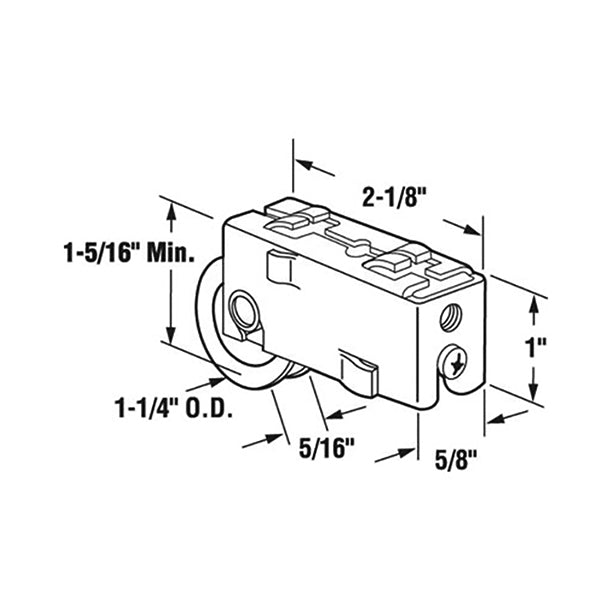

Diameter: 1-1/4-inch
Housing Tab Style: Plain Back
Housing Width: 5/8-inch
Material: Nylon
Roller Diameter: 1-1/4-inch
Roller Edge Type: Concave
Roller Material: Nylon
Roller Width: 5/8-inch
Type: Concave
Width: 5/8-inch

Sold each, priced each

Related items:
13171 -1 1/4 inch steel wheel, 13/16 width
13313 - 1-1/4 Steel Wheel
13008 - 1-1/8 Steel Wheel
